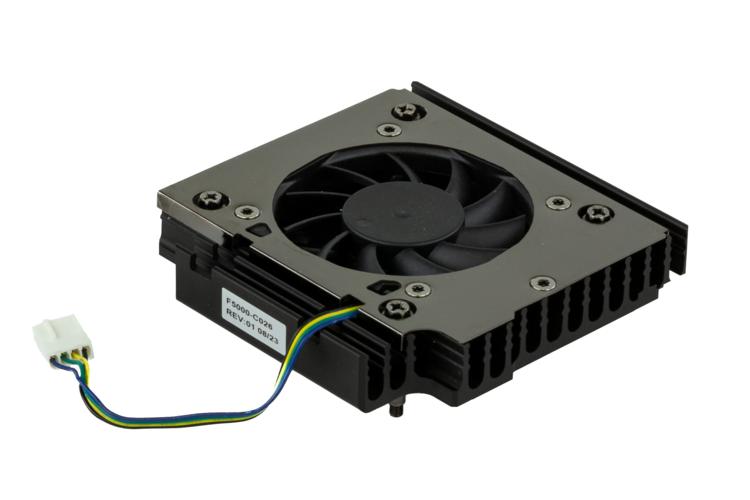

    Active cooler Intel SoC

    Catalog number: F5000-C026

    Active cooler for Intel SoC

    F5000-C026
    For K39xx
    max 15W TDP

    Datasheet
    on request
    Inquiry

    Active heatsink for motherboards K39xx

    • Designed for the Intel® Processor and Core™ i3 Alderlake-N series
    • Full aluminium
    • Max. 15 W TDP
    • Spring-loaded mounting screws for specified downforce
    • Weight: ~ 200g (cooler) + 21 g (backplate)

    TECHNICAL INFORMATION

    • RECOMMENDED MOUNTING SCREW TORQUE: max. 0.8 Nm
    • Metal backplate, provides 4 mounting threads for heatsink
    • BACKPLATE MOUNTING HOLES: M3; hole spacing = 61.5 mm x 61.5 mm
