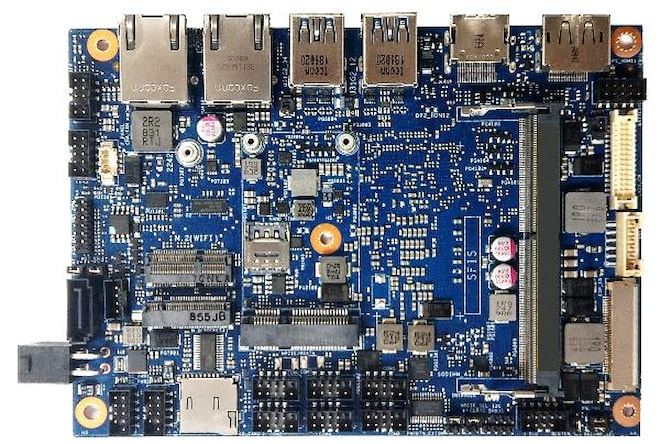

ASUS E393S-IM-AA

Catalog number: E393S-IM-AA

E393S-IM-AA

3.5" form factor
SoC Intel Atom x5-E3930
6xCOM, HDMI, DP, 2xLAN
Wide temp -40~85°C

Datasheet
on request
Inquiry

Product parameters

Manufacturer ASUS
Video output HDMI, DisplayPort, LVDS
SATA 1x
Software support Linux, Windows
Audio Audio output
Memory type M.2 SSD PCIe, Key-M, M.2 PCIe, Key-E, Mini PCIe
Power Input DC 12-24V
Operating temperature -40~85°C
Size (L x W x H) 146 x 105mm
Market Industrial
Form Factor 3.5"
Power Input DC 12-24V
Processor Intel Atom® x5-E3930 Processor (SoC), 1.3GHz Dual-Core, 2MB cache
PCIe/mPCIe/PCI 1x Mini PCIe with Nano-SIM socket, 1x M.2 2230
LAN/USB/COM 2x RJ45, 4x USB 3.1 Gen1, 2x USB 2.0 onboard support, 6x COM header
Interface 1x SATA 6Gb/s, 1x M.2 2242 (SATA mode), 1x Micro SD slot onboard
Size 146 x 105 mm
Operating temperature -40 ~ +85°C
Memory type DDR3-1866
DDR SO-DIMM

Chipset:

  • Integrated

Processor:

  • Intel Atom® x5-E3930 Processor (SoC), 1.3GHz Dual-Core (Burst 1.8GHz), 2MB cache
  • Intel® HD Graphics 500
  • TDP 6.5W

Memory:

  • DDR3L 1866MHz

  • 1x SO-DIMM socket, max. 8GB memory

Product features:

  • Up to 6 COM ports, includes 2x RS-232/422/485
  • Supports 2 display configuration by multiple interface: DP/HDMI/LVDS
  • Supports I2C, SMBus and DIO
  • Wide temperature range endurance: -40~85°C
