ASUS PE100A

Catalog number: PE100A

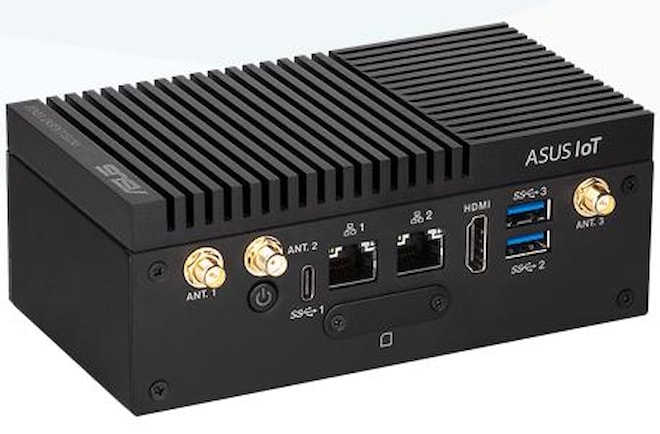

ASUS PE100A is a small fanless PC. This ASUS is used in Edge computing and many other industrial solutions.

NXP i.MX 8M ARM Cortex-A53 core, 4GB LPDDR4, 16G eMMC, HDMI, Dual LAN, 1x M.2 2230 E-key socket, 1x Mini-PCIe socket, 1x Nano-SIM Card Slot, 3x USB 3.2 Gen1
Fanless PC, WideTemp -20~+60°C

Datasheet
on request
Inquiry

Product parameters

Manufacturer ASUS
Video output HDMI
Software support Linux
Memory type M.2 PCIe, Key-E, Mini PCIe
Power Input DC 12-24V
Operating temperature -20°C~60°C
Size (L x W x H) 55,5 x 145 x 78mm
Market Industrial
Form Factor 3.5"
Power Input DC 12-24V
Processor NPX i.MX 8M ARM Cortex-A53 Quad Core, 1.3 GHz
PCIe/mPCIe/PCI 1 x mPCIe socket*, M.2 E key*
LAN/USB/COM 2x RJ45, 1x Realtek RTL8211, 1x Intel I211-At, 2x USB 3.2 Gen1, 1x USB 3.2 Gen.1 (supports OTG, Type-c), 2x COM
Video input 1 x HDMI 2.0 (supports up to 3840 x 2160 @60Hz)
Size 55.5 x 145 x 78 mm
Operating temperature -20 ~ +60°C
Memory type DDR4 Onboard

Chipset:

  • Integrated

Processor:

  • NXP i.MX 8M ARM Cortex-A53 Quad Core, 1.3 GHz

Memory:

  • 4 GB LPDDR4 onboard

  • OS Storage - 16 GB eMMC onboard

Expansion slot:

  • 1x mPCIe socket (supports SATA/USB signal for mSATA/LTE/Google TPU module)*
  • 1x M.2 2230 E-key socket (supports PCIe or USB signal for Wi-Fi/BT)*

Product features:

  • Certified with RF Regulation: CE-RED
  • 16GB on board eMMC, Mini PCIe slot for storage capacity
  • Compact size gateway with low power consumption and scalable processor for diverse IoT applications
  • Support Linux Yocto OS and Ubuntu server
  • Wide Operating Temperature Range: -20 to +60C
