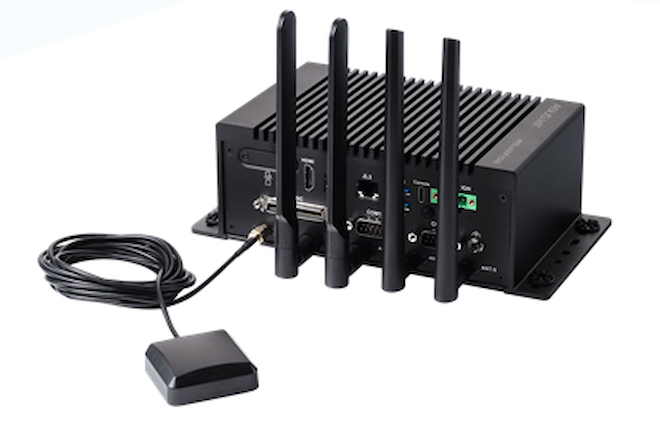

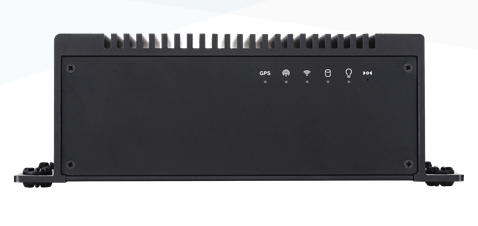

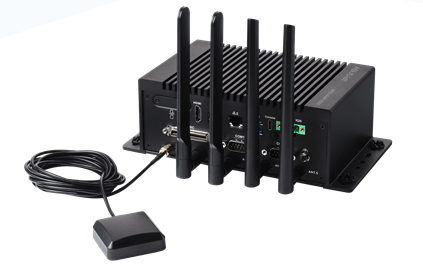

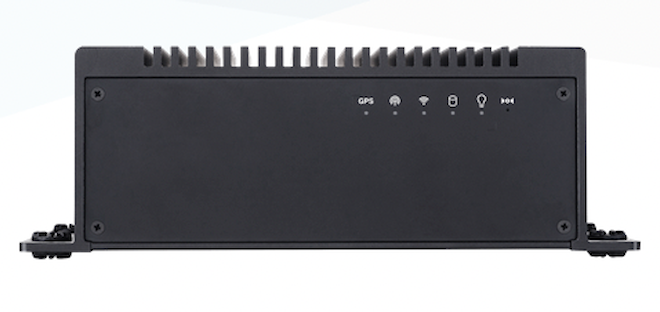

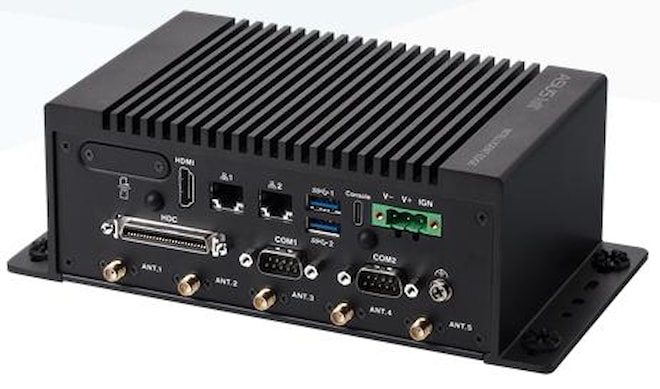

ASUS PV100A

Catalog number: PV100A

ASUS PV100A is a industrial fanless PC. This ASUS is used in Edge computing and many other industrial solutions.

NXP i.MX 8M Arm Cortex-A53 Quad Core In-vehicle Fanless Embedded Computer
Fanless PC
WideTemp -20~+60°C

Datasheet
on request
Inquiry

Product parameters

Manufacturer ASUS
Video output HDMI
Software support Linux
Audio Microfone input, Audio output
Memory type M.2 PCIe, Key-B, M.2 PCIe, Key-E, Mini PCIe, mSATA
Power Input DC 9-36V
Operating temperature -20°C~60°C
Size (L x W x H) 216 x 112 x 70,5mm
Market Industrial
Form Factor 3.5"
Power Input DC 12-24V
Processor i.MX8M, 4 x Cortex-A53 Quad Core, 1.3 GHz
PCIe/mPCIe/PCI 1x Mini PCIe*, 1x M.2 B Key*, M.2 E Key*
LAN/USB/COM 2x RJ45, 2x USB 3.2 Gen1, 1x USB 3.2 Gen.1 (supports OTG, Type-c), 2x COM
Video input 1x HDMI 2.0
Interface 1x Micro SD Card slot (on-board), 1x mSATA slot (shared with Mini PCIe socket)
Size 216 x 112 x 70.5 mm
Operating temperature -20 ~ +60°C
Memory type DDR4 Onboard

Chipset:

  • Integrated

Processor:

  • i.MX8M, 4x Cortex-A53 Quad Core, 1.3 GHz

Memory:

  • 2 GB DDR4 onboard

  • OS Storage - 16 GB eMMC onboard

Expansion slot:

  • 1x Mini PCIe socket (supports SATA, PCIe, USB signal, supports mSATA up to 512 GB)*
  • 1x M.2 2242 B-key socket (supports UDR GPS module)*
  • 1x M.2 2230 E-key socket (supports BT/Wi-Fi module)*

Product features:

  • Integrated 4G LTE, Wi-Fi and GPS solution
  • Intelligent Vehicle Power Management: ignition On/Off delay
  • Vehicle diagnostic interface support: dual CAN (2.0 A/B, CANOpen, J1939, OBD-II)
  • Wide-operating temperature with integrated 4G LTE + Wi-Fi + GPS solution: -20 to +60C
