ASUS Q370M-IM-A

Catalog number: Q370M-IM-A

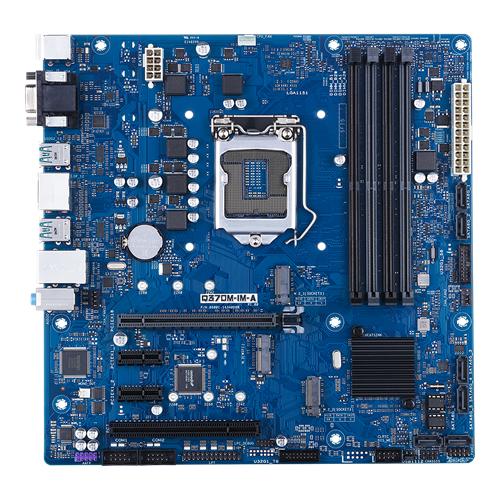

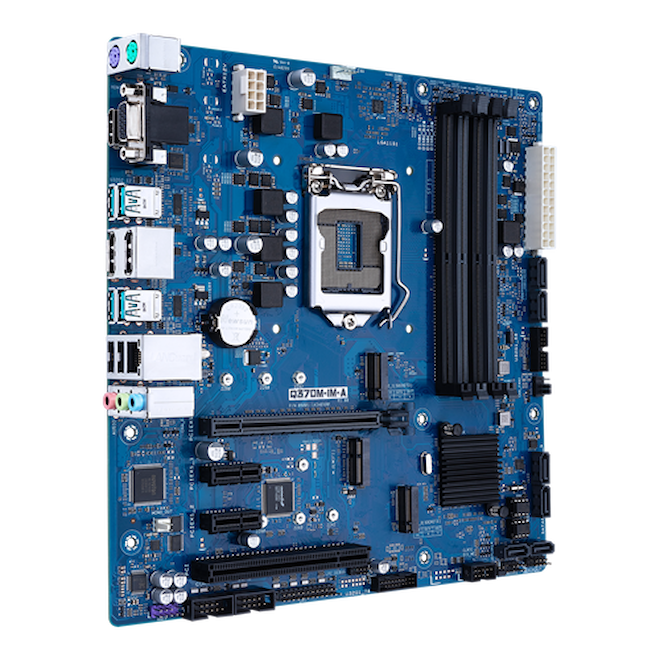

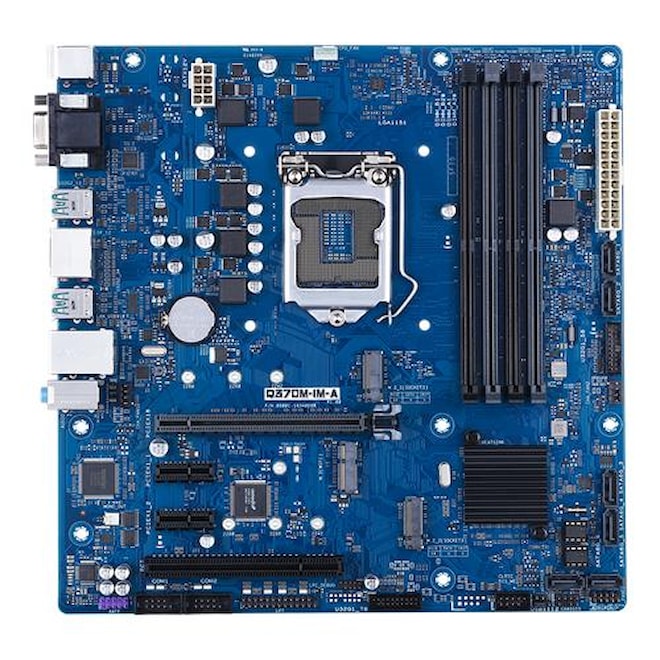

Q370M-IM-A is industrial motherboard produced by ASUS. This µATX motherboard with CPU Intel Coffee Lake Q370 is used in Medical equipment, Digital security

Micro ATX Intel Q370
LGA 1151 8/9th gen
DDR4 2666/2400
Wide temp 0~60°C

Datasheet
on request
Inquiry

Product parameters

Manufacturer ASUS
Video output VGA, HDMI, DisplayPort
SATA 1x, 2x, 3x, 4x, 5x, 6x
Software support Linux, Windows
Audio Microfone input, Audio output
Memory type M.2 SSD PCIe, Key-M, M.2 PCIe, Key-E
Power Input ATX 24pin
Operating temperature 0~60°C
Size (L x W x H) 244 x 244mm
Market Industrial
Form Factor micro ATX
Power Input ATX
Processor 8th/9th Generation Intel® Core i9/ i7/ i5/ i3/ Pentium/ Celeron
PCIe/mPCIe/PCI 1x PCIe 3.0 x16, 2 x PCIe 3.0 x1, 1x PCI, 1x M.2 2230 (E key) for WIFI/BT, 2x M.2 2242/2260/2280 (M key)

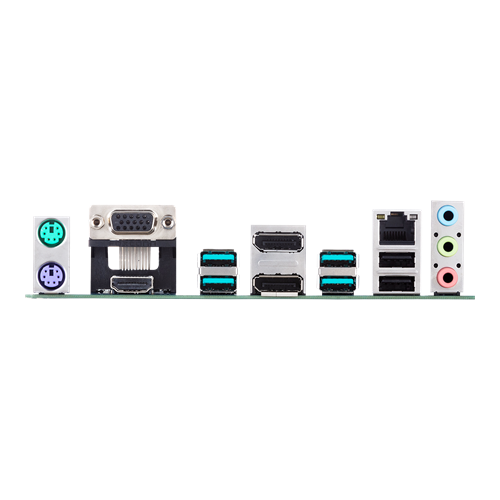

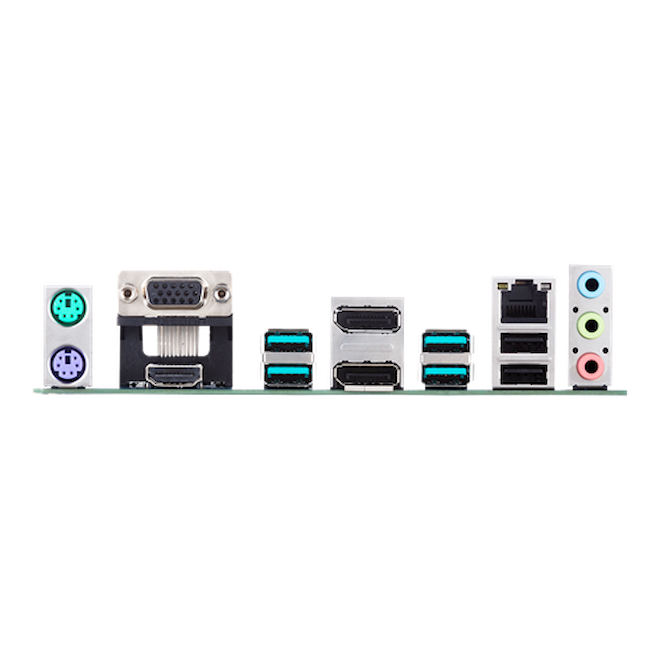

LAN/USB/COM 1x RJ45, 4x USB 3.2 Gen2 (type A), 2x USB 2.0, 3x USB header (4x USB3.2 Gen1, 2x USB 2.0), 2x COM headers, 2x PS/2
Interface 6x SATA 6Gb/s, Raid 0,1,5,10
Size 244 x 244mm
Operating temperature 0 ~ +60°C
Memory type 4x DDR4 2666/2400/2133 MHz
DDR U-DIMM

Chipset:

  • Intel® Q370

Processor:

  • LGA1151 socket for 9th/8th Generation Intel® Core i9/ i7/ i5/ i3/Pentium®/Celeron® Processors

Memory:

  • DDR4 2666/2400/2133 MHz
  • 4x U-DIMM socket, max. 64GB memory

Product features:

  • 1x LAN - Intel® I219LM, 10/100/1000Mbps
  • Supports up to 3 display configuration by multiple interface: Dual DP/HDMI/D-SUB
  • 2x header (2x RS 232)
  • 7-year longevity supply
  • Wide temperature range endurance: 0~60°C

Usage:

  • Medical equipment, Buildiing Automation, Digital Security
