    B912I225-6700-N

    Catalog number: B912I225-6700-N

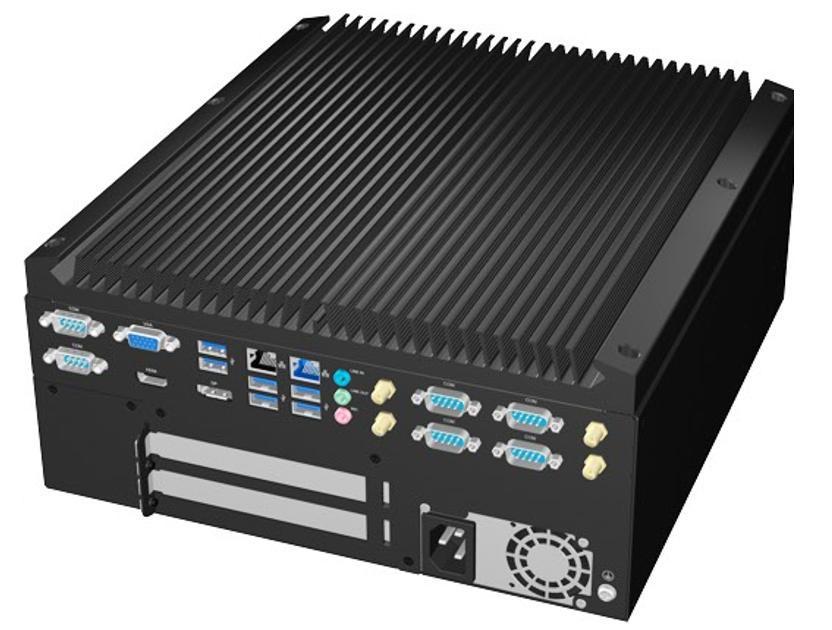

    The JETWAY B912I225-6700-N is a compact fanless PC. It is used in Edge computing and many various other industrial solutions.

    Intel® Alder Lake-S Q670E

    2x DDR5-5600MHz up to 64GB

    Datasheet
    on request
    Inquiry

    Product parameters

    Manufacturer JETWAY
    Video output HDMI, DisplayPort
    SATA 1x, 2x, 3x, 4x
    Software support Linux, Windows
    Audio Microfone input, Audio output
    Memory type M.2 SSD PCIe, Key-M, M.2 PCIe, Key-B, M.2 PCIe, Key-E
    RAM 8 GB, 16 GB, 32 GB, 64 GB
    Power Input 180 - 264 VAC
    Operating temperature -10~60°C
    Market Industrial
    Power Input AC 110~240V
    Processor Intel® Alder Lake-S Q670E Chip, Intel® LGA1700 Socket Core I3,I5,I7 Pentium Processor (Max 35W)
    PCIe/mPCIe/PCI 2x M.2 M key / 1x M.2 E key / 1x M.2 B key, 1x PCIEx16 (Gen.4) slot
    LAN/USB/COM 1x RS232/422/485 + 5x RS232 Ports, 6x USB3.2(Gen.2) + 2x USB2.0 Ports, 1x 3JACK
    Video input Support DP / HDMI/CRT Display
    Interface 2x nano-SIM, 1x Micro SD
    Size 284.0(W) x 300.0 (D) x 133.7 (H) mm
    Operating temperature -20 ~ +60°C
    Memory type LPDDR5

    Chipset:

    • Intel® Alder Lake-S Q670E Chip

    Processor:

    • Intel® LGA1700 Socket Core I3,I5,I7
    • Intel Pentium Processor (Max 35W)

    Graphics:

    • Integrated, Support DP / HDMI / CRT Display

    Memory:

    • 2x DDR5-5600MHz up to 64GB

    Product features:

    • Fanless design and diverse I/O in a compact size
    • Wide range of power input and operating temperature
    • Intel® LGA1700 Socket Core I3,I5,I7 Pentium Processor (Max 35W)
    • Intel® Alder Lake-S Q670E Chip
    • Support DDR5 5600 Max 64GB
    • 1 Intel® I219-LM GbE + 1x Intel® I226-V 2.5GbE
    • 1x M.2 M-key (2280, PCIex4 interface) support NVMe
    • 1x M.2 M-key (2242, PCIex4 interface) support NVMe
    • 1x M.2 E-key (2230, PCIex1/USB2.0) support CNVi
    • 1x M.2 B-key (3042, PCIex1/USB3.2) support 4G/5G
    • 1x RS232/422/485 + 5x RS232 Ports
    • 6x USB3.2(Gen.2) + 2x USB2.0 Ports
    • 1x PCIe x16(Gen.4) slot
    • Support DP / HDMI/CRT Display
    • 4x 2.5” HDD Tray , support Hot plug
    • Dimensions: 284.0(W) x 300.0 (D) x 133.7 (H) mm
    • AC 110~240V Input
