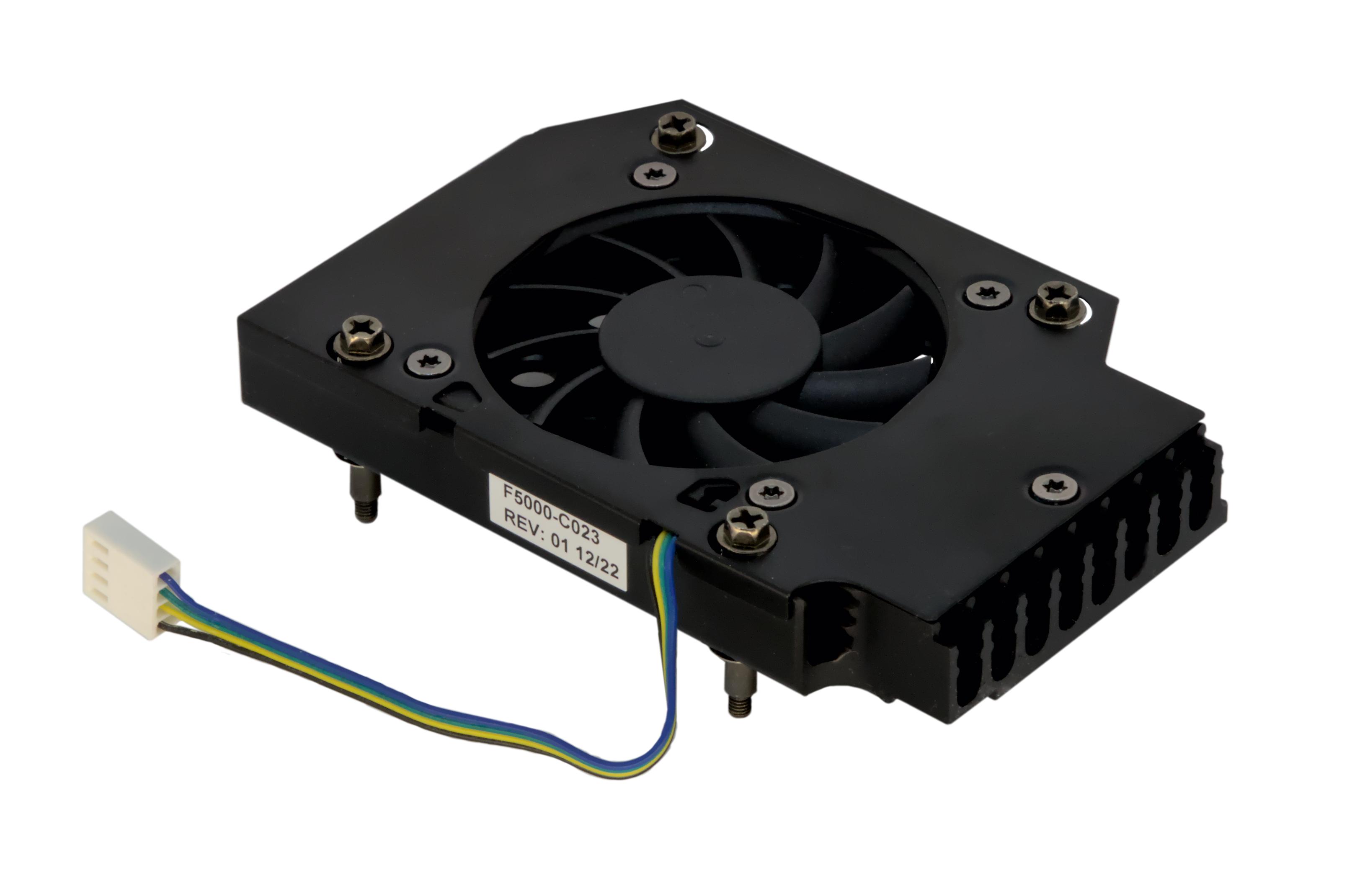

Active cooler AMD SoC

• Full aluminium with fan
• Max. 25W TDP
• Spring-loaded mounting screws for specified downforce
• Recommended mounting screw torque: max. 0.8Nm
• Weight ~ 197g

Fan Specification:

• 60 x 60 x 10 [mm]
• 12V PWM; max. 0.2A/2.4 W @ 100% PWM
• 4.200 rpm +/- 10% @ 100% PWM
• 600 rpm +/- 400 rpm @ 0-30% PWM
• Max. 33 dB(A) @ 100% PWM
• Two Ball Bearing
• MTBF = 60.000hrs @ 35°C

Mounting Backplate:

• Metal backplate, provides 4 mounting threads for heatsink
