Passive cooler Intel SoC

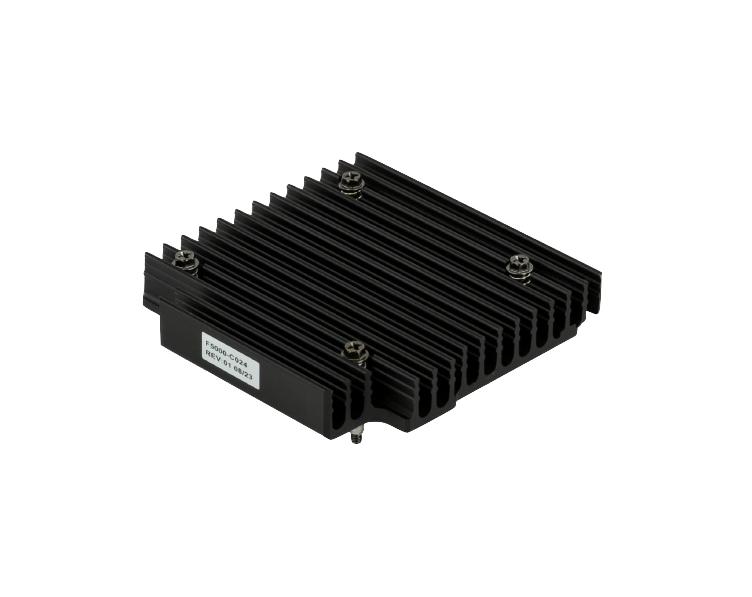

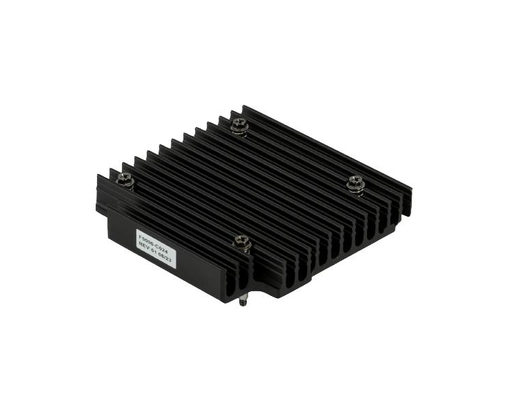

Fanless Heatsink Kit for Mini-ITX Motherboard K392x

• Designed for the Intel® Processor
• Full aluminium
• Max. 12 W TDP
• Spring-loaded mounting screws for specified downforce
• Weight: ~ 180g (cooler) + 21 g (backplate)

TECHNICAL INFORMATION

• RECOMMENDED MOUNTING SCREW TORQUE: max. 0.8 Nm
• Metal backplate, provides 4 mounting threads for heatsink
• BACKPLATE MOUNTING HOLES: M3; hole spacing = 61.5 mm x 61.5 mm
