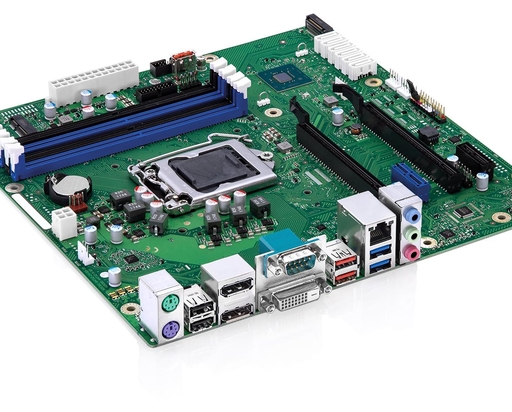

D3644-B µATX Kontron
cat. num.: S26361-F5110-V162
D3644-B
microATX, Intel C246
LGA1151 8/9th gen., Xeon
DDR4 2666
Extended Lifecycle
Manufacturer
Links
Availabillity:
on request
Inquiry
Description
Memory:
- DDR4-2666 SDRAM Memory
- 4 DIMM sockets, up to 64GB memory ECC support
Product features:
- Supporting Intel AMT 12.0 / vPro
- PCI Express x16 (Gen.3)
- Intel® GbE LAN
- Intel® UHD Graphics (DX12)
- 1x DVI-D, 2x DP V1.2
- Intel® High Definition 5.1 Audio; Infineon TPM V2.0
- 1 x COM port
- 4x USB 2.0, 6x USB 3.1 Gen1, 2x USB 3.1 Gen2, 1 x USB 3.1 Gen2 stick socket
- 6x SATA 6G/s incl. RAID support
- M.2 2280 (PCIe-based SSD modules)
- M.2 2230 (WLAN/Bluetooth modules)
- BIOS-POST/-Boot & OS – HW Watchdog onboard
Parameters
| Market: | Industrial motherboard |
| Form Factor: | microATX |
| Processor: | Intel® XEON® E-21xx processor series, Intel® Core™ i7 / i5 / i3 (8 th gen.) processor series, Intel® Pentium® / Intel® Celeron® processor series, Socket LGA1151 – up to 95W TDP |
| PCIe/mPCIe/PCI: | PCI Express x16 (Gen.3), M.2 2280 (PCIe-based SSD modules) M.2 2230 (WLAN/Bluetooth modules), |
| LAN/USB/COM: | 1 x COM port, 4x USB 2.0, 6x USB 3.1 Gen1, 2x USB 3.1 Gen2, 1 x USB 3.1 Gen2 stick socket |
| Size: | 244 x 244 mm |
| Memory type: | UDIMM |
| DDR: | DDR4-2666 |
