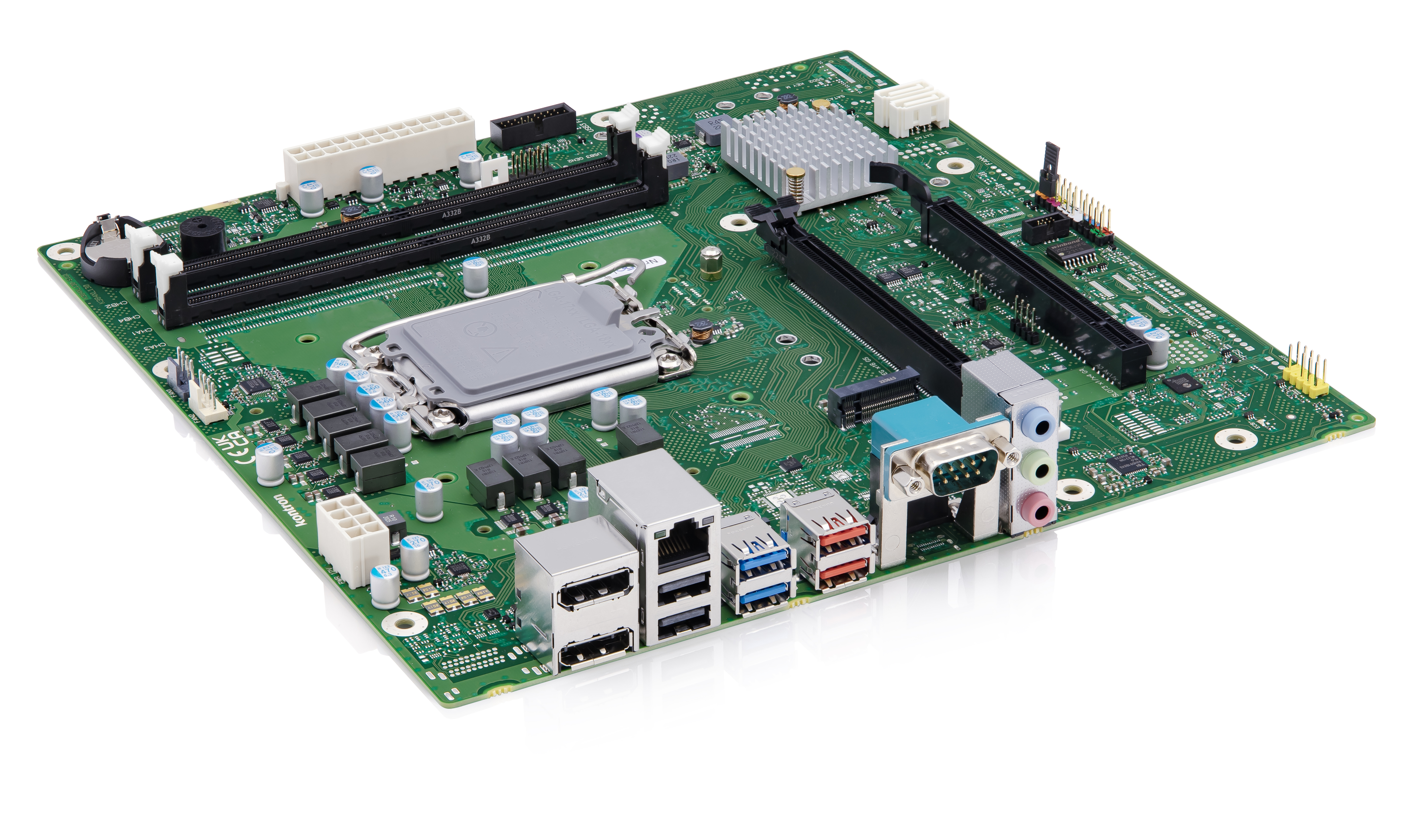

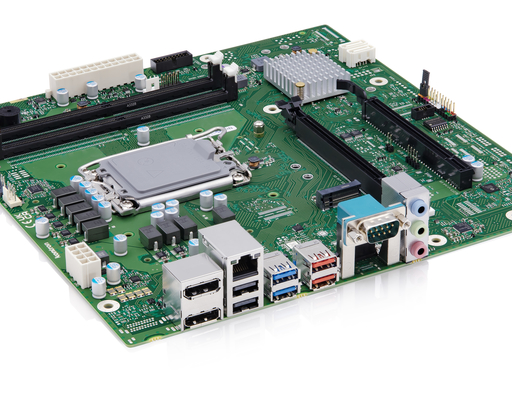

K3843-B2 µATX Kontron
cat. num.: F5110-V188 New product
K3843-B2 is industrial motherboard produced in Germany from Kontron. This µATX motherboard with CPU Intel Alder Lake B660 is used in Video, Building automation
microATX, Intel B660
LGA1700 12/13th/14th gen.
DDR5 4800
Extended Lifecycle
Manufacturer
Availabillity:
on request
Inquiry
Description
Memory:
- DDR5-4800 Memory
- 4 DIMM sockets, up to 128GB
Product features:
- Intel® 12/13th/14th Gen Core™ i9/i7/i5/i3, Intel Pentium®/Celeron® Processor Series
- Socket LGA1700, max 125W TDP
- cTDP – Easy & flexible reduction of CPU TDP
- Supporting selected Intel® vPro® Essentials features and Intel® Time Coordinated Computing (TCC)
- PCI Express® x16 (Gen5 @ CPU, Gen4 @ PCH)
- 1x Intel® GbE LAN
- Intel® UHD Graphics 7xx driven by Xe Architecture
- 2x DisplayPort V1.4a up to 8k
- Intel® High Definition 5.1 Audio; Intel® integrated TPM V2.0
- 1x COM port
- 2x USB 3.2 Gen 2, 4x USB 3.2 Gen1, 4x USB 2.0
- 2x SATA 6G incl. RAID support
- 2x M.2 2280 (Key-M, PCIe/NVME SSD modules)
Usage:
- Medical Equipment, Building Automation, Video, Industrial Automation, Vision
Parameters
| Market: | Extended Lifecycle |
| Form Factor: | microATX |
| Power Input: | ATX (Multirail) plus 8-pin socket (12 V for CPU) |
| Processor: | Intel® 12/13/14th Gen Core™ i9/i7/i5/i3, Intel Pentium®/Celeron® Processor Series |
| PCIe/mPCIe/PCI: | 2x M.2 2280 (Key-M, PCIe/NVME SSD modules), PCI Express® x16 (Gen5 @ CPU, Gen4 @ PCH) |
| LAN/USB/COM: | 1x COM port, 2x USB 3.2 Gen 2, 4x USB 3.2 Gen1, 4x USB 2.0 |
| Interface: | 2x SATA 6G incl. RAID support |
| Size: | 243.8 x 243.8 mm |
| Operating temperature: | 10 ~ +50°C |
| Memory type: | UDIMM |
| DDR: | DDR5-4800 |
