MM10-H6100 Series
cat. num.: MM10-H6100_S New product

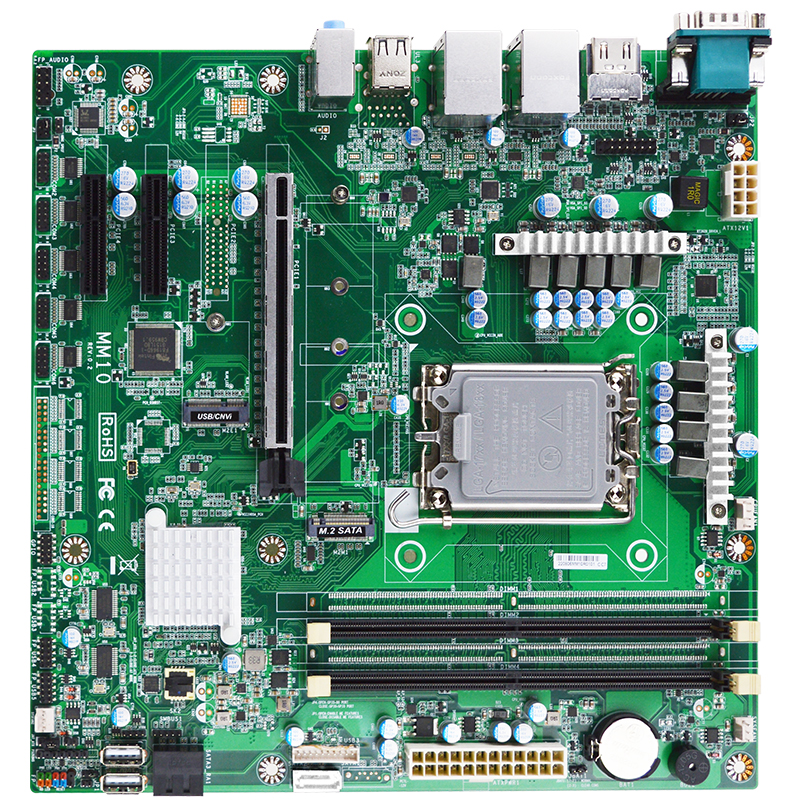

MM10-H6100 is industrial motherboard produced by Jetway. This µATX motherboard with CPU Intel Alder Lake H610 is used in Surveillance, Digital security
microATX, Intel H610 Express chipset
LGA1700 12th / 13th Gen, i9 / i7 / i5 / i3 processor
DDR5 4800MHz, up to 64GB memory
Max. 125W (240A) TDPs
Industrial series
Manufacturer
Links
Availabillity:
on request
Inquiry
Description
Memory:
- DDR5-4800 Memory
- 2x UDIMM, up to 64GB
Product features:
- Intel® 12/13th LGA1700 Socket Processor (Max.125W TDP)
- 2x 10/100/1000 Base-TX Ethernet Ports
- 2x HDMI, 1x DP, 1x VGA
- 6x COM (COM1 support RS232/422/485)
- 2x USB3.2 Gen.2, 1x USB3.2 Gen.1, 11x USB2.0
- 1x PCIe x16 slot, 2x PCIe x4 slot, 1x M.2 M-Key (2242/2260/2280/22110, SATA interface), 1x M.2 E-Key (2230, USB2.0 interface) support CNVi
- 3x SATAIII (SATA2 support SATA DOM)
- Support onboard TPM 2.0 (MM10-H6102 only)
- Operating temperature: -10 ~ 50° C
- Size: 244 x 244mm
Usage:
- Building automation, Factory Automation, Public Sector, Digital Security, Surveillance
Parameters
| Market: | Industrial motherboard |
| Form Factor: | microATX |
| Processor: | Intel H610 Chipset, 12th / 13th Gen, i9 / i7 / i5 / i3 processor |
| PCIe/mPCIe/PCI: | 1x PCIe x16 slot, 2x PCIe x4 slot, 1x M.2 M-Key (2242/2260/2280/22110, SATA interface), 1x M.2 E-Key (2230, USB2.0 interface) support CNVi |
| LAN/USB/COM: | 6x COM (COM1 support RS232/422/485), 2x USB3.2 Gen.2, 1x USB3.2 Gen.1, 11x USB2.0 |
| Interface: | 3x SATAIII (SATA2 support SATA DOM) |
| Size: | 244 x 244mm |
| Operating temperature: | -10 ~ +50°C |
| Memory type: | UDIMM |
| DDR: | DDR5-4800, up to 64GB |
