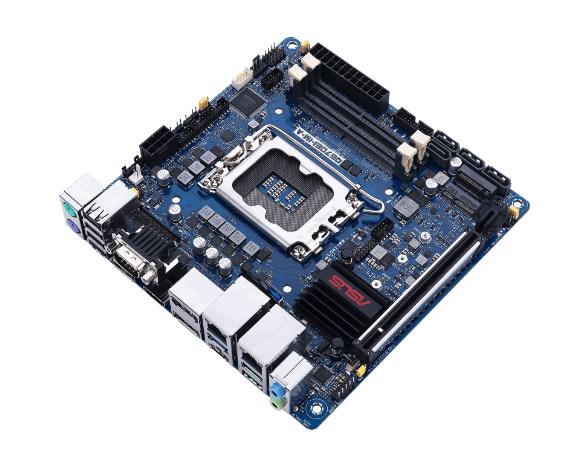

ASUS R680EI-IM-A
cat. num.: R680EI-IM-A New product
ASUS R680EI-IM-A is mITX industrial motherboard. This mini ITX is with CPU from Intel Core 12/13/14th Gen, R680E Usage: Embedded AI, Automation PC, Medical equipment
Mini-ITX, Intel R680E
LGA1700 12/13/14th gen.
2x DDR5 4800
Wide temp 0~60°C
Manufacturer
Links
Availabillity:
on request
Inquiry
Description
Chipset:
- Intel® R680E
Processor:
- 12/13/14th Generation Intel® Core™ i9/i7/i5/i3/Pentium/Celeron (Alder Lake)
- LGA1700 Socket
- max TDP 65W
Memory:
- DDR5 4800 MHz
-
2x SO-DIMM socket, max. 64GB memory
Product features:
- 2x LAN - Intel® I210AT, Intel® I225LM (Intel vPro supported)
- Supports up to 4 display configuration by multiple interface: 3x DP 1.4 (up to 8K resolution)/ 1x HDMI / 1x eDP or LVDS header (switched by BIOS)
- 1x COM (RS-232/422/485) + 4x COM header (1x RS232/422/485, 3x RS232)
- 1x PCIe 5.0 x16 Slot
- 1x M.2 E key, Type 2230 for WIFI/BT device (PCIe & CNVi), 1x M.2 M key, Type 2242/2260/2280 (PCIe x4 & SATA mode)
- Up to 7-year longevity supply
- Operation temperature range endurance: 0~60°C
Usage:
- Embedded AI
- Automation PC
- Medical equipment
Parameters
| Market: | Industrial |
| Form Factor: | mini-ITX |
| Power Input: | ATX / DC-in |
| Processor: | 12/13/14th Generation Intel® Core™ i9/i7/i5/i3/Pentium/Celeron |
| PCIe/mPCIe/PCI: | 1x PCIe 5.0 x16, 1x M.2 2230 (E key), 1x M.2 2242/2260/2280 (M key) |
| LAN/USB/COM: | 2x RJ45, 2x USB 3.2 Gen2 Type A, 1x USB 3.2 Gen2 Type C, 1x USB 3.2 Gen1, 4x USB2.0, 2x USB header (2x USB 3.2 Gen1 / 2x USB 2.0), 1x COM + 4x COM headers, 2x PS/2 |
| Interface: | 4x SATA 6Gb/s Gen 3.0, Up to 6Gb/s, Support RAID 0,1,5,10 |
| Size: | 170 x 170 mm |
| Operating temperature: | 0 ~ +60°C |
| Memory type: | 2x DDR5-4800 |
| DDR: | SO-DIMM |
