- D3543-S1 mITX Kontron

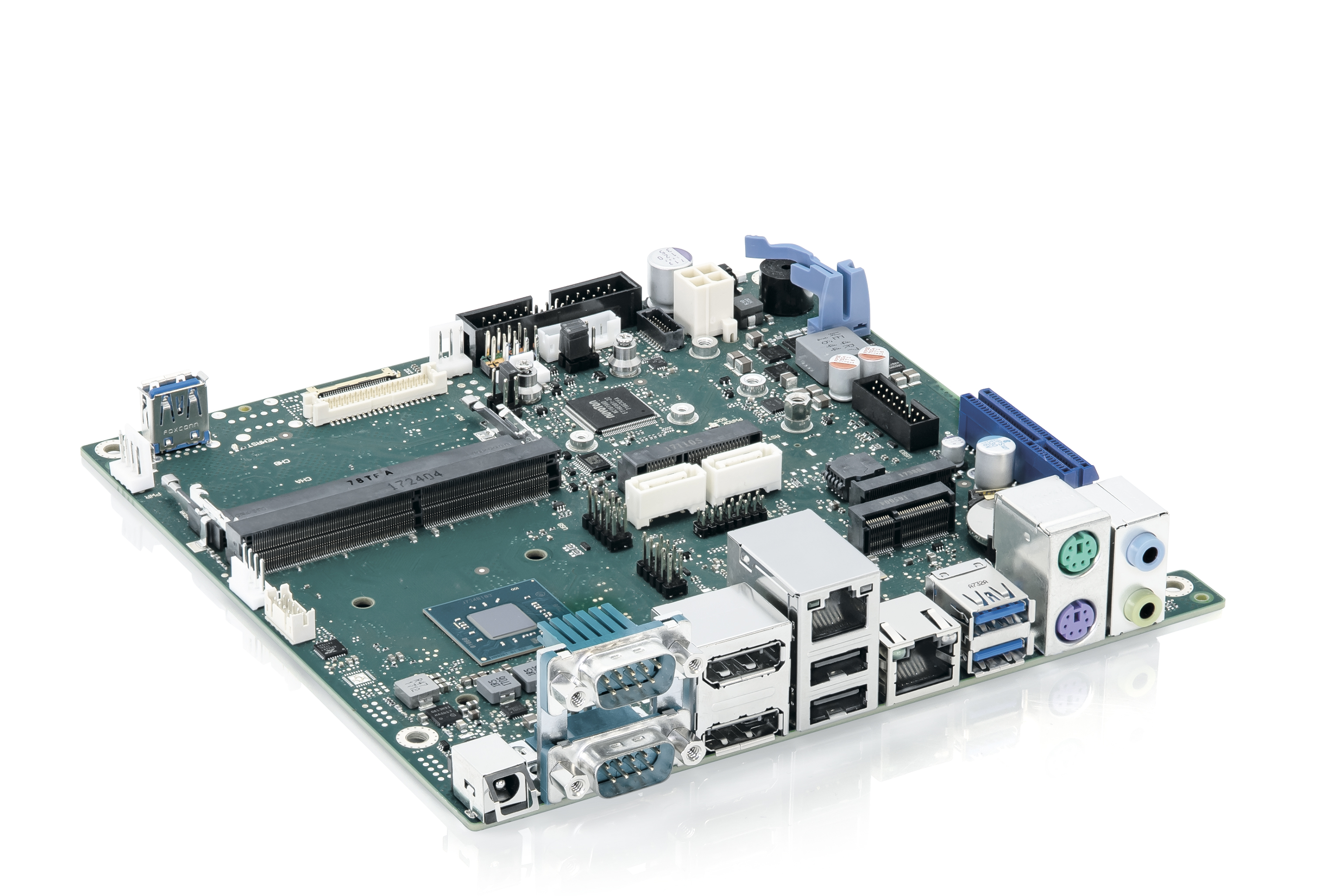

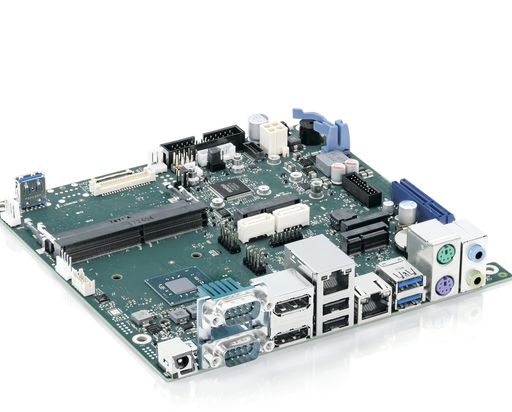

D3543-S1 mITX Kontron
cat. num.: S26361-F5120-V151
D3543-S1
mini-ITX, Gemini Lake
SoC Celeron J4005 DC
DDR4-2400
Industrial Series
Manufacturer
Links
Availabillity:
in stock
Inquiry
Description
Memory:
DDR4 2400 SDRAM (SO-DIMM)
Product Features:
- Intel® UHD Graphics 600 (within SoC)
- 2x DisplayPort V1.2a
- Dual Channel LVDS (24Bit) and eDP V1.4 onboard
- 8 Bit GPIO & HD Audio onboard
- USB 2.0 and USB 3.1 (gen1) onboard
- 2x SATA III
- Onboard support for M.2 SSD (SATA/PCIe)
- Onboard support for M.2 WLAN/Bluetooth module
- Dual GbE LAN onboard
- Intel® integrated TPM V2.0 onboard
- WideRange internal/external DC Input (8V - 36V)
- HW Watchdog onboard
- RS-232/485/422 support onboard
Parameters
| Market: | Industrial mainboard |
| Form Factor: | miniITX |
| Power Input: | 8-36V |
| Processor: | Intel® Celeron® Processor J4005 (Gemini lake) |
| Size: | 170x170mm |
| Operating temperature: | 0-60 °C |
| Memory type: | DDR4 |
| DDR: | SO-DIMM |
