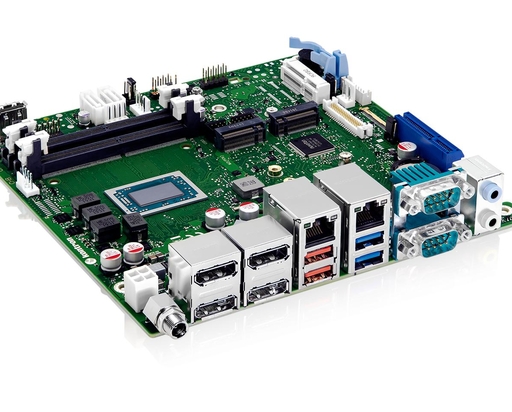

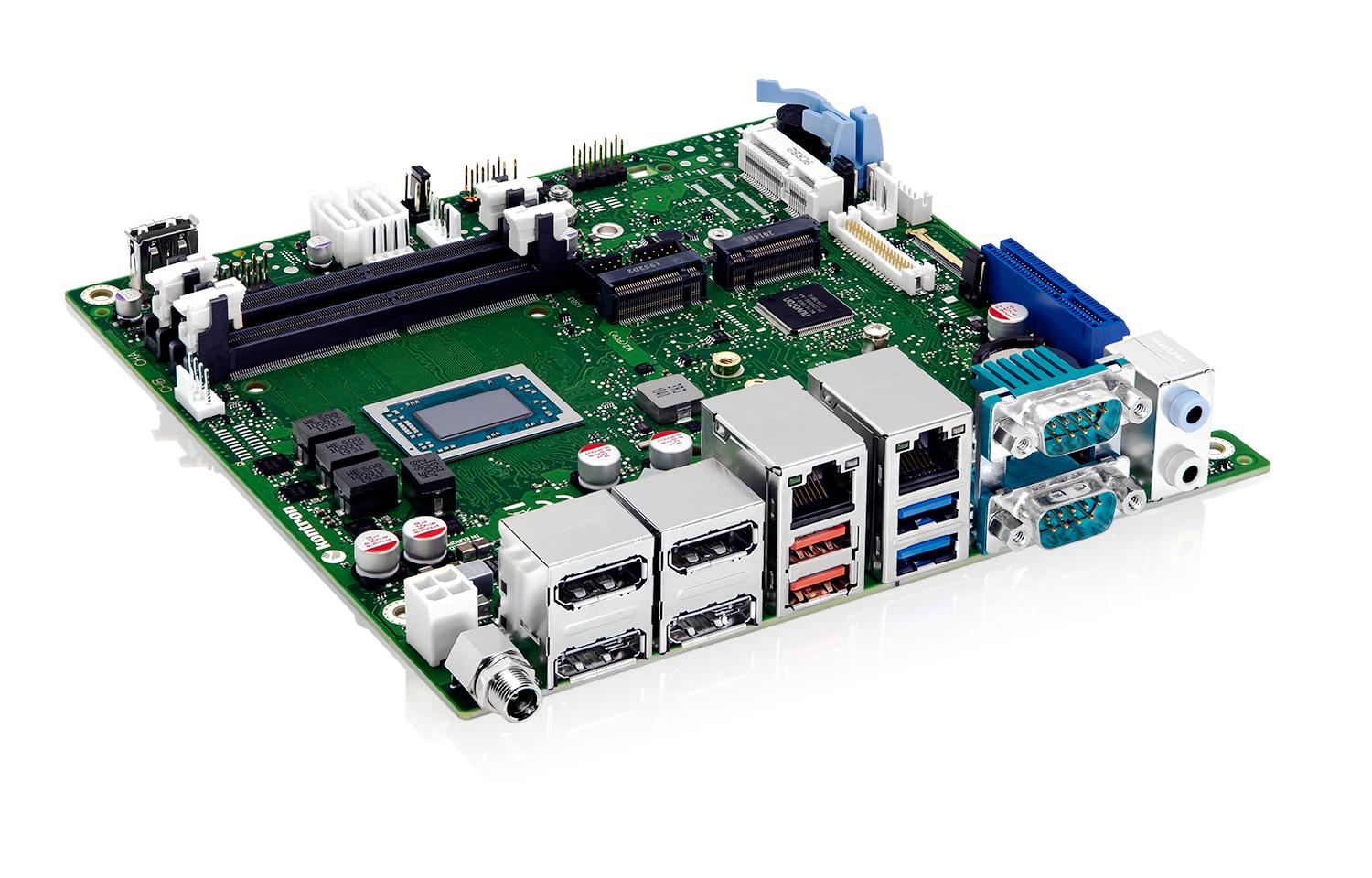

D3723-R1 mITX Kontron
cat. num.: F5120-V199 New product
D3723-R1 is industrial motherboard produced in Germany from Kontron. This mITX motherboard with AMD R2312 CPU is used in casino gaming, Industral PCs.
mini-ITX, Ryzen R2312
DDR4 3200,RadeonVega
3xDP, 4xCOM
WideTemp -10-60C
Manufacturer
Availabillity:
in stock
Inquiry
Description
Processor:
- AMD Ryzen™ Embedded R2312 Dual-Core 2.7/3.5 GHz (Supported TDP Limits: 25W / 15W / 12W)
Graphics:
- AMD Radeon™ Vega Graphics @1.2GHz, 3x Compute units
- up to 3 displays
- 3x DP V.1.4
- 1x embedded DP (eDP V1.3; supporting 4K resolutions)
- 1x Dual-Channel 24bit LVDS
Memory:
- DDR4 2400 SDRAM
- 2x SO-DIMM socket, max 2x 16GB
Product Features:
- Following max. display combinations are supported: 1x DPP + 1x LVDS + 1x eDP, 2x DPP + 1x LVDS or eDP, 3x DPP
- HD Audio onboard (Realtek ALC256)
- Dual GbE LAN onboard - Intel® i210 & Realtek RTL8111H with 10/100/1000 MBit/s
- 1x RS232/422/485; 3x RS232 (2x by header)
- GPIO (by header)
- AMD integrated TPM V2.0 onboard & socket for optional TPM Module
- Designed for 24/7 fanless operation (max 15W TDP)
- 3 level HW Watchdog onboard (BIOS POST/BIOS Boot/OS)
- WideRange internal/external DC Input (8 V - 34 V)
Usage:
- Medical Displays, Casino Gaming, Industrial PCs
Parameters
| Market: | Industrial mainboard |
| Form Factor: | Mini ITX |
| Power Input: | DC Power Supply 8-34V |
| Processor: | AMD R2312 Dual-Core 2.7/3.5 GHz |
| PCIe/mPCIe/PCI: | 1x Mini PCIe (Gen3, halfsize/fullsize), 1x PCIe x4 Gen3 |
| LAN/USB/COM: | 2x RJ45, 4x USB 3.1 Gen1 (2x by header), 2x USB 3.1 Gen2, 2x USB 2.0 (by header), 4x COM (2x by header) |
| Interface: | 2x SATA III 6Gb/s, 1x M.2 SSD Key-M (2280/2242/2230), 1x M.2 Key-B (2242/3052/2260/2280) |
| Size: | 170 x 170mm |
| Operating temperature: | -10-60 °C |
| Memory type: | DDR4-2400 |
| DDR: | SO-DIMM |
