JLI1U-20 Series
cat. num.: JLI1U-20_S

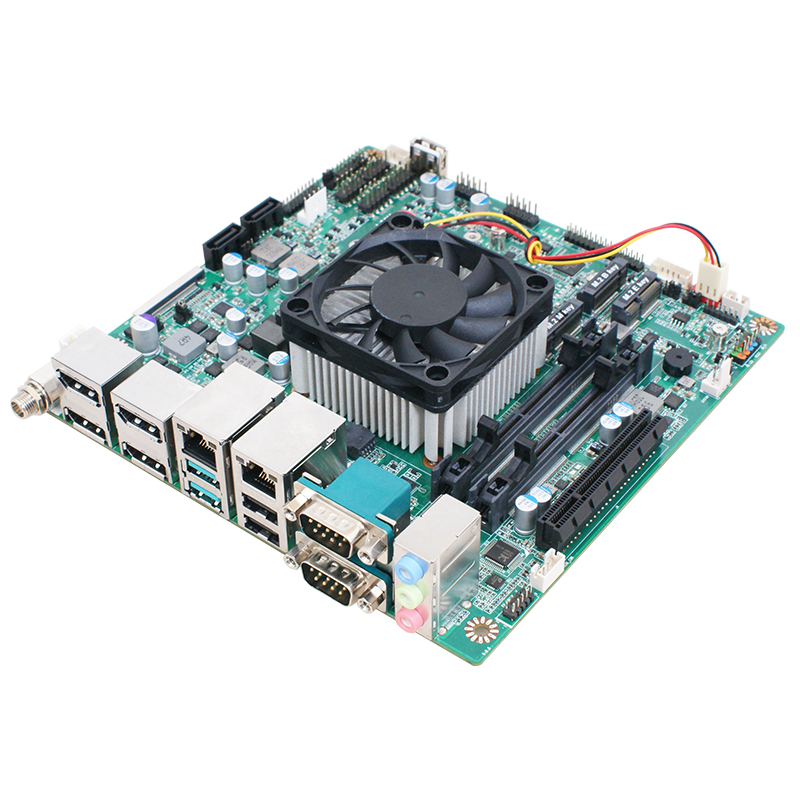

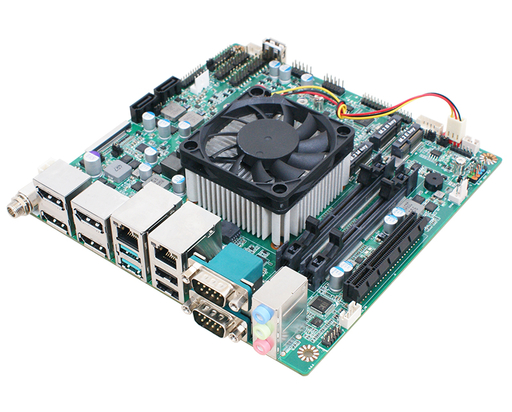

JLI1U-20 is industrial motherboard produced by Jetway. This mITX motherboard with AMD CPU V1605B is used in Digital signage and industrial PCs
AMD (RYZEN) Core V1000 Series Processor
2* DDR4 2400MHz SO-DIMM up to 32GB
Operating temp.: 0°C ~ 60°C
Manufacturer
Availabillity:
on request
Inquiry
Description
Processor:
- AMD (RYZEN) Core V1000 Series Processor
- V1605B QC, 2.0GHz,15W, Co-lay V1000/R1000 series
- AMI 128M Flash ROM
Model:
- JLI1U-20
- JLI1U-22 (TPM2.0)
Memory:
- 2x DDR4 2400MHz SDRAM SO-DIMM up to 32GB
Product features:
- 2x RS232/422/485, 4x RS232, 2x USB3.2 (Gen1), 8x USB2.0
- 2x Realtek® RTL8111H GbE
- 2x SATA III (6Gb/s), 1x M.2 M key (PCIe x2)
- 4x DP(DP0 Co-lay eDP, DP1 Co-lay LVDS)
- Support Four Displays
- 1x M.2 E key, 1x M.2 B key support 4G/5G Module
- 12~28V DC-in
- JLI1U-22 support TPM2.0 (option)
Usage:
- Digital signage
Parameters
| Market: | Industrial |
| Power Input: | 12~28V DC-in |
| Processor: | AMD (RYZEN) Core V1000 Series Processor |
| PCIe/mPCIe/PCI: | 1x M.2 E key, 1x M.2 B key support 4G/5G Module |
| LAN/USB/COM: | 2x RS232/422/485, 4x RS232, 2x USB3.2 (Gen1), 8x USB2.0 |
| Video input: | 4x DP(DP0 Co-lay eDP, DP1 Co-lay LVDS) 1x eDP, 1x LVDS |
| Interface: | 2x SATA III (6Gb/s), 1x M.2 M key (PCIe x2) |
| Size: | 170 x 170 mm |
| Operating temperature: | 0~60°C |
| Memory type: | 2x DDR4 2400MHz SDRAM up to 32GB |
| DDR: | SO-DIMM |
