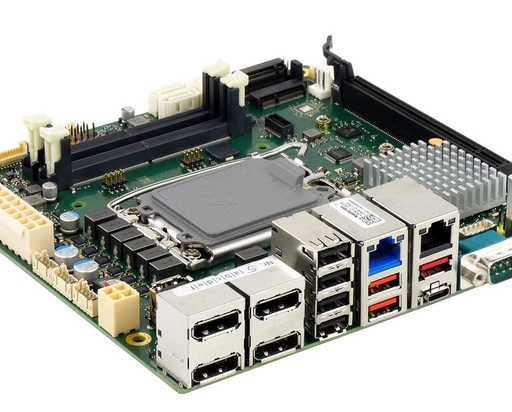

K3836-R mITX Kontron
cat. num.: F5120-V198 New product
K3836-R is industrial motherboard produced in Germany from Kontron. This mITX motherboard is with CPU from Intel 12/13/14th generation, Q670E. Usage in IPC.
mini-ITX, Intel R680E
LGA1700, 12/13/14th Gen.
96GB DDR5-4800/5600MHz
Industrial Series
Manufacturer
Links
Availabillity:
on request
Inquiry
Description
Processor:
- Intel Core Processor series i9 / i7 / i5 / i3 (12th, 13th, 14th gen)
- Intel Pentium / Celeron processor series
- Socket LGA 1700, Max. 65 W TDP
Chipset:
- K3836-R: Intel® R680E
Memory:
- 2x SO-DIMM DDR5 4800/5600MHz, Dual Channel unbuffered, up to 96GB memory with ECC possibility
Product Features:
- PCI Express x16 (Gen5 prepared)
- 1x Intel® GbE LAN, 1x 2.5GbE incl. Teaming and TSN, Intel® UHD Graphics (7xx driven by Xe architecture)
- 4x DisplayPort V1.4a up to 8K; 1x eDP V1.4b @4K; 1x Dual Channel LVDS
- HD Audio onboard
- Intel integrated TPM V2.0
- 8 Bit GPIO; 4x COM port (incl. 1x RS-322/422/485 support)
- 7x USB 2.0, 6x USB 3.2 Gen2
- 4x SATA 6G/s incl. RAID support & M.2 Key-M (PCIe/NVME SSD modules 2242 or 2280) & M.2 Key-E (WLAN, Bluetooth modules, PCIe + USB)
- BIOS-POST/-Boot & OS – HW Watchdog onboard
- Supporting Intel iAMT and Intel Time Coordinated Computing (TCC)
- cTDP – Easy & flexible reduction of CPU TDP
- Combined ATX Standard PSU (24-pin + 4-pin) or Single 12V Supply DC-in
Usage:
- IPC
- Robotics
- Medical
Parameters
| Market: | Industrial mainboard |
| Form Factor: | miniITX |
| Power Input: | Combined ATX Standard PSU (24-pin + 4-pin or Single 12V Supply DC-in |
| Processor: | Intel® Core™ i9 / i7 / i5 / i3 – (12/13/14th gen.) processor series, Intel® Pentium® / Celeron® processor series, Socket LGA1700 – up to 65W TDP |
| PCIe/mPCIe/PCI: | PCI Express x16 (Gen5 prepared) |
| LAN/USB/COM: | 1x Intel® GbE LAN, 1x 2.5GbE, 4x COM port (incl. 1x RS-322/422/485 support) 7x USB 2.0, 6x USB 3.2 Gen2 |
| Interface: | 4x SATA 6G/s incl. RAID support & M.2 Key-M (PCIe/NVME SSD modules 2242 or 2280) & M.2 Key-E (WLAN, Bluetooth) |
| Size: | 170 x 170 mm |
| Operating temperature: | 0-60 °C |
| Memory type: | SO-DIMM, 4800/5600MHz, up to 96GB, ECC |
| DDR: | DDR5 |
