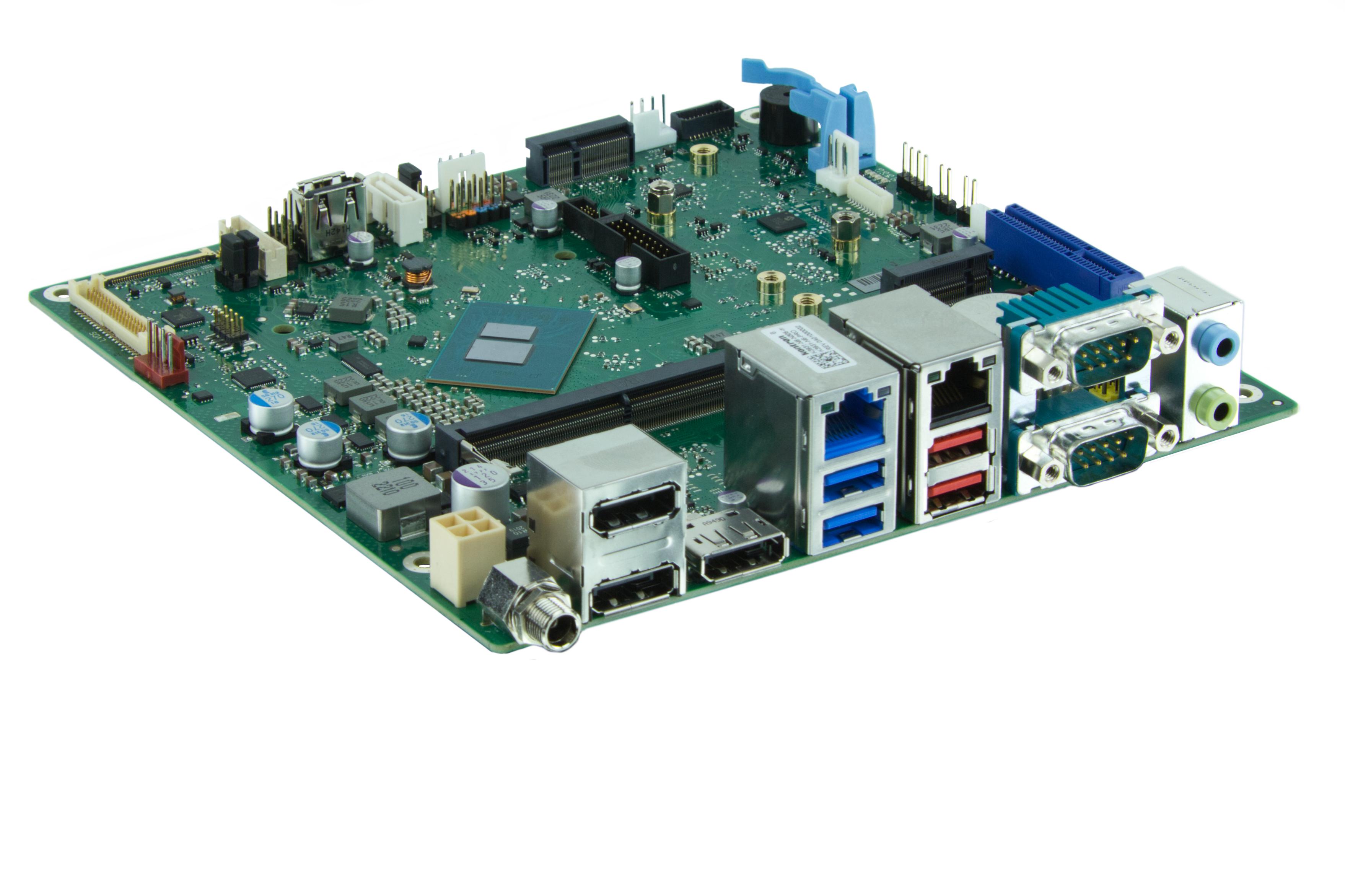

K3931-N6 mITX Kontron

Processor:

• Intel Alder Lake N SoC Series
• N6: Intel Core i3 N305 (8C/15W) SoC

Graphics:

• Intel® UHD Graphics driven by Intel® Xe with up to 32 execution units (EUs)
• Up to 3x DPP V1.4a (up to 4K resolution)
• 1x Embedded DP (eDP V1.4b up to 4K resolution)
• 1x Dual-Channel 24bit LVDS

Memory:

• DDR5 4800 SDRAM
• 1x SO DIMM socket, up to 32 GByte memory, non-ECC

Product Features:

• 8 Bit GPIO & HD Audio onboard
• 3x USB 2.0, 4x USB 3.2 Gen1, 4x USB 3.2 Gen2
• 2x SATA III
• 1x Realtek GbE LAN, 1x 2,5GbE incl. Teaming
• 1x SATA 6G
• 1x M.2 2230/42/80 (Key-M, PCIe x1 Gen3/NVMe SSD modules)
• 1x M.2 2242/80 (Key-B, PCIe x1 Gen3/SATA SSD modules)
• 1x M.2 2230 (Key-E, WLAN/Bluetooth modules, CNVi support only)
• Intel® integrated iTPM V2.0
• WideRange internal/external DC Input (8V - 36V)
• HW Watchdog onboard
• 4x RS-232 support onboard (1x incl. RS 485/422) + 1x ccTalk
• WideRange internal/external DC input (8V - 34V)

Usage:

• Casino Gaming, Medical Displays, Industrial PCs
• Designed for 24/7 use, with enhanced temperature range, up to 60°C
