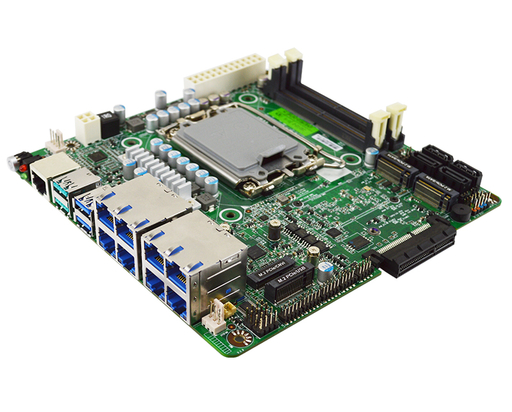

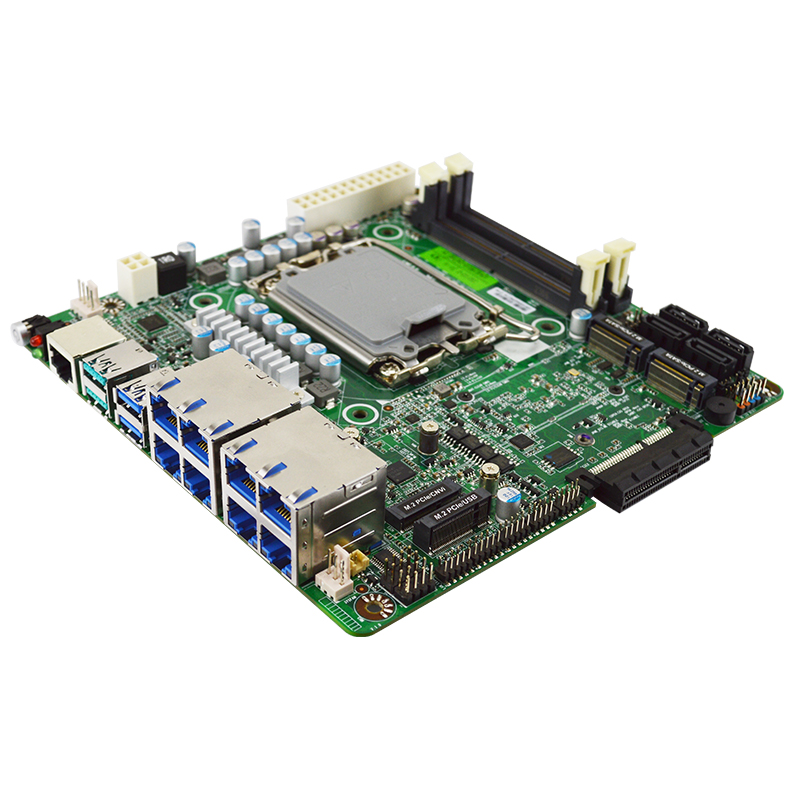

MI23-Q670X Series
cat. num.: MI23-Q670X_S New product
MI23-Q670X is industrial motherboard produced by Jetway. This mITX motherboard with CPUIntel 12/13. Gen, H610. Usage: High perf. networking application, IOT
Mini-ITX
Intel® H670E Chipset support LGA 1700 - 13th/12th Gen (Raptor Lake-S/Alder Lake-S) i9/i7/i5/i3 processor (Max. 65W TDPs under 180A)
DDR5 with up to 64GB
Operating temp.: 0°C ~ 60°C
Manufacturer
Links
Availabillity:
on request
Inquiry
Description
Processor:
- Intel® 12th/13th LGA1700 Socket Core i7/i5/i3/Pentium/Celeron Processor (Max. 65W TDPs under 180A)
- Intel® Q670E Chipset
- AMI Flash ROM BIOS
Model:
- MI23-Q6700 (Q670E)
- MI23-Q6702 (Q670E, onboard TPM 2.0)
Memory:
- Intel® 13th CPU support 2x DDR5 5600MHz SO-DIMM up to 64GB
- Intel® 12th CPU support 2x DDR5 4800MHz SO-DIMM up to 64GB
Product features:
- 8x 2.5GbE LAN, 3x RS232, 1x HDMI
- 2x USB3.2 (Gen.2), 2x USB3.2 (Gen.1), 4x USB2.0
- 1x PCIe Gen.4 x4 slot, 2x M.2 (M-key), 1x M.2 (E-key), 1x M.2 (B-key)
- 4x SATAIII support RAID 0, 1, 5, 10
- 24pin ATX + 4pin 12V
- Support onboard TPM 2.0 (MI23-Q6702 only)
- Support JetBIOS SW back up tool for BIOS recovering
- Windows 10, Windows 11, Linux
Usage:
- IoT, High Performance Networking application, Firewall
Parameters
| Market: | Industrial |
| Form Factor: | mini-ITX |
| Power Input: | 24pin ATX + 4pin 12V |
| Processor: | Intel® 12th/13th LGA1700 Socket Core i7/i5/i3/Pentium/Celeron Processor (Max. 65W TDPs under 180A) |
| PCIe/mPCIe/PCI: | 1x PCIe Gen.4 x4 slot, 2x M.2 (M-key), 1x M.2 (E-key), 1x M.2 (B-key) |
| LAN/USB/COM: | 8x 2.5GbE LAN, 3x RS232, 1x HDMI, 2x USB3.2 (Gen.2), 2x USB3.2 (Gen.1), 4x USB2.0 |
| Interface: | 4x SATAIII support RAID 0, 1, 5, 10 |
| Size: | 170 x 170 mm |
| Operating temperature: | 0~60°C |
| Memory type: | 2x DDR5 4800MHz / 5600MHz up to 64GB |
| DDR: | SO-DIMM |
