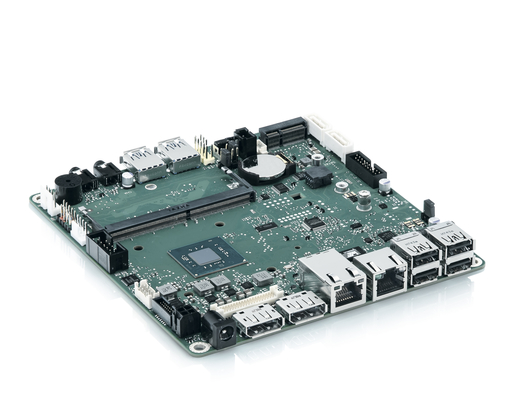

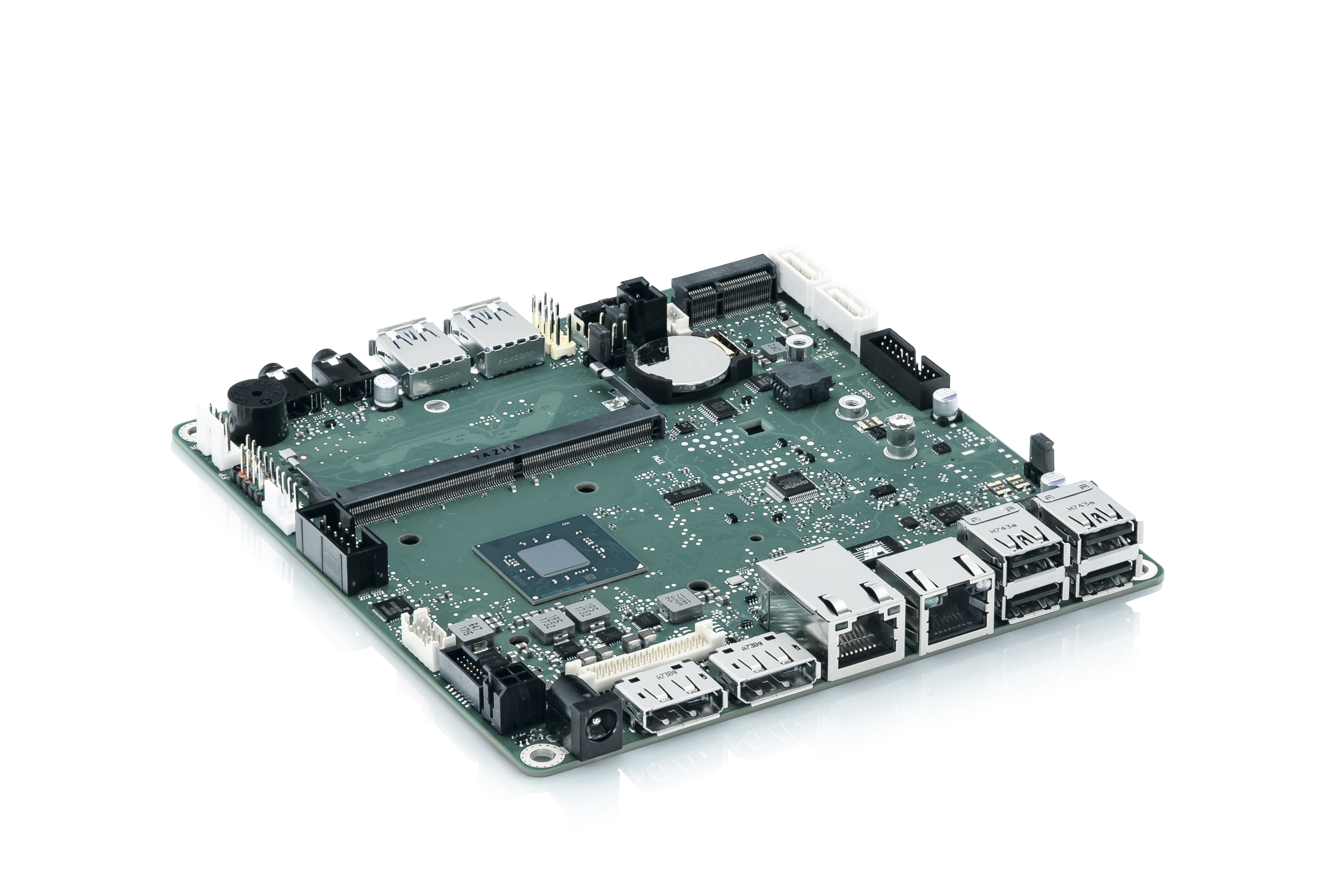

D3544-S3 mSTX Kontron
cat. num.: S26361-F5120-V159
D3544-S3
mini-STX, Gemini Lake
SoC Pentium J5005 QC
DDR4-2400
Industrial series
Manufacturer
Links
Availabillity:
in stock
Inquiry
Description
Processor (SoC):
- Intel® Pentium® Silver Processor J5005 (QC @1.5GHz / 2.8GHz)
- integrated Intel® UHD Graphics 605 (18EUs @800MHz)
- 10W TDP
Memory:
DDR4 2400 SDRAM (SO-DIMM)
Product Features:
- 2x DisplayPort V1.2a
- Dual Channel LVDS (24Bit) and eDP V1.4 onboard
- 8 Bit GPIO & HD Audio onboard
- USB 2.0 and USB 3.1 (gen1) onboard
- 2x SATA III
- Onboard support for M.2 SSD (SATA/PCIe)
- Onboard support for M.2 WLAN/Bluetooth module
- Dual GbE LAN onboard
- Intel® integrated TPM V2.0 onboard
- WideRange internal/external DC Input (8V - 24V)
- HW Watchdog onboard
- RS-232/485/422 support onboard
Parameters
| Market: | Industrial mainboard |
| Form Factor: | miniSTX |
| Power Input: | 8-24V |
| Processor: | Intel® Pentium® Silver Processor J5005 (Gemini lake) |
| Size: | 140x148mm |
| Operating temperature: | -30 ~ +70 °C |
| Memory type: | DDR4 |
| DDR: | SO-DIMM |
