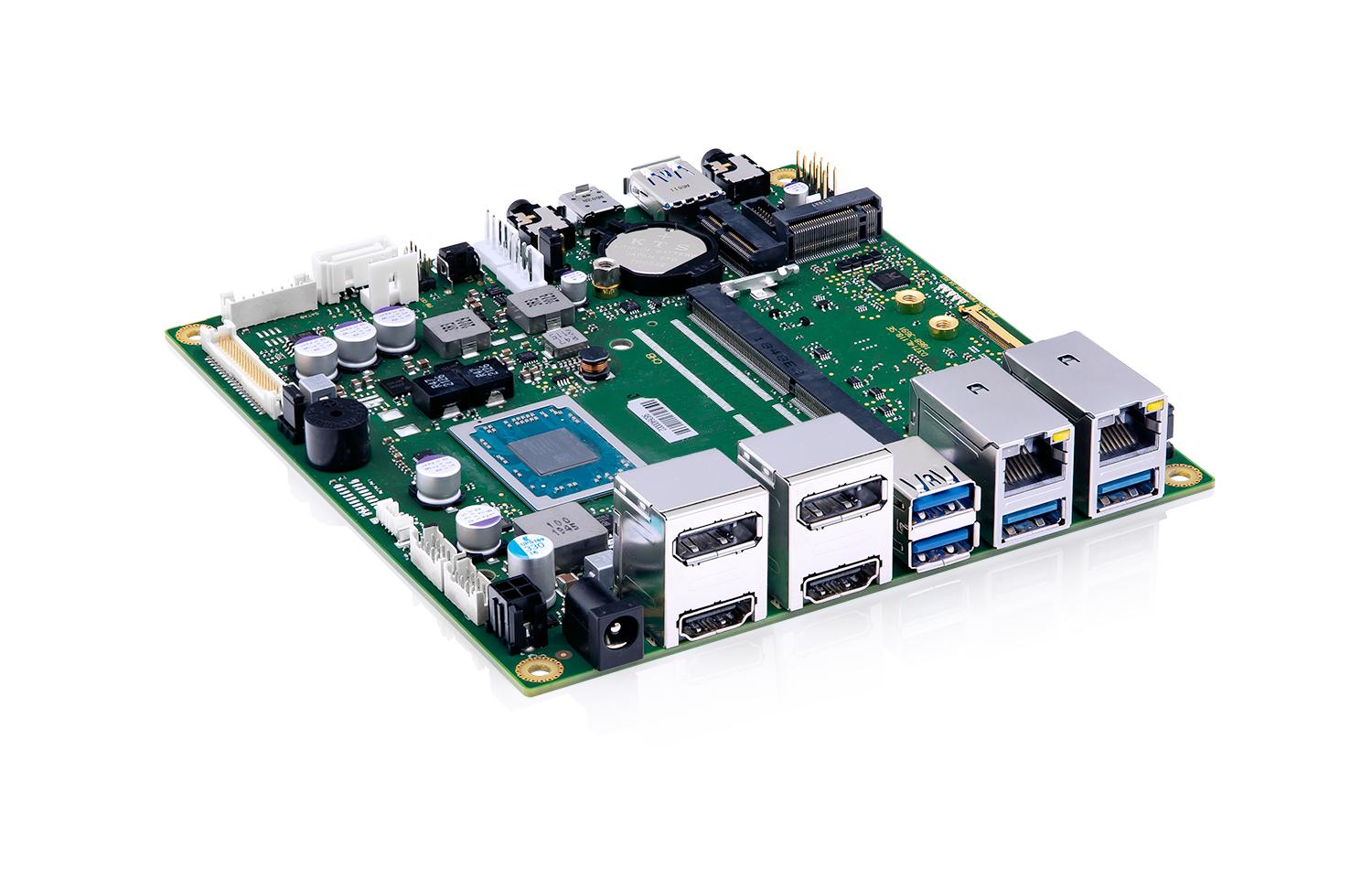

D3724-R3 mSTX Kontron
cat. num.: F5120-V205 New product
D3724-R3 is industrial motherboard produced in Germany from Kontron. This mSTX motherboard with AMD R2514 CPU is used in casino gaming, medical displays.
mini-STX, Ryzen R2514
DDR4 2400/2666, ECC option
AMD Radeon Vega Graphics (within SoC)
Manufacturer
Availabillity:
in stock
Inquiry
Description
Processor:
- R3: R2514 Quad-Core 2.1/3.7GHz (max TDP: 12W / 15W / 25W / 35W)
- CPU TDP Limited option is possible
Graphics:
- AMD Radeon™ Vega Graphics (within SoC)
- Up to 3x DP V1.4 / HDMI V2.0b / 1x eDP V1.4 / 1x LVDS
Memory:
- 2x DDR4 2400/2666, with ECC option
- Max capacity: 32GB
Product Features:
- Dual Channel LVDS (24Bit) and eDP V1.3 (4k)
- 8Bit GPIO and HD Audio onboard
- USB2.0 and USB 3.2 (Gen1/Gen2) onboard
- 1x SATA III onboard
- 1x M.2 SSD (Key-M: 2230/2242/2280)
- 1x M.2 WLAN/Bluetooth (Key-E: 2230)
- Dual GbE LAN onboard incl. Teaming Support
- AMD integrated TPM V2.0 onboard
- Auto Dual Range internal/external DC input (12 V or 19-28 V)
- HW Watchdog onboard
- RS-232/485/422 support
Usage:
- Casino Gaming, Small Industrial pc, Medical Displays
Recommended accessories:
Parameters
| Market: | Industrial mainboard |
| Form Factor: | Mini STX |
| Power Input: | Auto dual range internal/external DC input (12V or 19-28V) |
| Processor: | R3: R2514 Quad-Core 2.1/3.7GHz (max TDP: 12W / 15W / 25W / 35W) |
| PCIe/mPCIe/PCI: | 1x M.2 SSD (Key-M: 2230/2242/2280), 1x M.2 WLAN/Bluetooth (Key-E: 2230) |
| LAN/USB/COM: | 8Bit GPIO and HD Audio onboard, USB2.0 and USB 3.2 (Gen1/Gen2) onboard |
| Interface: | 1x SATA III onboard |
| Size: | 140 x 148mm |
| Operating temperature: | -10-60 °C |
| Memory type: | 2x DDR4-2400/2666, up to 32GB |
| DDR: | SO-DIMM |
