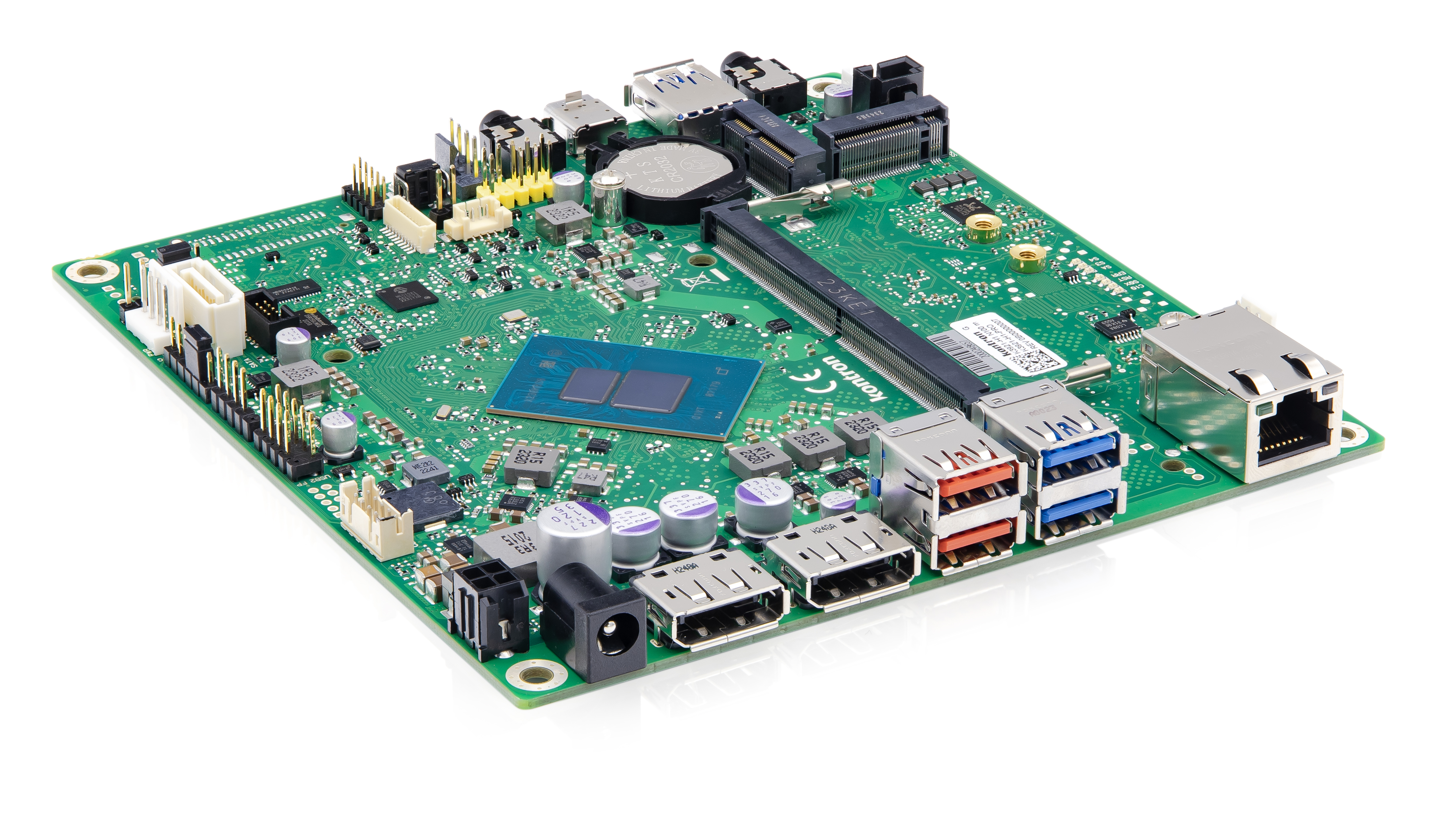

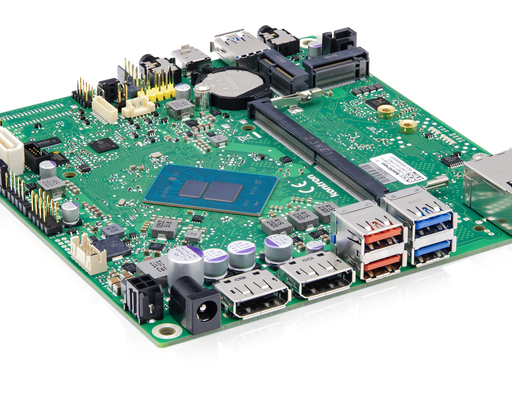

K3921-H6 mSTX Kontron
cat. num.: F5120-V245 New product
K3921-H6 is industrial motherboard produced in Germany from Kontron. This mSTX motherboard with CPU Intel Alder Lake i3-N305 is used in Kiosks, Digital Signage, HMI
mini-STX, Alder Lake i3-N305
DDR5-4800MHz
Industrial Series
Manufacturer
Availabillity:
on request
Inquiry
Description
Processor:
- Intel Alder Lake N SoC Series
- H6: Intel® Core™ i3 N305 (8C/15W) SoC
Graphics:
- Intel® UHD Graphics driven by Intel® Xe with up to 24 execution units (EUs)
- Up to 3x DPP V1.4a (up to 4K resolution1)
- 1x Embedded DP (eDP V1.4b up to 4K resolution2)
Memory:
- DDR5 4800 SDRAM
- 1x SO DIMM socket, up to 32 GByte memory, non-ECC
Product Features:
- HD Audio onboard
- 3x USB 2.0, 3x USB 3.2 Gen1, 2x USB 3.2 Gen2, 1x USB 3.2Gen1 (Front Type-C) with DP Alt mode
- 1x Realtek GbE LAN
- 1x SATA 6G
- 1x M.2 2230/42/80 (Key-M, PCIe x1 Gen3/NVMe SSD + SATA SSD)
- 1x M.2 2230 (Key-E, WLAN/Bluetooth modules, CNVi support only)
- Intel® integrated iTPM V2.0
- DualRange internal/external DC input (12V / 19-28V), PowerDelivery Sink Mode (20V DC-In via USB-C)
- 1x RS-232 support onboard
Usage:
- Kiosks,Thin clients,...
- Designed for 24/7 use, with temperature range, up to 50°C
Recommended accessories:
Parameters
| Market: | Industrial mainboard |
| Form Factor: | miniSTX |
| Power Input: | DualRange internal/external DC input (12V / 19-28V) PowerDelivery Sink Mode (20V DC-In via USB-C) |
| Processor: | Intel Alder Lake N SoC Series, H6: Intel® Core™ i3 N305 (8C/15W) SoC |
| LAN/USB/COM: | 3x USB 2.0, 3x USB 3.2 Gen1, 2x USB 3.2 Gen2, 1x USB 3.2Gen1 (Front Type-C) with DP Alt mode |
| Interface: | 1x SATA 6G 1x M.2 2230/42/80 (Key-M, PCIe x1' Gen3/NVMe SSD + SATA SSD) 1x M.2 2230 (Key-E, WLAN/Bluetooth modules, CNVi support only) |
| Size: | 140x148 mm |
| Operating temperature: | 0-50 °C |
| Memory type: | DDR5 4800MHz |
| DDR: | SO-DIMM |
