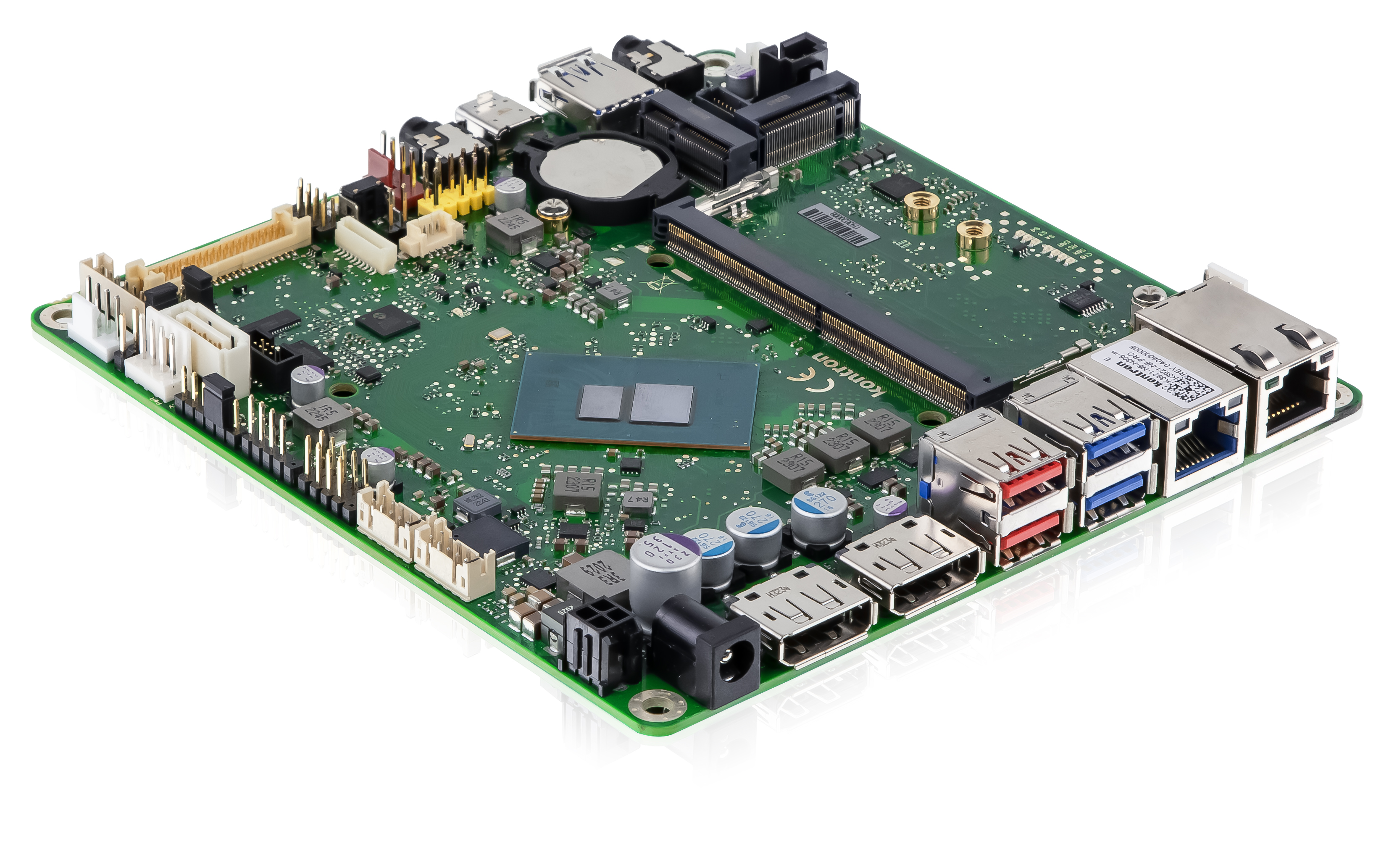

K3921-N6 mSTX Kontron

Processor:

• Intel Alder Lake N SoC Series
• N6: Intel® Core i3 N305 (8C/15W) SoC

Graphics:

• Intel® UHD Graphics driven by Intel® Xe with up to 32 execution units (EUs)
• Up to 3x DPP V1.4a (up to 4K resolution)
• 1x Embedded DP (eDP V1.4b up to 4K resolution)
• 1x Dual-Channel 24bit LVDS

Memory:

• DDR5 4800 SDRAM
• 1x SO DIMM socket, up to 32 GByte memory, non-ECC

Product Features:

• 8 Bit GPIO & HD Audio onboard
• 3x USB 2.0, 3x USB 3.2 Gen1, 2x USB 3.2 Gen2, 1x USB 3.2 Gen1 (Front Type-C) with DP Alt mode
• 1x Realtek GbE LAN, 1x 2,5GbE incl. Teaming
• 1x SATA 6G
• 1x M.2 2230/42/80 (Key-M, PCIe x1 Gen3/NVMe SSD modules)
• 1x M.2 2230 (Key-E, WLAN/Bluetooth modules, CNVi support only)
• Intel® integrated iTPM V2.0
• DualRange internal/external DC input (12V / 19-28V), PowerDelivery Sink Mode (20V DC-In via USB-C)
• 2x RS-232 support onboard (1x incl. RS485/422)

Usage:

• Kiosks, Digital Signage, HMI,...
• Designed for 24/7 use, with enhanced temperature range, up to 60°C

Recommended accessories:

• Active cooler

• Passive cooler
