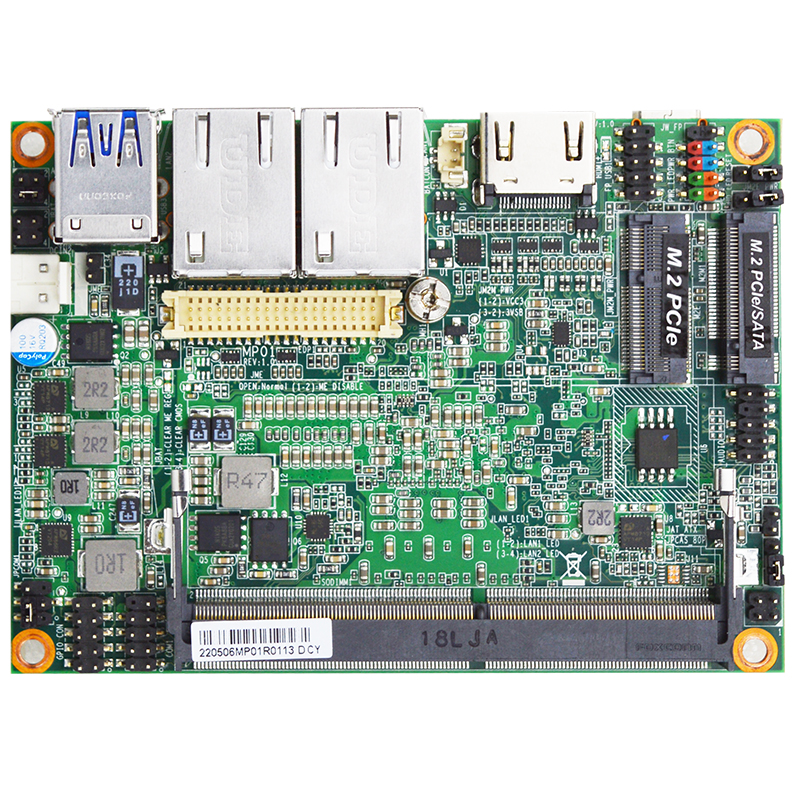

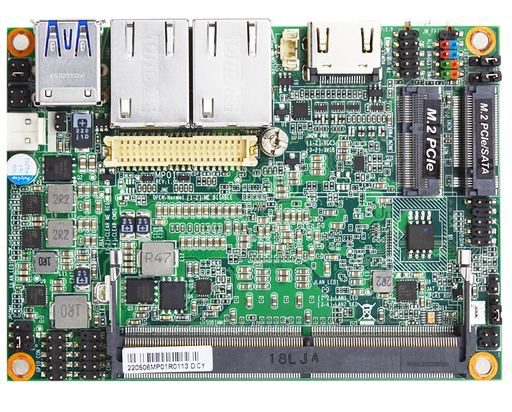

MP01 Series
cat. num.: MP01_S
MP01 Series
Intel® Elkhart Lake Processor
DDR4 up to 32GB System memory, 3200MHz
1x HDMI, 1x eDP
Operating temperature: -10~50°C
Manufacturer
Links
Availabillity:
on request
Inquiry
Description
Processor system:
- Intel® Elkhart Lake N6210 SoC Processor
- MP01-62100 (N6210)
- MP01-62103 (N6210, 32GB eMMC)
Memory:
- 1x DDR4 3200MHz SO-DIMM up to 32GB
Product features:
- 1x COM, 2x USB3.1 (Gen.2) Type-A, 2x USB2.0, 1x USB3.1 (Gen.2) Type-C
- 1x M.2 M-key 2242 (SATA/PCIe Gen.3 x2 interface) support NVME, 1* M.2 E-key 2230 (USB2.0/PCIe Gen.3 x1 interface)
- Onboard 32GB eMMC option (MP01-62103)
- 12V DC-in
- 1x eDP 1.3b (Max resolution: 4096x2160@60Hz), 1x HDMI 2.0b (Max resolution: 4096x2160@60Hz)
- Support Dual Displays
- 2x RJ45, 1x GPIO
- Size: 100 x 72 mm
Usage:
- Display signage, Machine learning
Parameters
| Form Factor: | Pico-ITX |
| Power Input: | 12V DC-in |
| Processor: | MP01-62100 (N6210) / MP01-62103 (N6210, 32GB eMMC) |
| PCIe/mPCIe/PCI: | 1x M.2 M-key 2242 (SATA/PCIe Gen.3 x2 interface) support NVME, 1* M.2 E-key 2230 (USB2.0/PCIe Gen.3 x1 interface) |
| LAN/USB/COM: | 1x COM, 2x USB3.1 (Gen.2) Type-A, 2x USB2.0, 1x USB3.1 (Gen.2) Type-C, 2x RJ45 |
| Size: | 100 x 72 mm |
| Operating temperature: | -10~50°C |
| Memory type: | 1x DDR4 3200MHz SO-DIMM up to 32GB |
