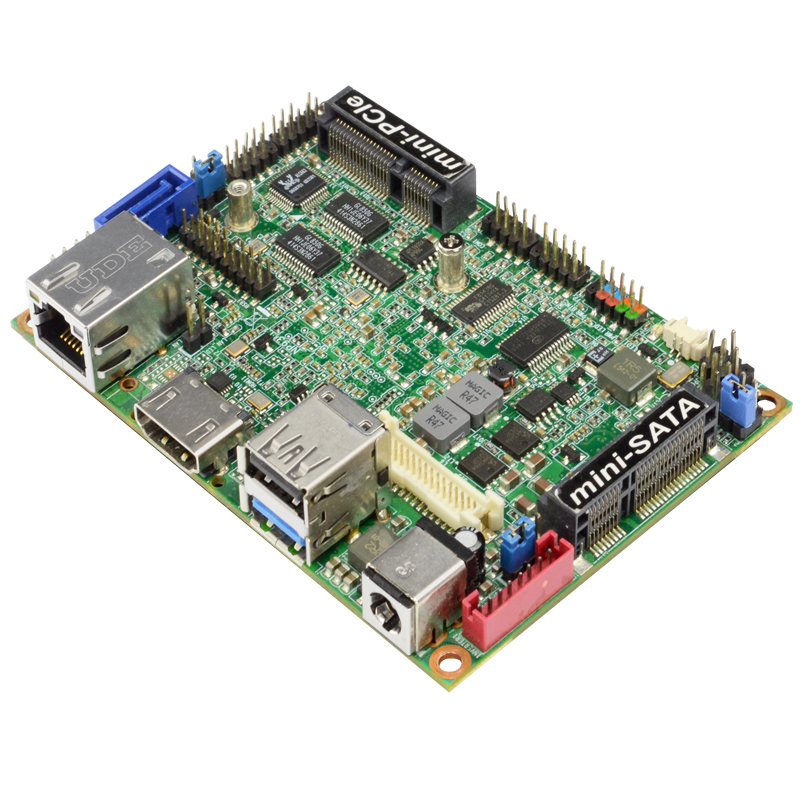

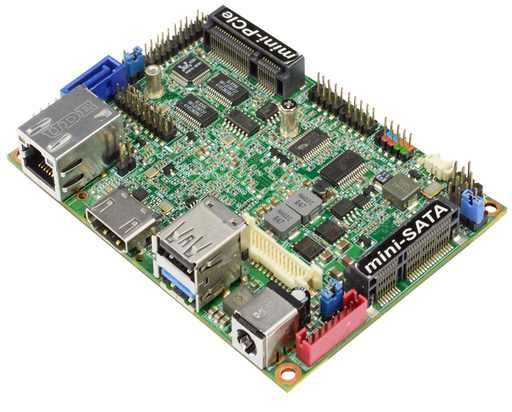

NP93 Series
cat. num.: NP93_S
NP93 Series
Intel Bay Trail-M SoC Processor
On-board 2GB DDR3L 1333MHz System memory
1x HDMI / VGA, 1x LVDS Dual display
Wide temp: -20~60°C
Manufacturer
Links
Availabillity:
on request
Inquiry
Description
Processor system:
- JNP93-2930 (N2930) Quad Core 1.83GHz SoC (TDP 7.5W)
- JNP93-2807 (N2807) Dual Core 1.58GHz SoC (TDP 4.3W)
Memory:
- 2GB onboard DDR3L 1333MHz Single Channel
Product features:
- 1x SATAII (3GB/s)
- 1x mSATA (Full size)
- 1x Mini-PCIe (half size)
- 1x VGA (Option with HDMI, Max res.: 1920x1200@60Hz)
- 1x HDMI (Option with VGA, Max res.: 1920x1200@60Hz)
- 1x 24-bits Dual channel LVDS (Max res.: 1920x1200@60Hz)
- Support dual displays
- 7x USB2.0
- 1x USB3.0
- 2x COM
Usage:
- Display signage, Machine learning
Parameters
| Market: | Digital Signage |
| Power Input: | 12V DC-in |
| Processor: | JNP93-2930 (N2930) Quad Core 1.83GHz SoC (TDP 7.5W) / JNP93-2807 (N2807) Dual Core 1.58GHz SoC (TDP 4.3W) |
| PCIe/mPCIe/PCI: | 1x Mini-PCIe |
| LAN/USB/COM: | 7x USB2.0, 1x USB3.0, 2x COM, 1x RJ45 |
| Video input: | 1x VGA (Option with HDMI, Max res.: 1920x1200@60Hz) 1x HDMI (Option with VGA, Max res.: 1920x1200@60Hz) 1x 24-bits Dual channel LVDS (Max res.: 1920x1200@60Hz) |
| Interface: | 1x mSATA, 1x SATAII |
| Size: | 100 x 72 mm |
| Operating temperature: | -20 ~ +60°C |
| Memory type: | 2GB onboard DDR3L 1333MHz |
