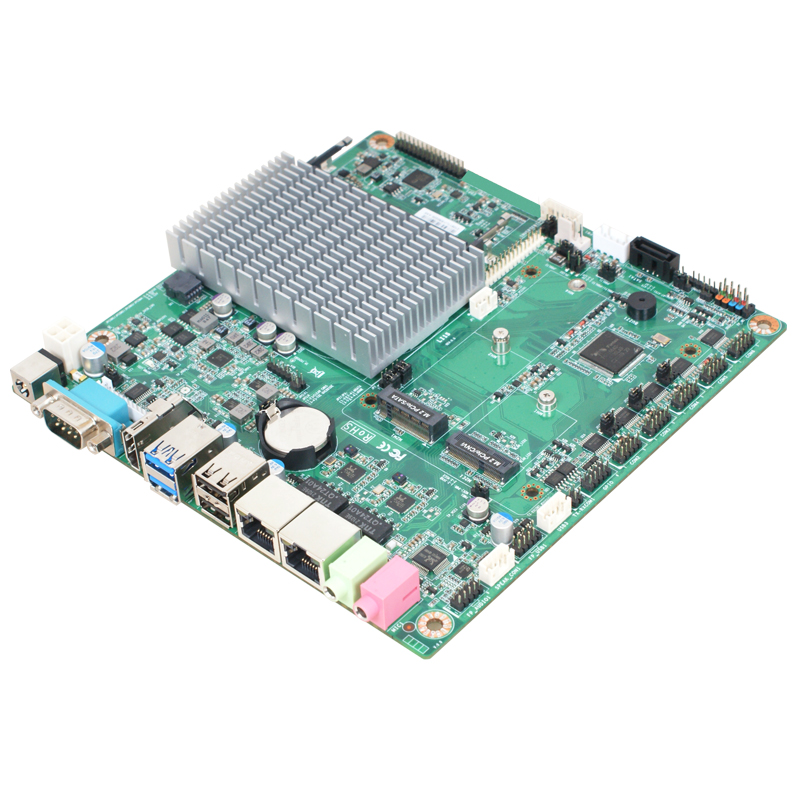

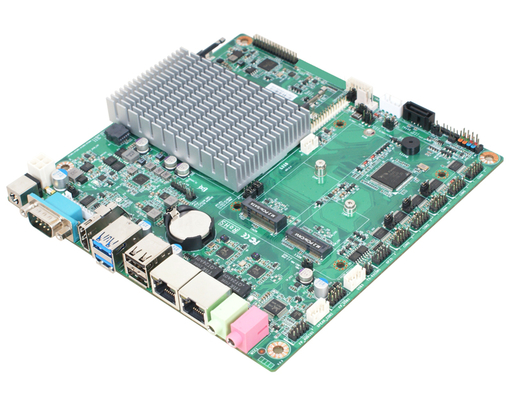

JLI1S-5L
cat. num.: LI1S-5L
JLI1S-5L is industrial motherboard produced by Jetway. This Thin mITX motherboard with Intel Gemini Lake J4125 is used in Digital signage and industrial PCs
Intel® Gemini Lake J4125 2.0GHz/QC Core MCP Processor (10W, Turbo 2.7GHz)
1x DDR4 2400MHz SO-DIMM up to 8GB
Operating temp.: 0°C ~ 60°C
Manufacturer
Links
Availabillity:
on request
Inquiry
Description
Processor:
- Intel® Gemini Lake J4125 2.0GHz/QC Core MCP Processor (10W, Turbo 2.7GHz)
- Intel J4125 SoC chipset
- AMI 128Mb Flash ROM BIOS
Memory:
- 1x DDR4 2400MHz SDRAM SO-DIMM up to 8GB
Product features:
- 2x RS232/485, 4x RS232, 2x USB3.0, 5x USB2.0
- 2x Realtek® RTL8119I GbE, 1x M.2 E-key support WIFI/BT
- 1x SATAIII, 1x M.2 M-key
- 1x HDMI (Max Res.: 3840x2160@24Hz, Co-lay VGA), 1x eDP (Max Res.: 3840x2160@60Hz), 1x LVDS (Max Res.: 2560×1600@60Hz, Co-lay eDP)
- Support Triple Displays
- 12V DC-in
Parameters
| Market: | Industrial |
| Power Input: | 12V DC-in |
| Processor: | Intel® Gemini Lake J4125 2.0GHz/QC Core MCP Processor (10W, Turbo 2.7GHz) |
| PCIe/mPCIe/PCI: | 1x M.2 E-key support WIFI/BT |
| LAN/USB/COM: | 2x RS232/485, 4x RS232, 2x USB3.0, 5x USB2.0 |
| Video input: | 1x HDMI (Max Res.: 3840x2160@24Hz, Co-lay VGA), 1x eDP (Max Res.: 3840x2160@60Hz), 1x LVDS (Max Res.: 2560×1600@60Hz, Co-lay eDP) |
| Interface: | 1x SATAIII, 1x M.2 M-key |
| Size: | 170 x 170 mm |
| Operating temperature: | 0~60°C |
| Memory type: | 1x DDR4 2400MHz SDRAM up to 8GB |
| DDR: | SO-DIMM |
