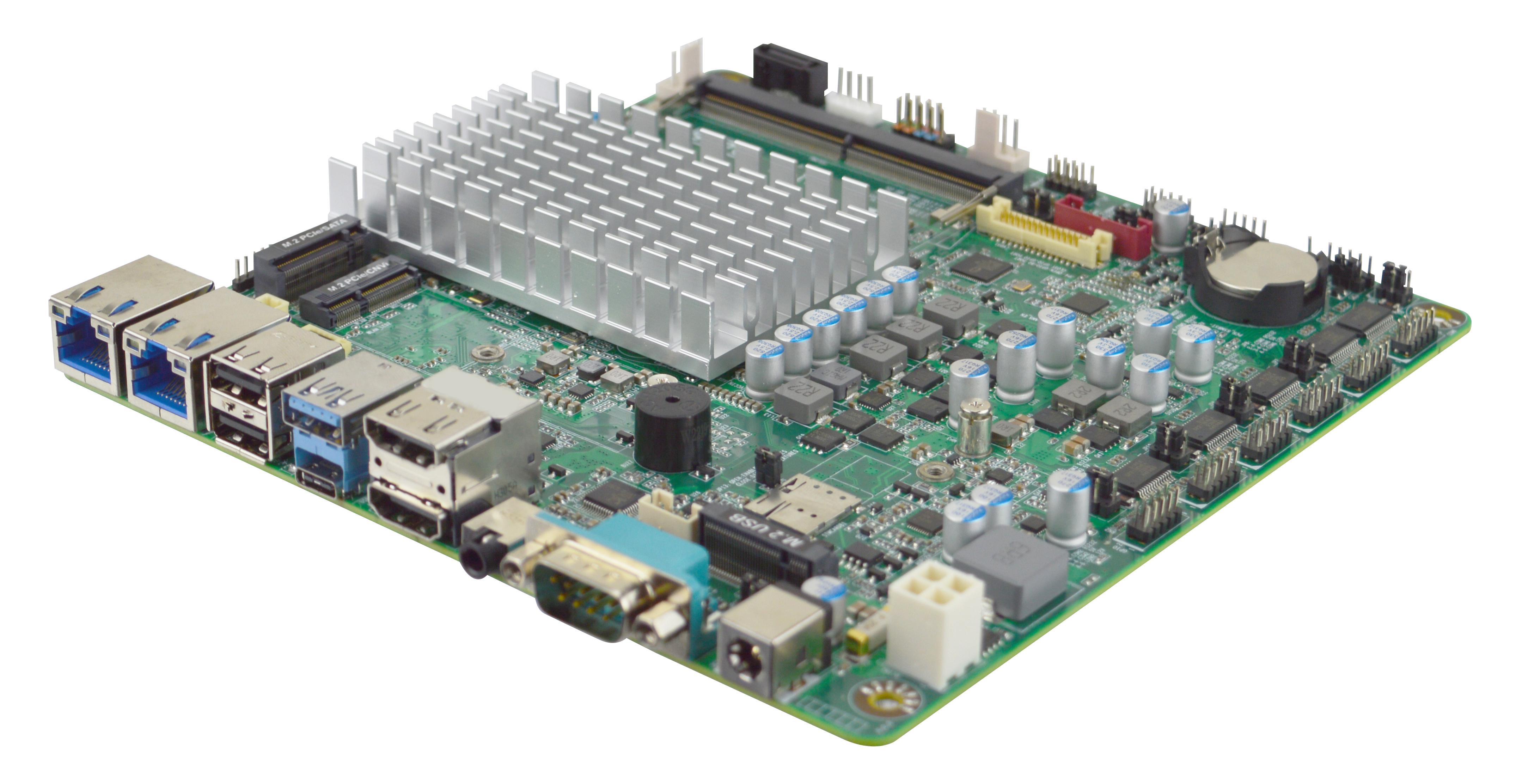

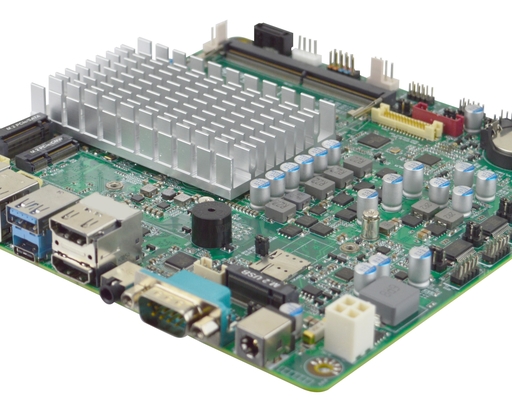

JMTX-ADN1-N97 Series
cat. num.: JMTX-ADN1-N97 New product
JMTX-ADN1-N970 is industrial motherboard produced by Jetway. This Thin mITX motherboard with Intel Alder Lake is used in Digital signage and industrial PCs.
Intel® 12th Alder Lake-N SoC Processor
1x DDR5 4800MHz SO-DIMM up to 32GB
Operating temp.: 0°C ~ 60°C
Manufacturer
Links
Availabillity:
on request
Inquiry
Description
Processor:
- Intel® 12th Alder Lake-N SoC Processor
- AMI Flash ROM BIOS
Model:
- JMTX-ADN1-N97000 (CPU: N97,Default)
- JMTX-ADN1-N97002 (CPU: N97,w/TPM2.0)
- JMTX-ADN1-N97004 (CPU: N97,w/onboard 64GB eMMC)
- JMTX-ADN1-N97008 (CPU: N97,w/TPM2.0, onboard 64GB eMMC)
Memory:
- 1x DDR5 4800MHz SO-DIMM up to 32GB
Product features:
- 2x HDMI 2.0b (Max Resolution 4096x2304 @60Hz), 1x 24 Bit Dual Channel LVDS/eD (Max Resolution 1920x1200@60Hz)
- Support Triple Displays
- 2x Intel i225-V 2.5GbE
- 1x USB3.2 (Gen.2), 1x USB3.2(Gen.2) Type-C, 6x USB2.0
- 1x M.2 M‐key, 2242/2280, 1x M.2 E‐key, 2230, 1x M.2 B-key (3042/3052), 1x SATAIII (6Gb/s)
- Onboard TPM2.0(Option)
- 1x Nano SIM Card Slot
- 1x GPIO
- 12-28V DC in, AT/ATX Supported
- Windows 10/11, Linux
Usage:
- Industrial automation
- Kiosks
- Digital signage
- POS
Parameters
| Market: | Industrial |
| Form Factor: | Thin mini-ITX |
| Power Input: | 12-28V DC-in, AT/ATX Supported |
| Processor: | Intel® 12th Alder Lake-N SoC Processor |
| PCIe/mPCIe/PCI: | 1x M.2 M-key, 2242/2280, 1x M.2 E-key, 2230, 1x M.2 E.key 3042/3052 |
| LAN/USB/COM: | 1x USB3.2 (Gen.2), x USB3.2(Gen.2)Type-C, 6x USB2.0 |
| Interface: | 1x SATAIII (6Gb/s) |
| Size: | 170 x 170 mm |
| Operating temperature: | 0~60°C |
| Memory type: | 1x DDR5 4800MHz SO-DIMM up to 32GB |
| DDR: | SO-DIMM |
