EMKO EM-ENT-S
cat. num.: EM-ENT-S

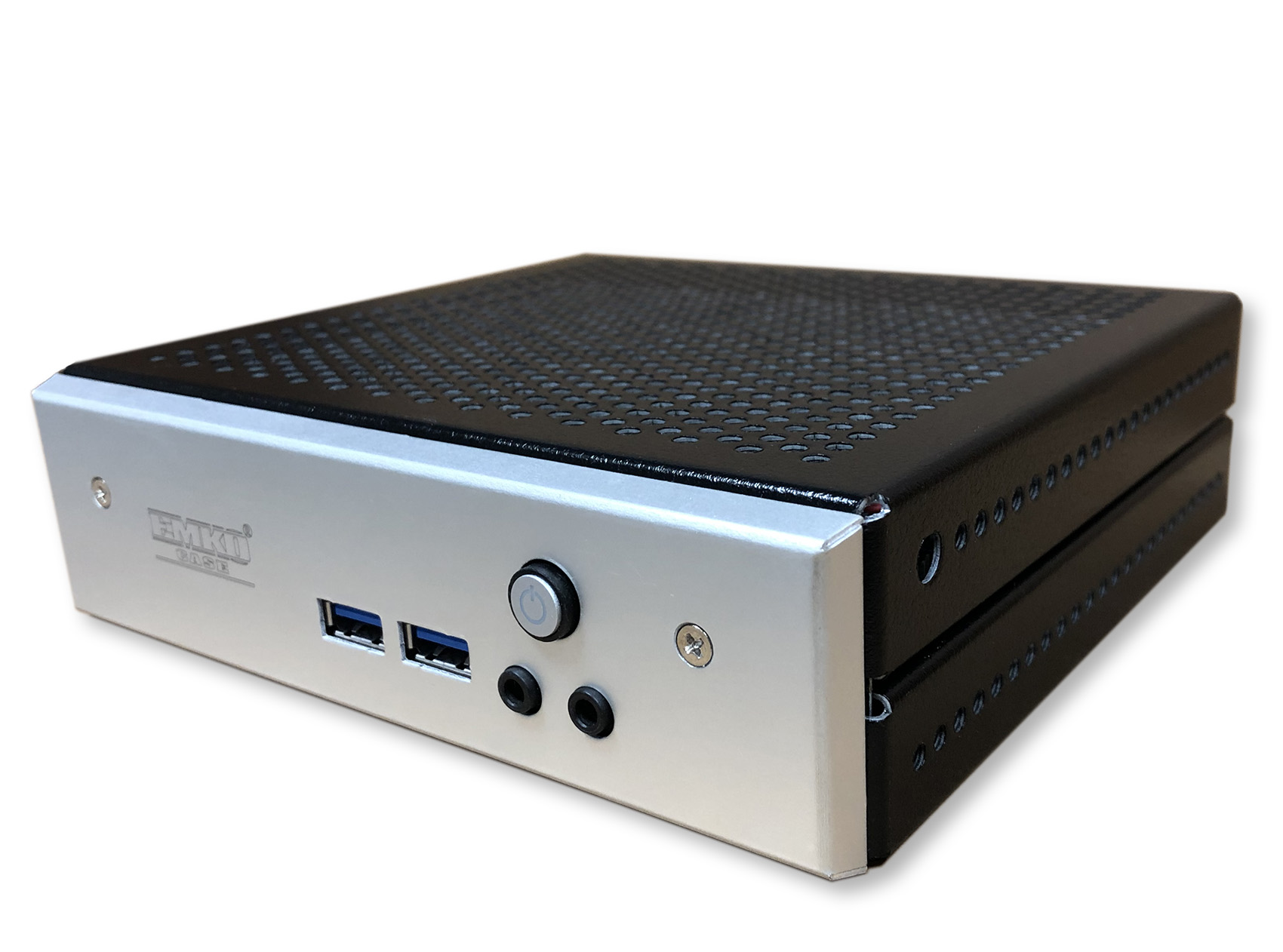

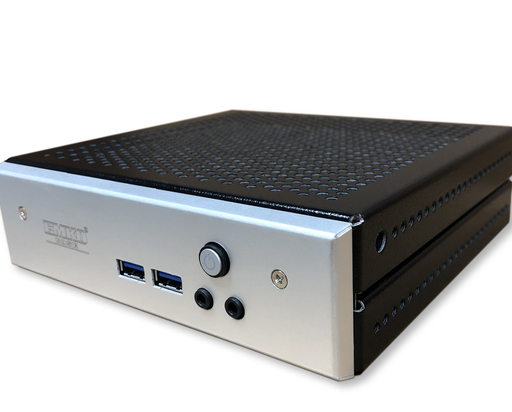

EM-ENT-S is a small industrial PC. It is a customized mini PC, made in Czech Republic. This PC is used in digital signage and other industrial solutions.
Intel Gemini Lake SoC
2xDP, 2xLAN, 2xCOM
Wide temp -30~50°C
Manufacturer
Availabillity:
on request
Inquiry
Description
Mainboard:
- Kontron D3544-Sx, mini-STX, 24/7 industrial series (Designed by Fujitsu)
Processor:
- Intel® Celeron J4005 (DC @2.7GHz) / Celeron J4105 (QC @2.5GHz) / Pentium J5005 (QC @2.8GHz)
- integrated Intel® UHD Graphics 600 / 605
- TDP 10W
Memory:
- DDR4 2400MHz
-
1x SO-DIMM socket
Product features:
- Supports 2 display configuration by 2x DisplayPort
- 2x COM (optional) - COM1 (RS 232/422/485), COM2 (RS 232)
- 2.5" SATA internal HDD (option)
- Galvanized pre-coated metal sheet chassis, colour black / white / silver, ALU front panel (bended or milled) with custom logo (silk print or laser), size 153 × 160 × 46mm
- Wide temperature range endurance -30~40°C fanless / -30~50°C with active fan
- Vesa / Wall / DIN mounting options
Parameters
| Market: | Digital Signage |
| Form Factor: | Mini-STX |
| Power Input: | DC 8-24V |
| Processor: | Intel® Celeron J4005 (DC @2.7GHz) / Celeron J4105 (QC @2.5GHz) / Pentium J5005 (QC @2.8GHz) |
| LAN/USB/COM: | 2x RJ45, 2x USB 3.1 Gen1, 4x USB 2.0, 2x COM optional |
| Interface: | 2x SATA III 6Gb/s, 1x M.2 2242 / 2260 / 2280 (SATA / PCIe), 1x M.2 2230 |
| Size: | 153 × 160 × 46mm |
| Operating temperature: | -30 ~ +50°C |
| Memory type: | DDR4-2400 |
| DDR: | SO-DIMM |
