HB650I24 Series
cat. num.: HB650I24_Series New product

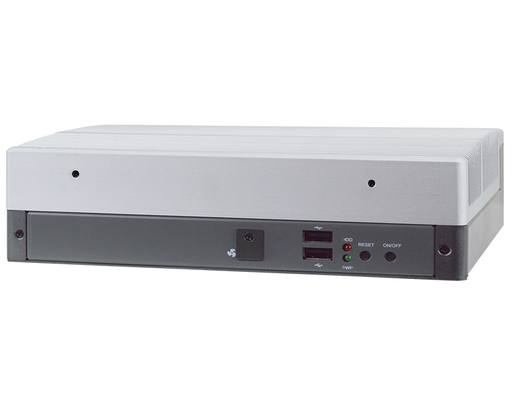

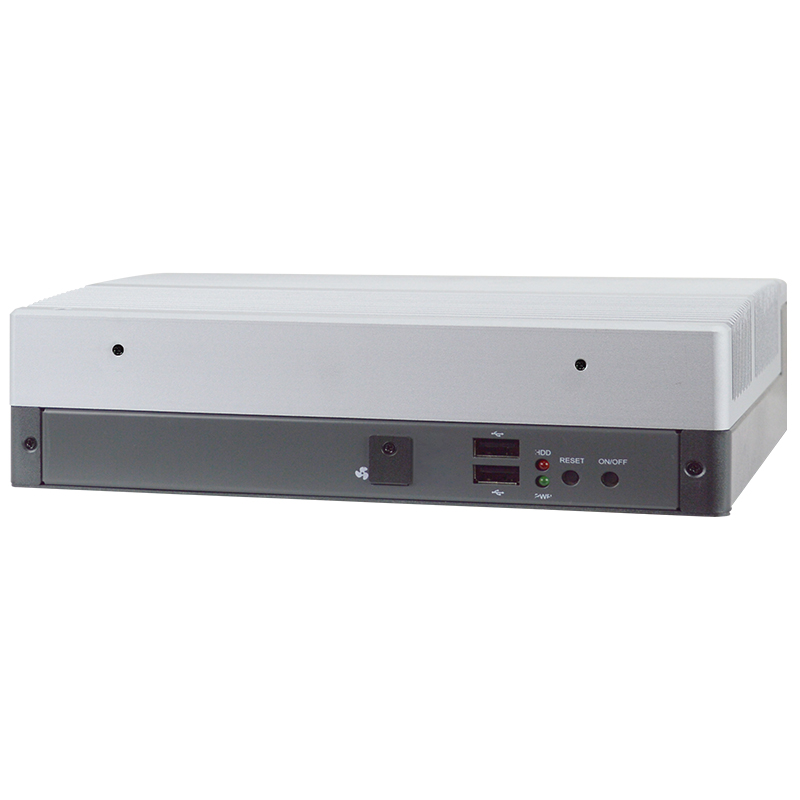

HB650I24 Series a small fanless PC from Jetway. The core of this PC is a motherboard with an new generation of INTEL processors.
Intel 13. generace
4x Video out
WideTemp -20~60°C
Manufacturer
Links
Availabillity:
on request
Inquiry
Description
Mainboard:
- Jetway MI24
Processor:
- Intel processor 13th. generation
- HB650I24-1335U
- HB650I24I-1335U (WiFi)
- HB650I24-1335UE
- HB650I24I-1335UE (WiFi)
- Intel® Iris® Xe Graphics, shared memory
Memory:
- DDR5 5200MHz
- 2x slot SO-DIMM, max. 64GB
Product features:
- 4 monitors support - 2x HDMI 2.0b (Max Resolution 4096x2304 @60Hz), 2x DP1.4a (max resolution 4096x2304@60Hz) from Type-C, 1x 24 Bit Dual Channel LVDS/eD (Max Resolution 1920x1200@60Hz)
- 2x LAN (Intel i225-LM 2.5GbR and Intel i225-V 2.5GbE)
- 2x USB3.2 (Gen.2), 1x USB3.2(Gen.2) Type-C, 6x USB2.0
- 2x M.2 M‐key, 1x M.2 E‐key, 1x M.2 B-key
- 5x COM port
- Support TPM2.0 (option)
- 1x Mic and audio connector
- 1x SIM Card Slot
- 12-36 DC in, AT/ATX Supported
Parameters
| Market: | Industrial |
| Form Factor: | Mini-ITX |
| Processor: | Intel® 13th Raptor Lake-N SoC Processor |
| PCIe/mPCIe/PCI: | 2x M.2 M-key, 1x M.2 E-key, 1x M.2 E.key |
| LAN/USB/COM: | 2 x RJ45, 2x USB3.2 (Gen.2), 2x USB3.2(Gen.2)Type-C, 6x USB2.0 |
| Size: | 224 x 199 x 63 mm |
| Operating temperature: | -20 ~ +60°C |
| Memory type: | 2x DDR5 5200MHz SO-DIMM up to 64GB |
| DDR: | SO-DIMM |
