- EMKO EM-VAL-I33
EMKO EM-VAL-I33
cat. num.: EM-VAL-I33

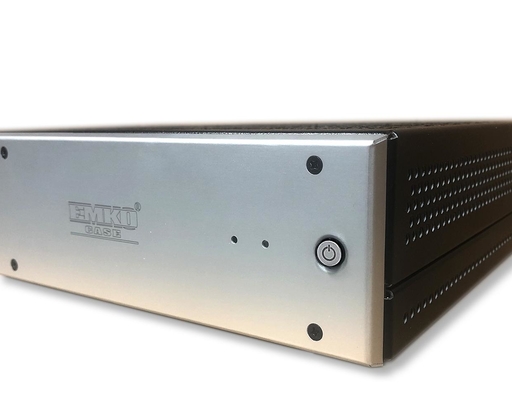

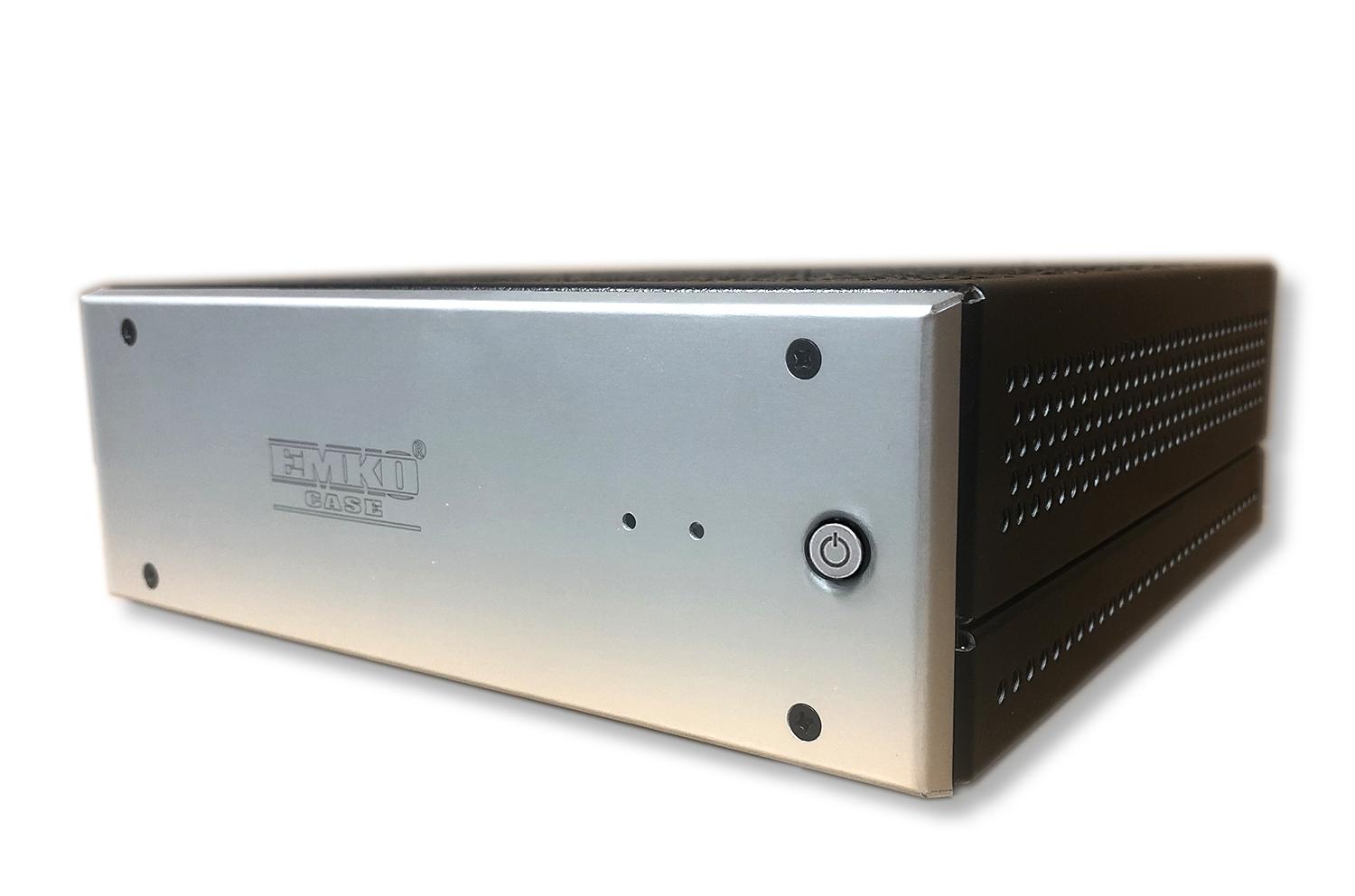

EM-VAL-I33 is a small industrial PC. It is a customized PC, made in Czech Republic.
Intel Q370, mini-ITX
Intel 8/9th gen. CPU
2xDP,DVI,2xCOM
Active 0~60°C
Manufacturer
Availabillity:
on request
Inquiry
Description
Mainboard:
- Fujitsu D3633-S, mini-ITX, 24/7 Industrial series
Procesor:
- Intel® 8th & 9th generation Core i3 / i5 / i7 / i9 Processors
- Intel® Pentium® / Intel® Celeron® processor series
- Socket LGA1151
- up to TDP 65W
Memory:
- DDR4 2666MHz
-
2x SO-DIMM socket, max. 64GB
Product features:
- Supports 3 display configuration by 2x DisplayPort v1.2, 1x DVI-D
- 1x COM1 (RS 232) included, COM2 (RS 232/422/485) optional
- Supporting Intel AMT 12.0 / vPro
- 4x SATA III including RAID 0/1/5/10
- Galvanized metal sheet chassis, ALU front panel (bended or milled) with custom logo (silk print or laser), color black / white / silver, size 192 × 203 × 68mm
- Operating temperature range endurance: 0~60°C with active fan
- Vesa / Wall mounting options
Parameters
| Market: | Industrial |
| Form Factor: | Mini-ITX |
| Power Input: | Dual DC 12V / ATX |
| Processor: | Intel® Core™ i9 / i7 / i5 / i3 – (8/9th gen.) / Pentium® / Celeron® processor series |
| LAN/USB/COM: | 2x RJ45, 4x USB 3.1 Gen1 (2x optional), 2x USB 3.1 Gen2, 6x USB 2.0 (2x opt.), 2x COM (1x opt.), 2x PS/2 |
| Interface: | 4x SATA III 6Gb/s, 1x M.2 2280/2260/2242 (PCIe NVME) |
| Size: | 192 × 203 × 68mm |
| Operating temperature: | Active 0 ~ 60°C |
| Memory type: | DDR4-2666 |
| DDR: | 2x SO-DIMM |
