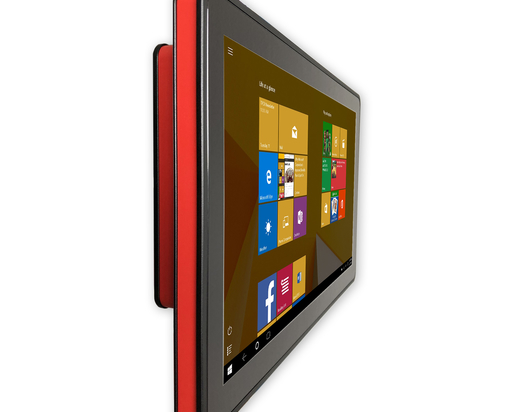

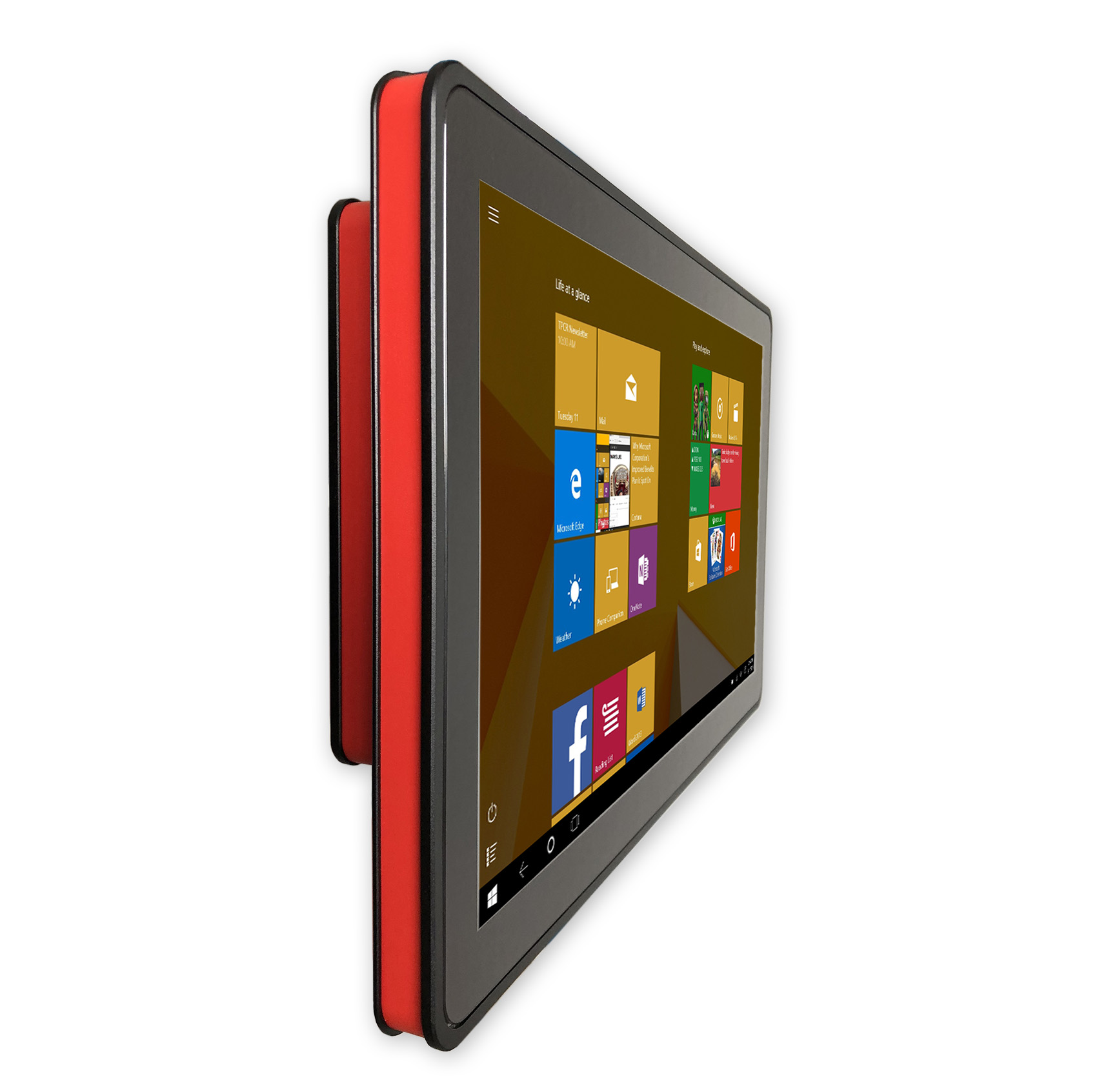

EMKO EM-TOUCH-S15
cat. num.: EM-TOUCH-S15
EM-TOUCH-S15
15.6" FHD Touch panel
Intel Gemini Lake SoC
Wide temp -10~50°C
Fanless
Manufacturer
Availabillity:
on request
Inquiry
Description
LCD panel:
- 15.6" TFT-LCD, Full HD 1920 x 1080, Anti-Glare
- White Luminance 500 cd/m2
- Contrast ratio 1000:1
- Viewing angle 178°
- Active area size 344 x 194mm
- TOUCH GLASS (optional) - capacitive technology (finger / pen), multitouch compatibility with Windows, Linux
Mainboard:
- Kontron D3544-Sx, mini-STX, 24/7 industrial series (designed by Fujitsu)
Processor:
- Intel® Celeron J4005 (DC @2.7GHz) / Celeron J4105 (QC @2.5GHz) / Pentium J5005 (QC @2.8GHz)
- integrated Intel® UHD Graphics 600 / 605
- TDP 10W
Memory:
- DDR4 2400MHz
-
1x SO-DIMM socket, max. 16GB
Product features:
- 2x COM (RS-232/422/485) optional
- Supports 2 display configuration by 2x DisplayPort
- Milled ALU chassis with durable finish and custom color combination option
- Dimensions 398 × 248 × 65mm, weight TBD
- Wide temperature range endurance -10~50°C
- Approved for 24/7 usage
- IP20 protection (IP50 as option with temp range -10~40°C), front panel with IP65 (TBD)
- Vesa / Wall mounting options
Parameters
| Market: | Industrial |
| Form Factor: | Mini-STX |
| Power Input: | AC 90-264V / DC 8-24V option |
| Processor: | Intel® Celeron J4005 (DC @2.7GHz) / Celeron J4105 (QC @2.5GHz) / Pentium J5005 (QC @2.8GHz) |
| LAN/USB/COM: | 2x RJ45, 4x USB 2.0, 2x USB 3.1 Gen1 optional, 2x COM optional |
| Interface: | 2x SATA III 6Gb/s, 1x M.2 2242 / 2260 / 2280 (SATA / PCIe), 1x M.2 2230 |
| Size: | 398 × 248 × 65mm |
| Operating temperature: | -10 ~ +50°C |
| Memory type: | DDR4-2400 |
| DDR: | SO-DIMM |
