HPC270SC-FP610
cat. num.: HPC270SC-FP610 New product
HPC270SC-FP610

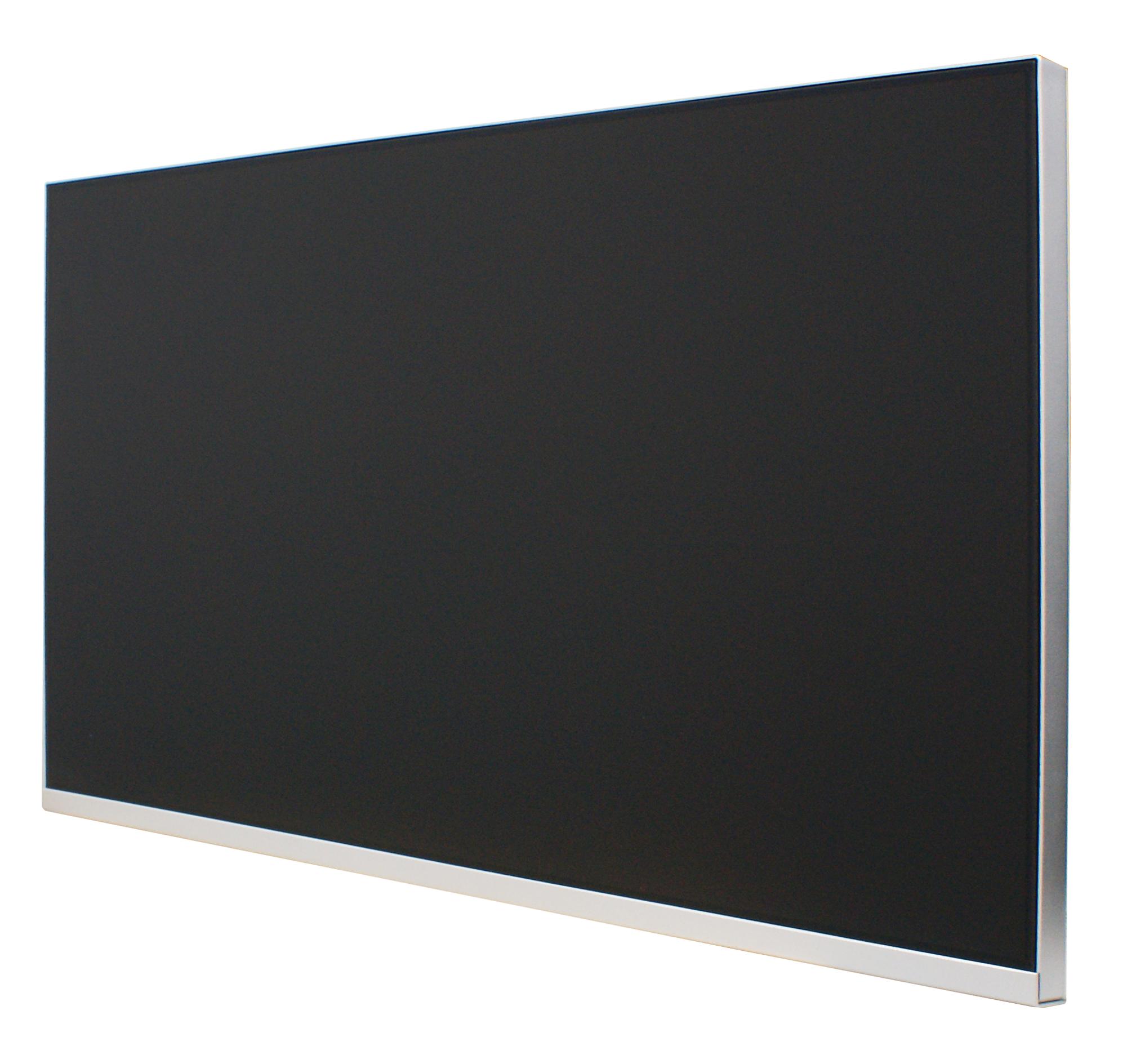

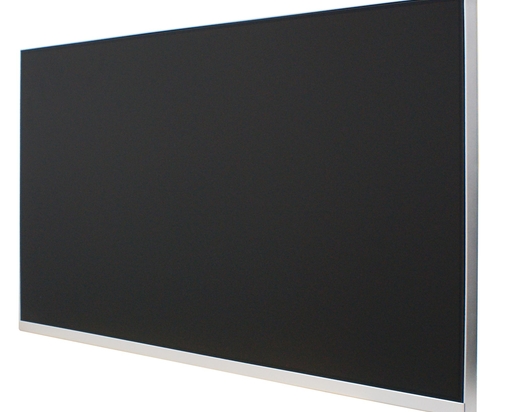

27" TFT FanLess Touch Panel Computer
Intel® Alder Lake-S H610 Chip
Operating temp -10~50°C
Fanless
Manufacturer
Links
Availabillity:
on request
Inquiry
Description
LCD panel:
- 27" with LED backlight, 1920x1080@60Hz, 16:9
- Contrast 1000:1
- View angle 178°/178°
- TOUCH SCREEN - Active range 598x336mm
Processor:
- Intel® Alder Lake-S H610 Chip
- Intel® LGA1700 Socket 12 th /13 th processor (Max 35W)
Memory:
- 2* DDR4 SO-DIMM up to 32GB
Product features:
- 1x 2.5" SATA HDD
- 1x M.2 M key (2242/2280, PCI-Ex4 Gen 3 Interface)
- 1x M.2 E key (2230,CNVi/PCI‐Ex1/USB2.0 interface) for WIFI
- support GLA1700 Processor(Max 35W)
- 4x USB3.2 (Gen. 1), 2x USB2.0
- 2xRS232/422/485, 2x RS232
- 1x HDMI + 1x DP
- 1x Line out + 1x MIC
- 2x RJ45 (2* REALTEK RTL8111H GbE)
- 1x 12~19 V DC Jack
- support Windows 10/11, Linux
- Size: 611.20x359.18x81.0mm
- AC version: 100~240V AC‐DC 120W power adapter or
- DC version: 12VDC with over current protection fuse
Usage:
- Kiosk
- Digital Signage
- Self-service kiosks
Parameters
| Market: | Industrial |
| Power Input: | AC version: 100~240V AC-DC 120W power adapter / DC version: 12 VDC with over current protection fuse |
| Processor: | Intel® Alder Lake‐S H610 chip, Support LGA1700 Processor (Max 35W) |
| PCIe/mPCIe/PCI: | 1x M.2 M key (2242/2280,PCI‐Ex4 Gen.3 Interface), 1x M.2 E key (2230,CNVi/PCI‐Ex1/USB2.0 interface) for WIFI |
| LAN/USB/COM: | 4x USB3.2(Gen.1), �2x USB2.0,� 2x RS232/422/485 + 2xRS232 |
| Size: | 611.20 x 359.18 x 81.0mm |
| Operating temperature: | -10 ~ +50°C |
| Memory type: | DDR4-up to 64GB |
| DDR: | SO-DIMM |
