EMKO EM-RACK-1.5U
cat. num.: EM-RACK-1.5U

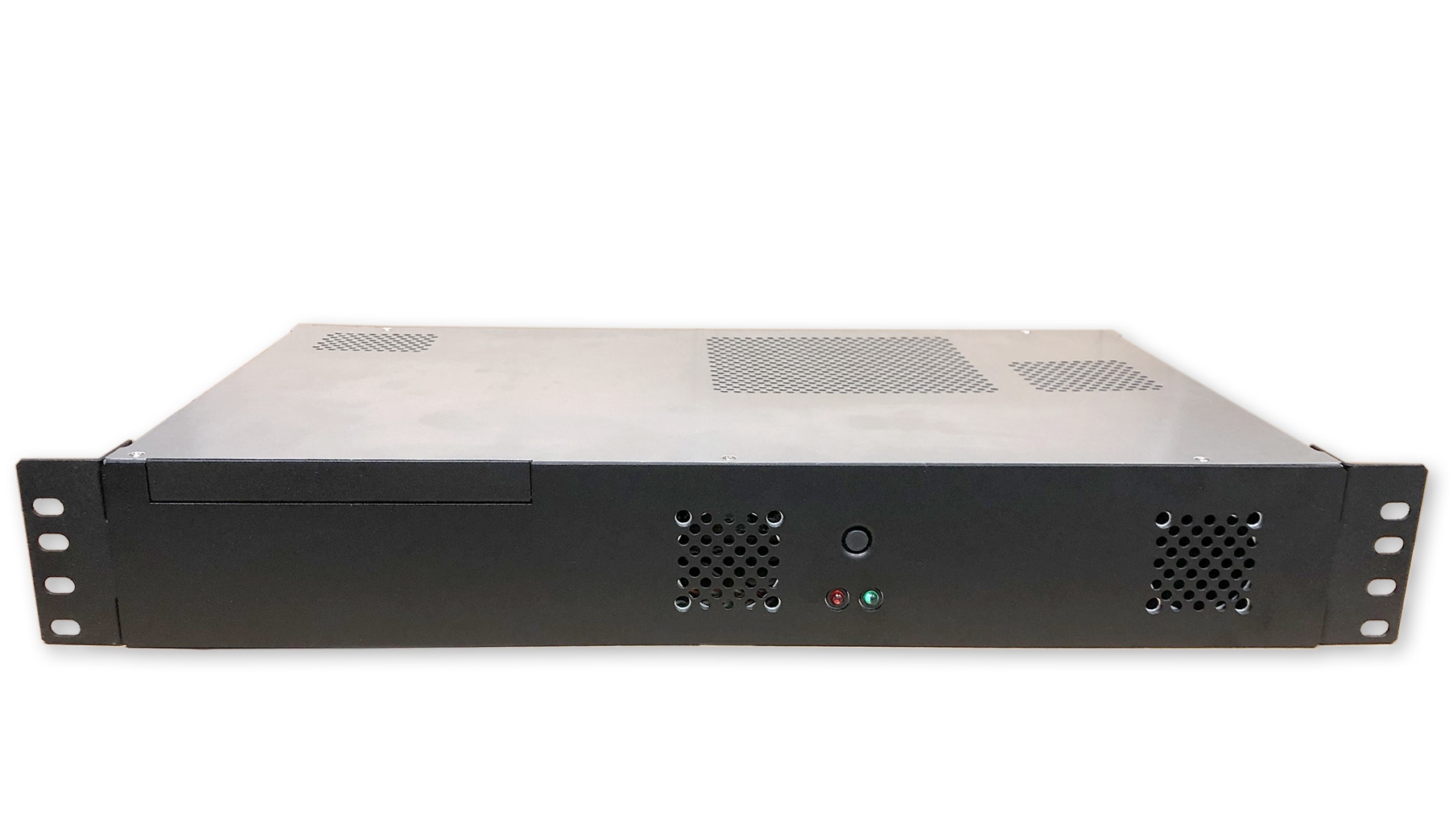

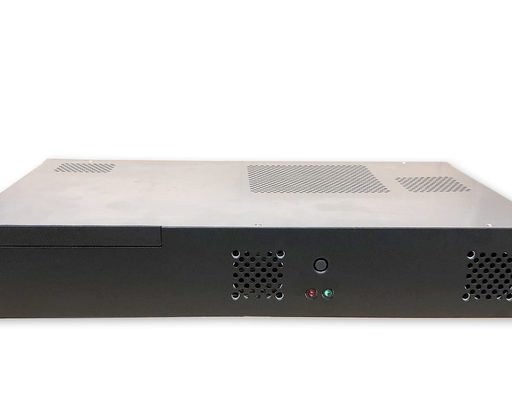

EM-RACK-1.5U is a 19" Industrial RACK PC made in Czech Republic.It is based on Kontron motherboard D3633-S.
Intel Q370, mini-ITX
Intel 8/9th gen. CPU
2xDP,DVI,2xCOM
Active 0~60°C
Manufacturer
Availabillity:
on request
Inquiry
Description
Mainboard:
- Kontron D3633-S, mini-ITX, 24/7 Industrial series (Designed by Fujitsu)
Procesor:
- Intel® 8th & 9th generation Core i3 / i5 / i7 / i9 Processors
- Intel® Pentium® / Intel® Celeron® processor series
- Socket LGA1151
- TDP 80W
Memory:
- DDR4 2666MHz
-
2x SO-DIMM socket, max. 32GB
Product features:
- Supports 3 display configuration by 2x DisplayPort v1.2, 1x DVI-D
- Supporting Intel AMT 12.0 / vPro
- 4x SATA III including RAID 0/1/5/10
- PCIe slot: expansion cards 1x PCIe x16 or 2x PCIe x8
- External drive bay: 1× slim 5.25"
- Internal drive bay: 1× 3.5" + 1x 2.5" or 2× 2.5"
- 19" Galvanized metal sheet chassis 1.5U, black front panel with custom logo (silk print or laser), size 424 × 68 × 270mm
- Operating temperature range endurance: 0~60°C with active fan on CPU
- Extra fan option 2pcs 40×40×10 mm
- External AC Input 110-240V, ATX PSU 180W
Parameters
| Market: | Industrial |
| Form Factor: | Mini-ITX |
| Power Input: | AC 110-240V / ATX |
| Processor: | Intel® Core™ i9 / i7 / i5 / i3 – (8/9th gen.) / Pentium® / Celeron® processor series |
| LAN/USB/COM: | 2x RJ45, 4x USB 3.1 Gen1 (2x optional), 2x USB 3.1 Gen2, 6x USB 2.0 (2x opt.), 2x COM (1x opt.), 2x PS/2 |
| Interface: | 4x SATA III 6Gb/s, 1x M.2 2280/2260/2242 (PCIe NVME) |
| Size: | 424 x 68 x 270mm |
| Operating temperature: | Active 0 ~ 60°C |
| Memory type: | DDR4-2666 |
| DDR: | 2x SO-DIMM |
