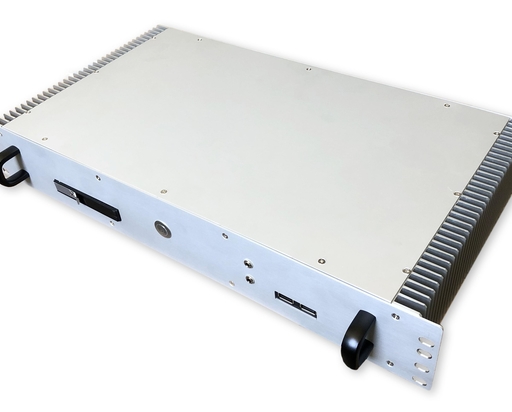

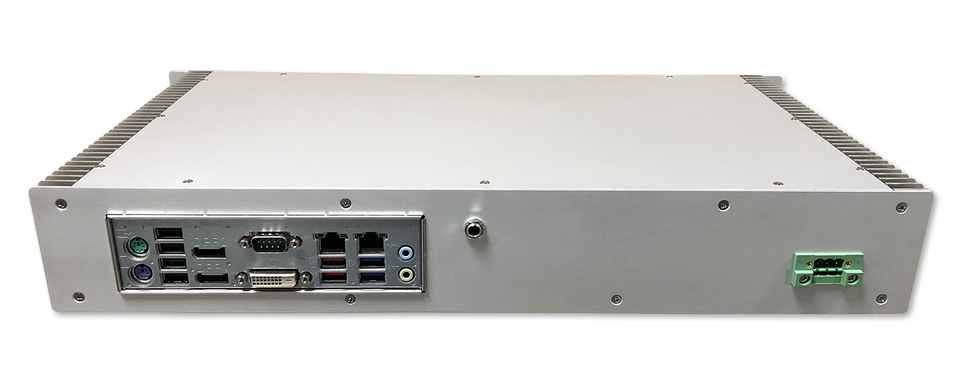

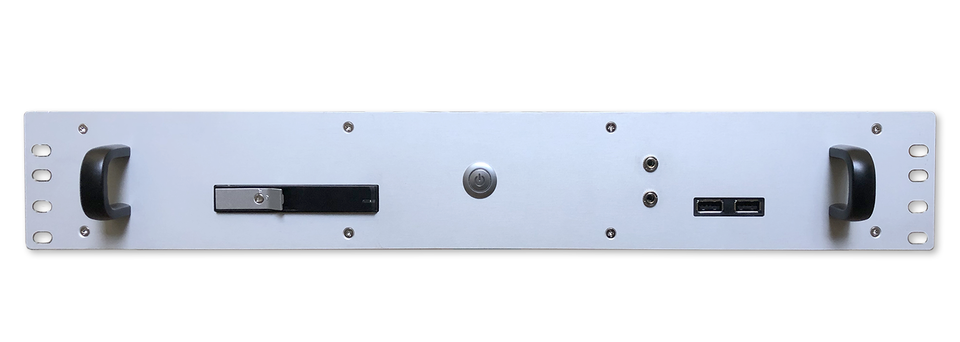

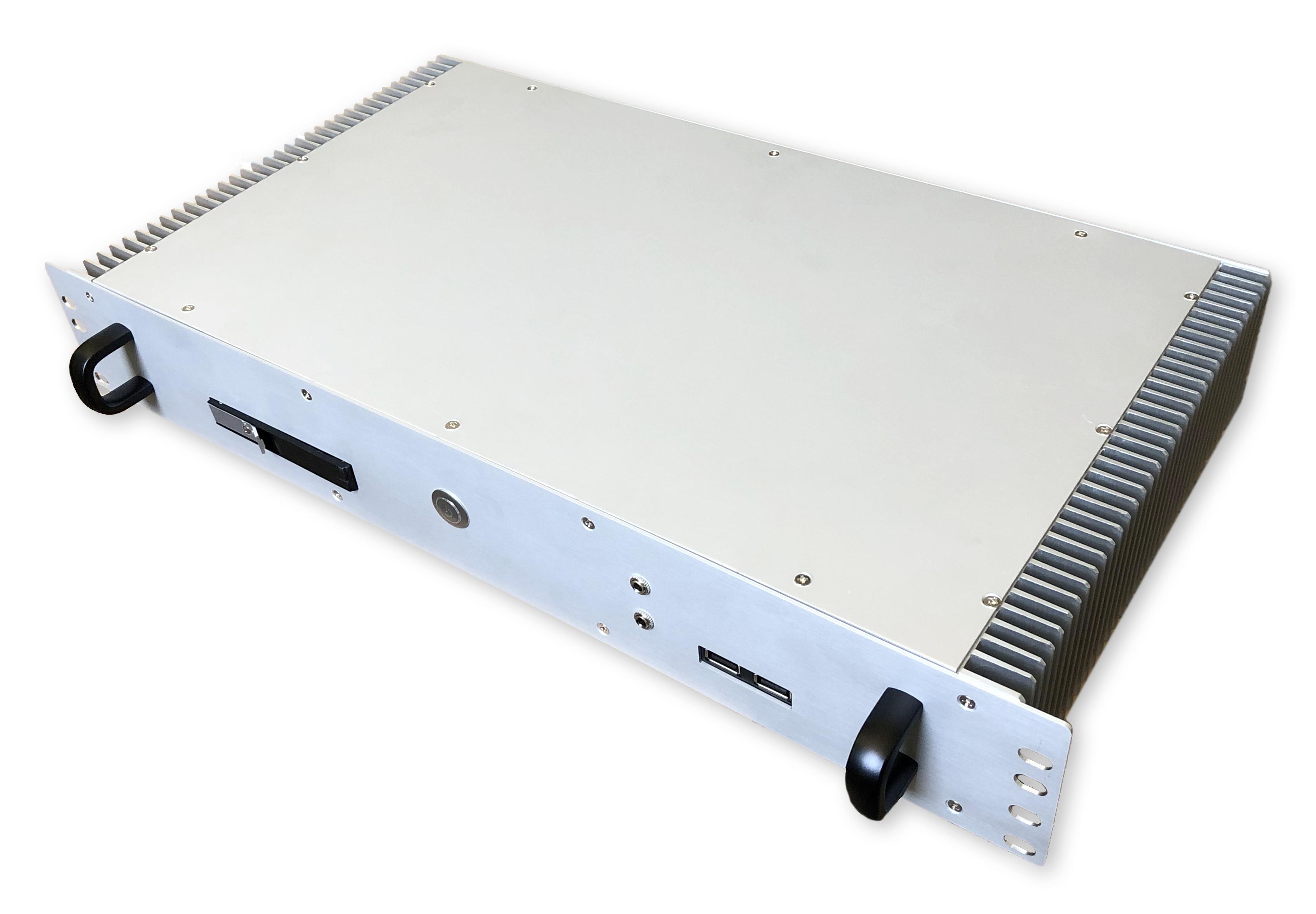

EMKO EM-RACK-1.6U
cat. num.: EM-RACK-1.6U_fanless
EM-RACK-1.6U
Intel Q370, mini-ITX
Intel 8/9th gen. CPU
2xDP,DVI,2xCOM
Fanless 0~50°C
Manufacturer
Availabillity:
on request
Inquiry
Description
Mainboard:
- Kontron D3633-S, mini-ITX, 24/7 Industrial series (Designed by Fujitsu)
Processor:
- Intel® 8th & 9th generation Core i3 / i5 / i7 / i9 Processors
- Intel® Pentium® / Intel® Celeron® processor series
- Socket LGA1151
- TDP 35W
Memory:
- DDR4 2666MHz
-
2x SO-DIMM socket, max. 64GB
Product features:
- Supports 3 display configuration by 2x DisplayPort v1.2, 1x DVI-D
- Supporting Intel AMT 12.0 / vPro
- 4x SATA III including RAID 0/1/5/10
- PCIe slot: expansion cards 1x PCIe x16 or 2x PCIe x8 (optional)
- External drive bay: 1× 2.5" swap bay
- Internal drive bay: 1× 3.5" + 1x 2.5" or 2× 2.5"
- 19" ALU chassis 1.6U with cooling ribbed blocks on sides, custom logo (silk print or laser), size 451 × 71 × 250mm
- Operating temperature range endurance: 0~50°C with passive cooler + 3x heat pipe on CPU
- IP50 protection
- Extra internal fan option 1pc 40×40×10 mm, Phoenix 3pin for optional external FAN
- External DC Input 12V
Parameters
| Market: | Industrial |
| Form Factor: | Mini-ITX |
| Power Input: | DC 12V |
| Processor: | Intel® Core™ i9 / i7 / i5 / i3 (8/9th gen.) / Pentium® / Celeron® processor series |
| LAN/USB/COM: | 2x RJ45, 4x USB 3.1 Gen1 (2x optional), 2x USB 3.1 Gen2, 6x USB 2.0 (2x opt.), 2x COM (1x opt.), 2x PS/2 |
| Interface: | 4x SATA III 6Gb/s, 1x M.2 2280/2260/2242 (PCIe NVME) |
| Size: | 451 x 71 x 250mm |
| Operating temperature: | Fanless 0 ~ 50°C |
| Memory type: | DDR4-2666 |
| DDR: | 2x SO-DIMM |
