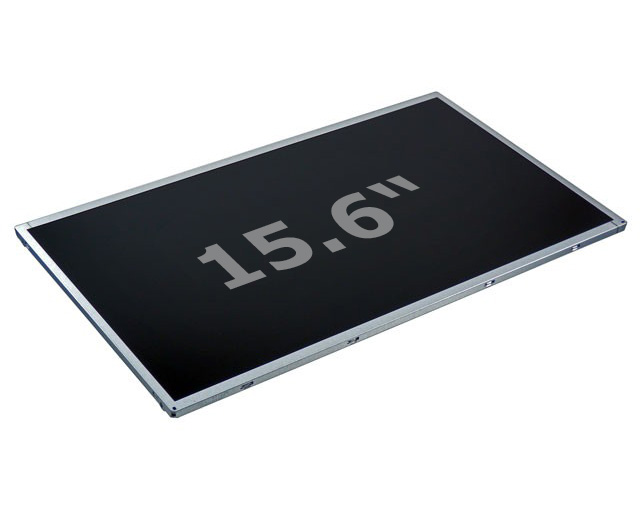

AUO 15.6"
cat. num.: AUO156
15.6" TFT-LCD
Full HD 1920x1080
300 - 500 cd/m2
eDP, -20-60°C
Manufacturer
Availabillity:
on request
Inquiry
Description
| Model | G156HAN03.0 | G156HAN02.0 |
| Screen Diagonal | 15.6" | 15.6” |
| Active Area (mm) | 344.16 x 193.59 | 344.16 x 193.59 |
| Resolution | 1920 x 1080 | 1920 x 1080 |
| White Luminance | 300 cd/m2 | 500 cd/m2 |
| Contrast Ratio | 1000 : 1 | 1000 : 1 |
| Response Time | 25ms | 25ms |
| Power Consumption | 4.8W | 11.4W |
| Support Color | 16.2M | 16.2M colors |
| Surface Treatment | Anti-glare, 3H | Anti-reflection, 2H |
| Viewing Angle | 178° | 178° |
| Interface | 2 Lane eDP 1.2 | 2 Lane eDP 1.2 |
| Outline Dimension (mm) | 350.66 x 216.15 x 3.2 | 363.8 x 215.9 x 8.8 |
| Weight | 370g | 600g |
| Touch | available as option | available as option |
| Operating Temperature | 0°C ~ +50°C | -10°C ~ +60°C |
| Storage Temperature | -20°C ~ +60°C | -20°C ~ +60°C |
| Operation Humidity | 5% ~ 95% RH | 5% ~ 95% RH |
| Storage Humidity | 5% ~ 95% RH | 5% ~ 95% RH |
