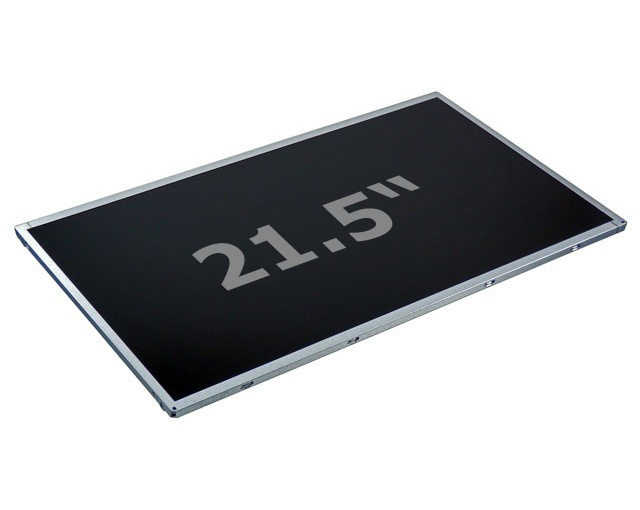

AUO 21.5"
cat. num.: AUO215
21.5" TFT-LCD
Full HD 1920 x 1080
250 - 1500 cd/m2
LVDS, 0-50°C
Manufacturer
Availabillity:
on request
Inquiry
Description
| Model | T215HVN05 | G215HAN01 | P215HAN02 |
| Screen Diagonal (mm) | 546.21 (21.5”) | 546.86 (21.5”) | 546.86 (21.5”) |
| Active Area (mm) | 476.064 (H) x 267.786 (V) | ||
| Resolution | Full HD 1920 x 1080 | ||
| White Luminance | 250 cd/m2 | 400 cd/m2 | 1500 cd/m2 |
| Contrast Ratio | 3000:1 | 1000:1 | 1000:1 |
| Response Time | 18ms (Typ., on/off) | 14ms (Typ., GTG) | 25ms (Typ., G/G) |
| Power Consumption | 12.61W | 17.36W | 38.1W |
| Support Color | 16.7M colors | ||
| Surface Treatment | Anti-Glare, 3H | ||
| Viewing Angle | 178° | ||
| Interface | Dual channel LVDS | ||
| Outline Dimension (mm) | 495.6 × 292.2 × 11.0 | 497.6 x 292.2 x 17.7 | 501.1 × 292.2 ×16.3 |
| Weight | 1700g | 2100g | 2100g |
| Touch | available as option | ||
| Operating Temperature | 0°C ~ +50°C | ||
| Storage Temperature | -20°C ~ +60°C | -20°C ~ +50°C | -20°C ~ +60°C |
| Operation Humidity | 5% ~ 90% RH | 5% ~ 90% RH | 5% ~ 90% RH |
| Storage Humidity | 5% ~ 90% RH | 5% ~ 95% RH | 5% ~ 90% RH |
