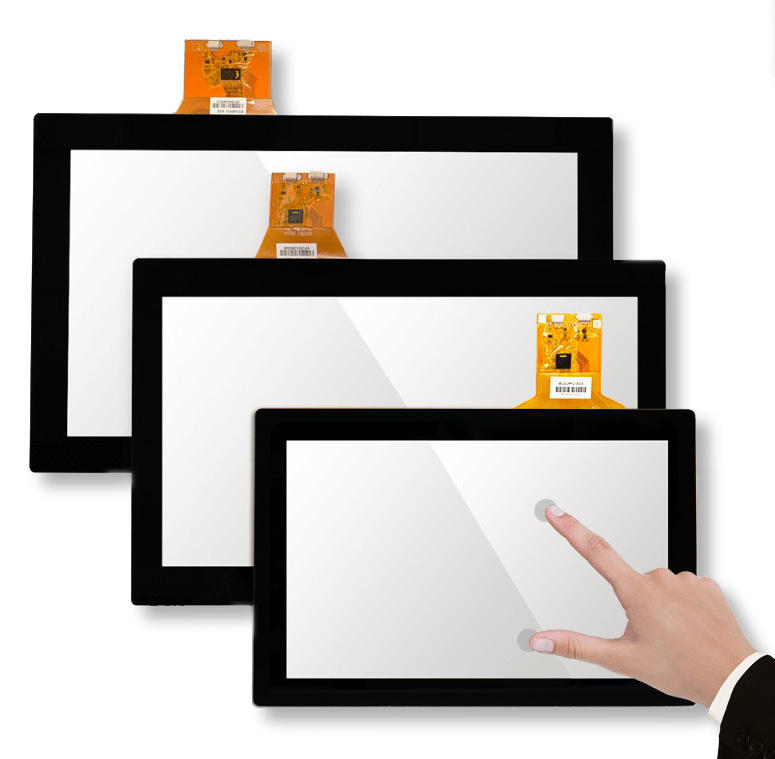

Touch Glass
cat. num.: TOUCH
Sizes 10.1"-110"
Thickness 2-12mm
Irregular shapes
USB, -20-70°C
Manufacturer
Availabillity:
on request
Inquiry
Description
| Type of glass | Basic or Premium (Anti-glare, anti-fingerprint, hydrophobic layer, anti-sparkling) |
| Size | from 10.1" to 110" |
| Thickness of glass | from 2 to 12 mm |
| Adjustments | Regular, irregular shape, holes |
| Detection method | Projected Capacitive Technology |
| Input method | Finger or capacitive pen |
| Touch points | 1, 10 or up to 40 simultaneously |
| Aspect ratio | 4:3, 16:9, 16:10 or customized |
| Interface and power | USB 2.0, 5V, 230mA |
| Multi-touch compatibility | HID - Windows, Linux, Android, Chrome OS, BrightSign, webOS |
| Vandal resistant | up to 10IK |
| Light transmission | 90% |
| Operating temperature | -20°C ~ +70°C |
| Operating humidity | 20% ~ 90% RH |
| Printing options | Digital, ceramic or IR |
