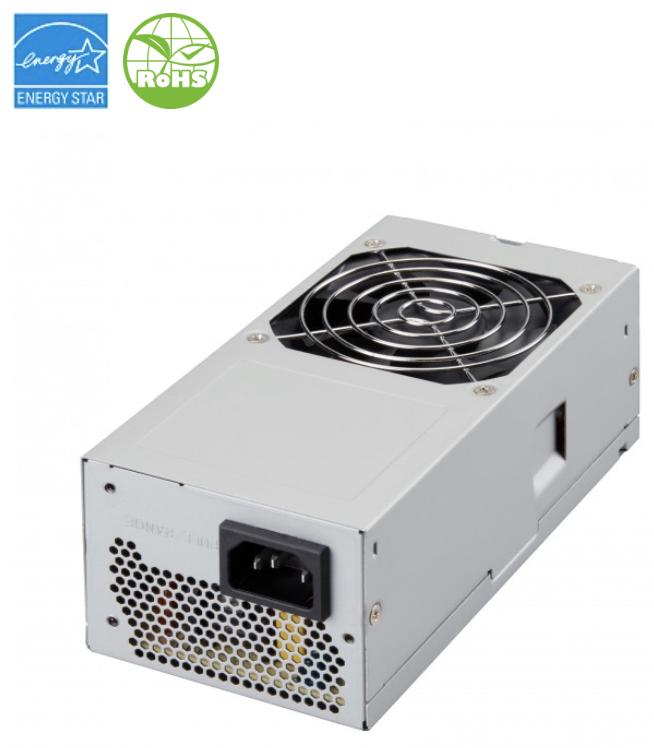

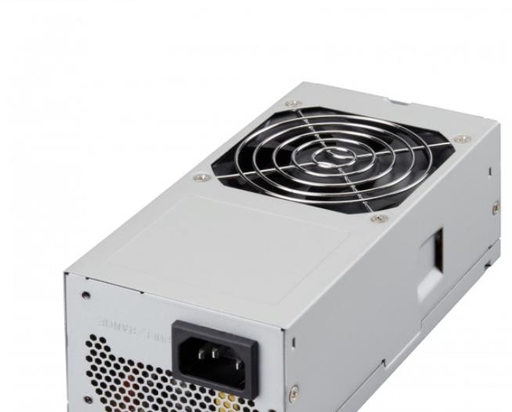

FSP250-50TAC
cat. num.: FSP250-50TAC
- Certified CB 62368-1
- 80 Plus Bronze
Manufacturer
Links
Availabillity:
on request
Inquiry
Description
- Intel Design ATX 12V V1.4
- Low Ripple & Noise
- Over Current Protection
- Over Temperature Protection
- Over Voltage Protection
- Size: 175 x 85 x 65mm
- Operating temperature: 0°C to 50°C
- Input voltage: 90-264Vac
- Hold-up time: 115V / 60Hz: ≥ 16ms at 80% load; 230V / 50Hz: ≥ 16ms at 80% load
Parameters
| Form Factor: | ATX |
| Power Input: | 90-264Vac |
| Size: | 175 x 85 x 65mm |
| Operating temperature: | 0°C to 50°C |
| MTBF: | 100,000 hours of continuous operation at 25°C, Max. output load |
