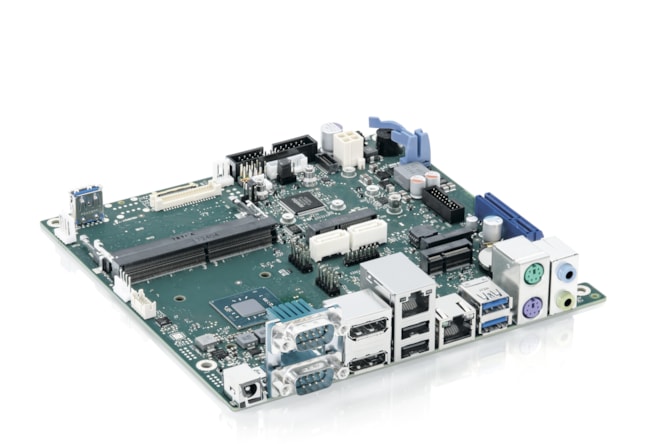

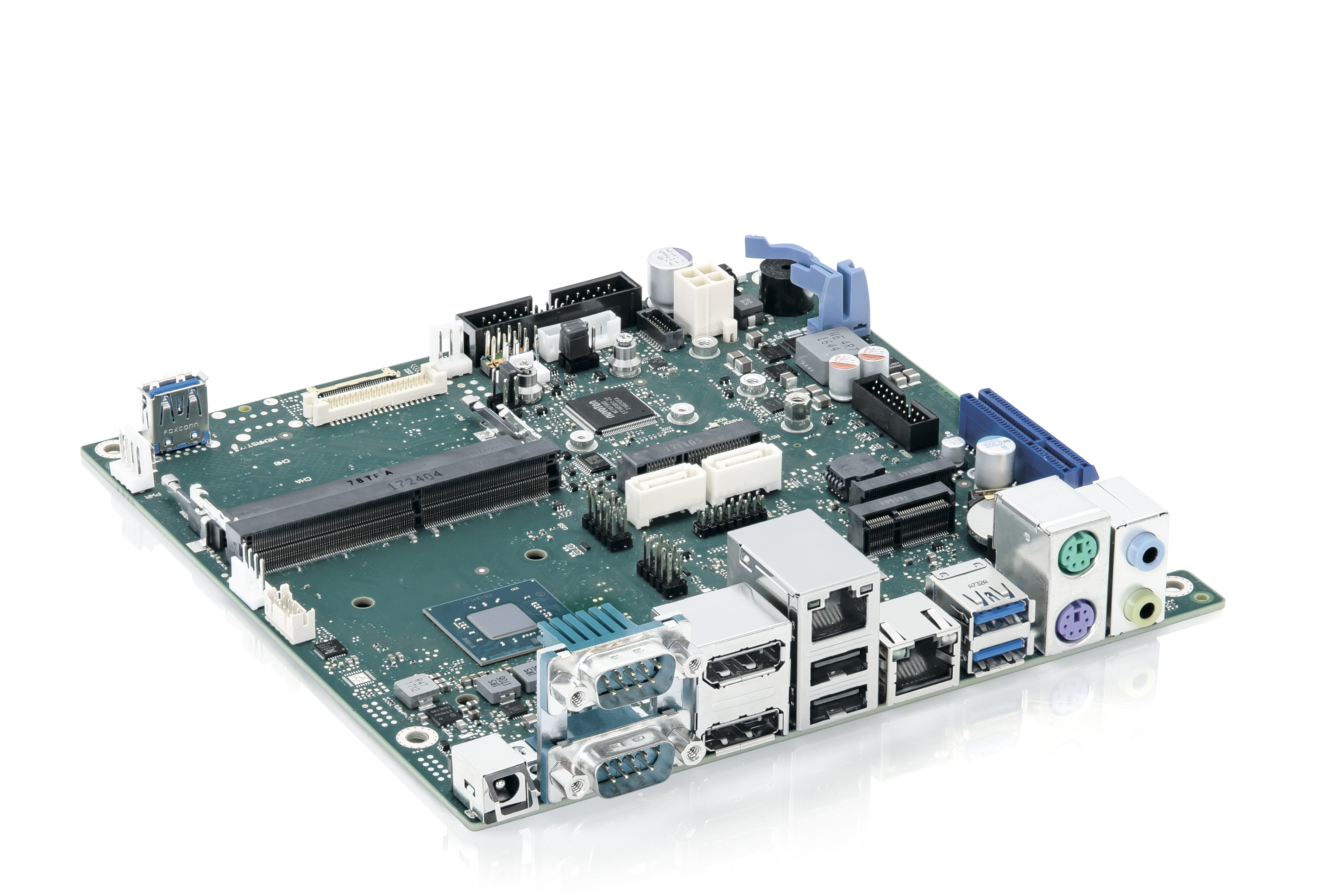

D3543-S3 mITX Kontron

Catalog number: S26361-F5120-V153

D3543-S3

mini-ITX, Gemini Lake
SoC Pentium J5005 QC
DDR4-2400
Industrial Series

Datasheet
on request
Inquiry

Product parameters

Manufacturer KONTRON
Video output DisplayPort, LVDS, eDP
SATA 1x, 2x
Software support Linux, Windows
Audio Audio output
Memory type M.2 PCIe, Key-B, M.2 PCIe, Key-E, Mini PCIe
Power Input DC 8-36V
Operating temperature 0~60°C
Size (L x W x H) 170 x 170mm
Market Industrial mainboard
Form Factor miniITX
Power Input 8-36V
Processor Intel® Pentium® Silver Processor J5005 (Gemini lake)
Size 170x170mm
Operating temperature 0-60 °C
Memory type DDR4
DDR SO-DIMM

Memory:

DDR4 2400 SDRAM (SO-DIMM)

Product Features:

  • Intel® UHD Graphics 605 (within SoC)
  • 2x DisplayPort V1.2a
  • Dual Channel LVDS (24Bit) and eDP V1.4 onboard
  • 8 Bit GPIO & HD Audio onboard
  • USB 2.0 and USB 3.1 (gen1) onboard
  • 2x SATA III
  • Onboard support for M.2 SSD (SATA/PCIe)
  • Onboard support for M.2 WLAN/Bluetooth module
  • Dual GbE LAN onboard
  • Intel® integrated TPM V2.0 onboard
  • WideRange internal/external DC Input (8V - 36V)
  • HW Watchdog onboard
  • RS-232/485/422 support onboard
