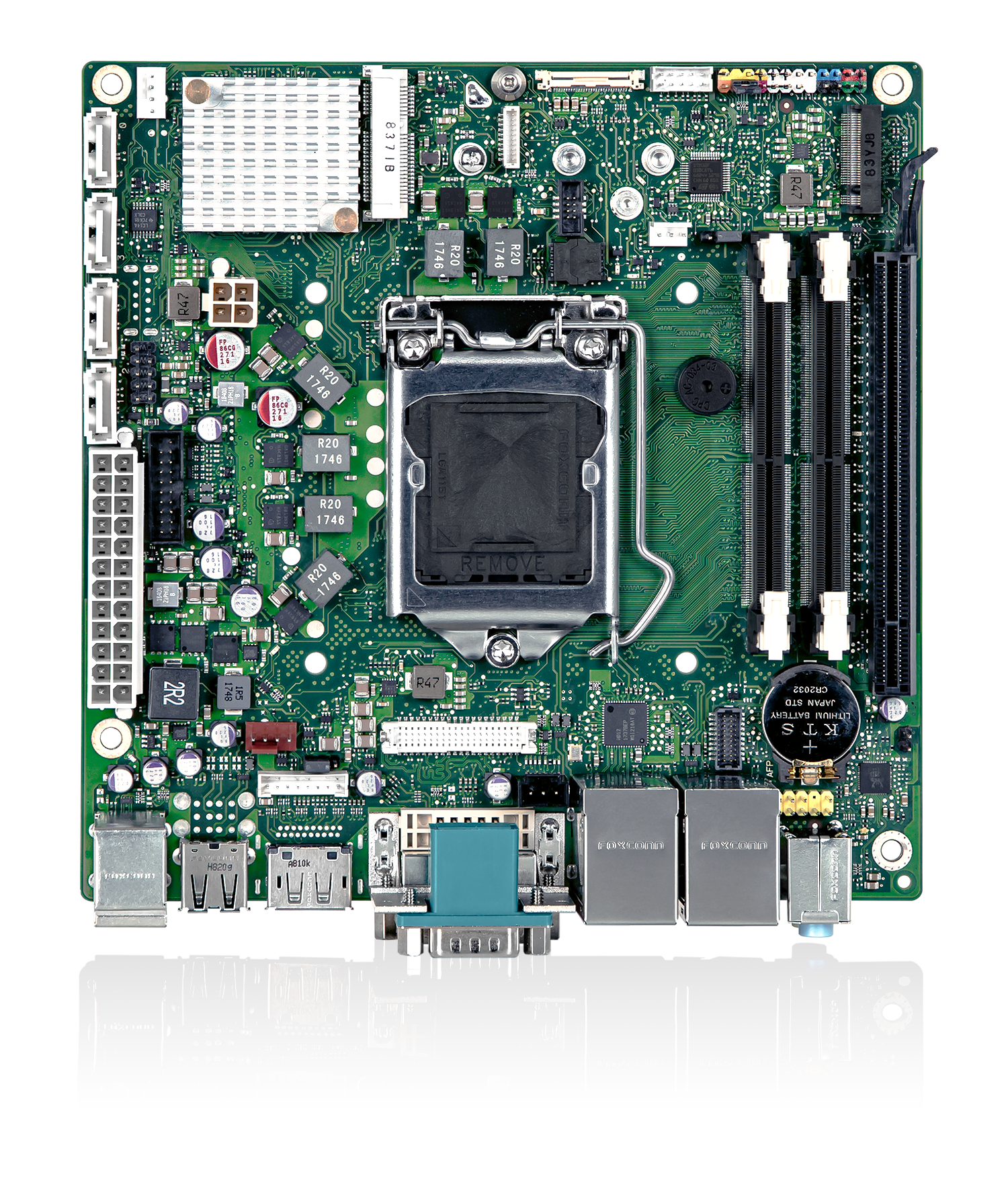

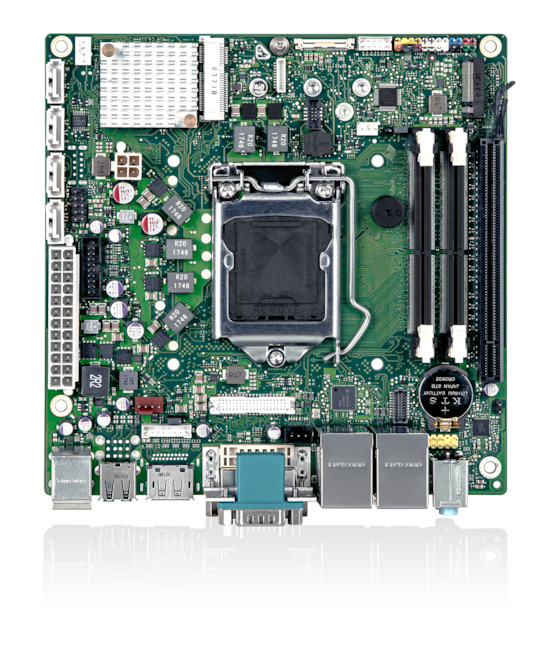

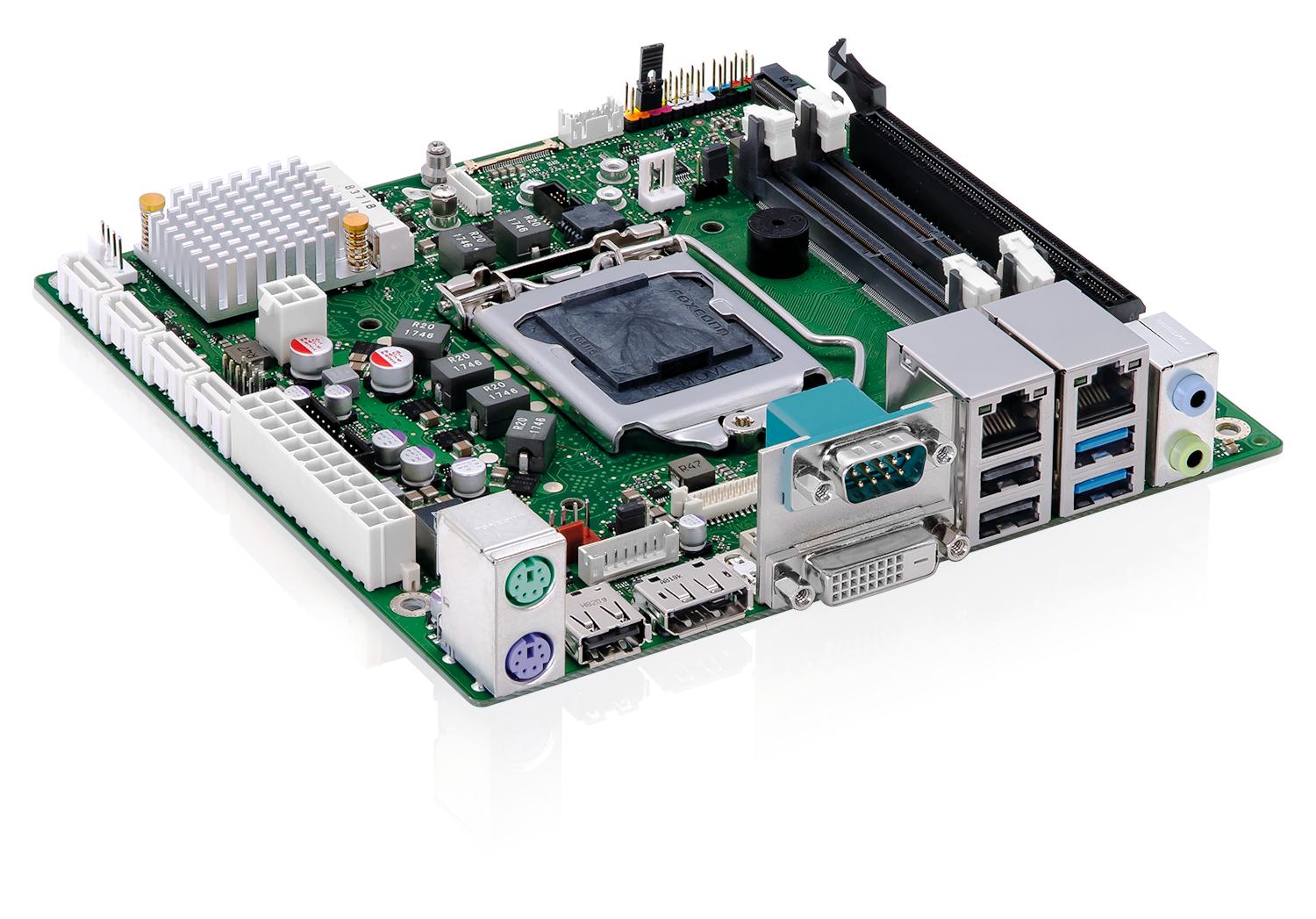

D3634-S mITX Kontron

Catalog number: S26361-F5120-V167

D3634-S

mini-ITX, Intel H310
LGA1151 8/9th gen.
64GB DDR4-2666
Industrial Series

Datasheet
on request
Inquiry

Product parameters

Manufacturer KONTRON
Video output DisplayPort, LVDS, eDP, DVI-D
SATA 1x, 2x, 3x, 4x
Software support Linux, Windows
Audio Audio output
Memory type M.2 SSD PCIe, Key-M, Mini PCIe
Power Input ATX 24pin
Operating temperature 0~60°C
Size (L x W x H) 170 x 170mm
Market Industrial mainboard
Form Factor miniITX
Processor Intel® Core™ i7 / i5 / i3 – (8th gen.) processor series, Intel® Pentium® / Intel® Celeron® processor series, Socket LGA1151 – up to 95W TDP
Operating temperature 0-60 °C
Memory type DDR4
DDR SO-DIMM

Memory:

  • DDR4-2666, Dual Channel
  • 2 SO DIMM sockets, up to 64GB memory

Product Features:

  • PCI Express x16 (Gen.3)
  • 2x Intel® GbE LAN (incl. Teaming)
  • Intel® UHD Graphics (DX12)

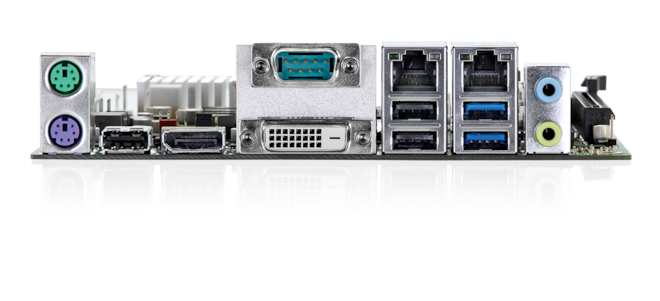

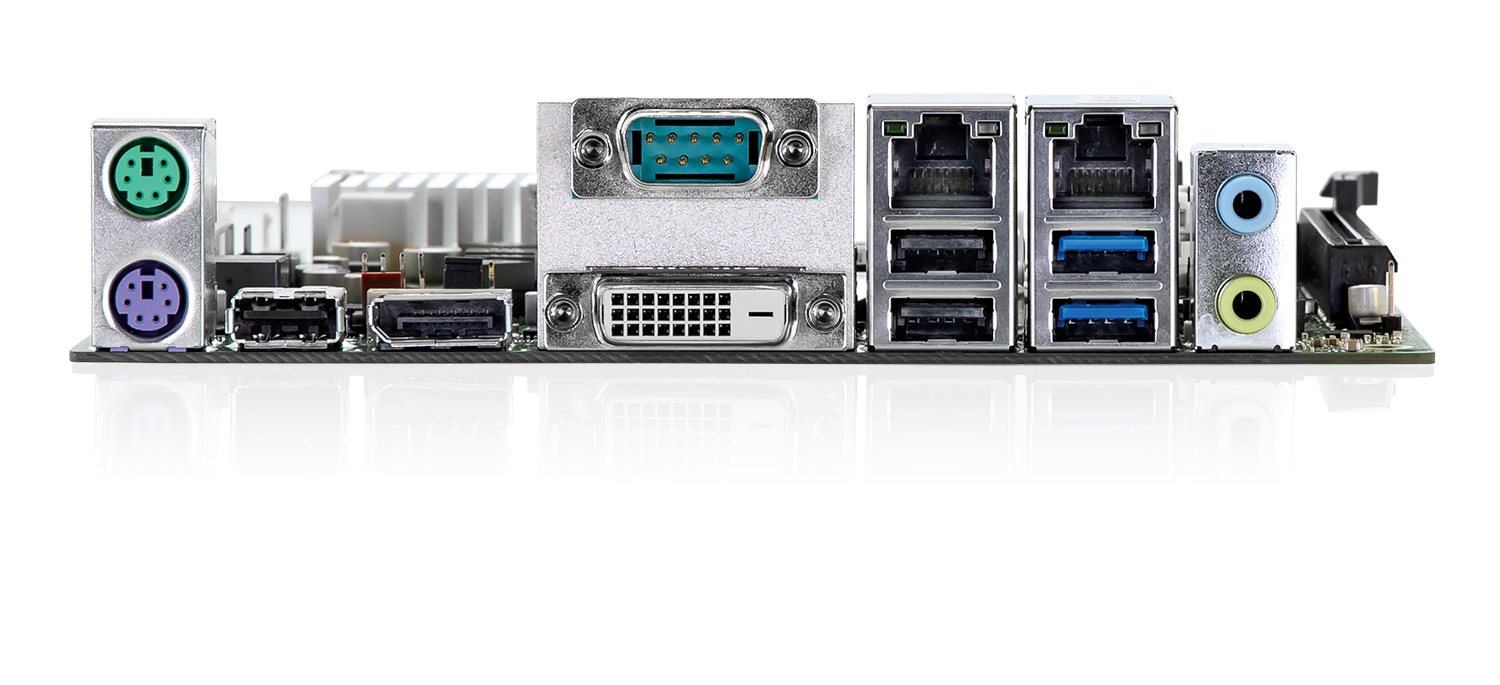

  • 1x DVI-D, 1x DP V1.2, eDP V1.4 and Dual Channel LVDS
  • Intel® High Definition 5.1 Audio; Intel integrated TPM V2.0
  • 8 Bit GPIO; 2 x COM port (incl. RS-422/RS-485 support)
  • 5x USB 2.0, 4x USB 3.1 Gen1
  • 4x SATA 6G/s & M.2 (PCIe-based SSD modules 2242, 2260, or 2280)
  • Mini-PCIe socket (halfsize/fullsize support)
  • Dual Power Supply (ATX compliant or single 12V DC)
  • BIOS-POST/-Boot & OS – HW Watchdog onboard
