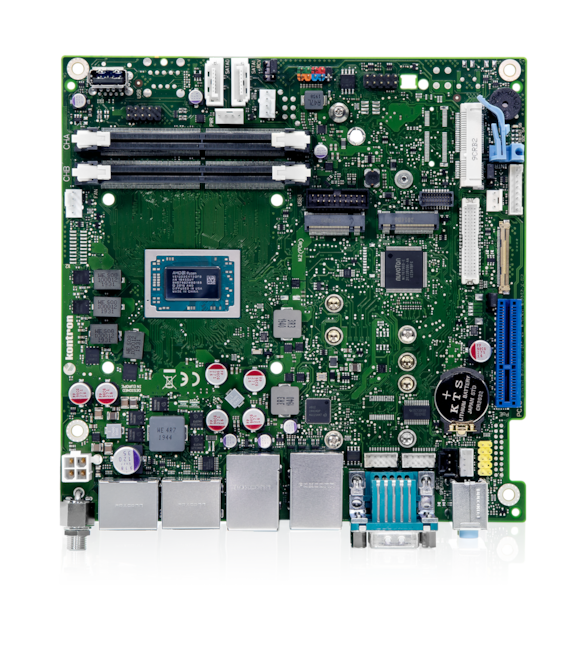

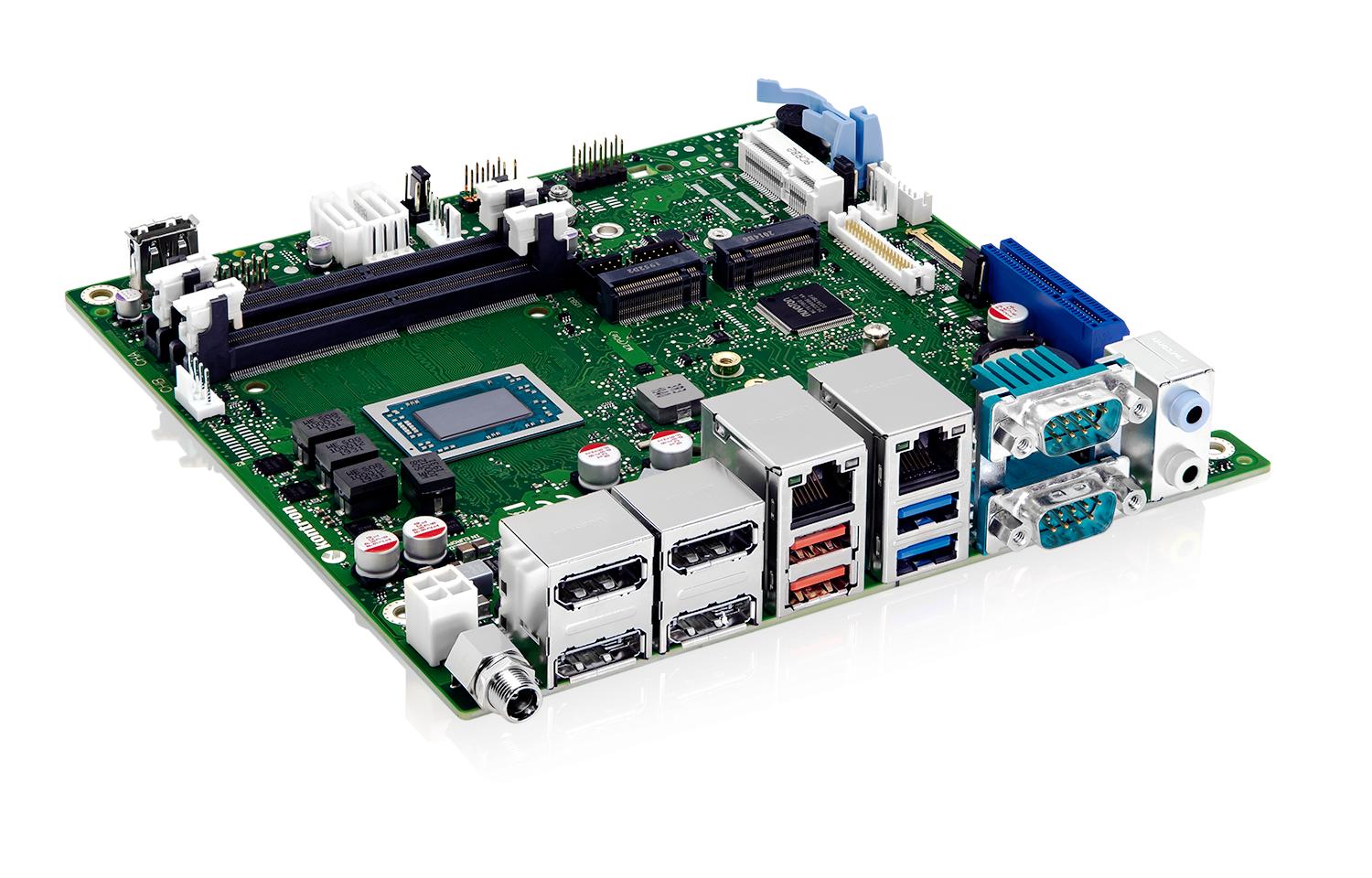

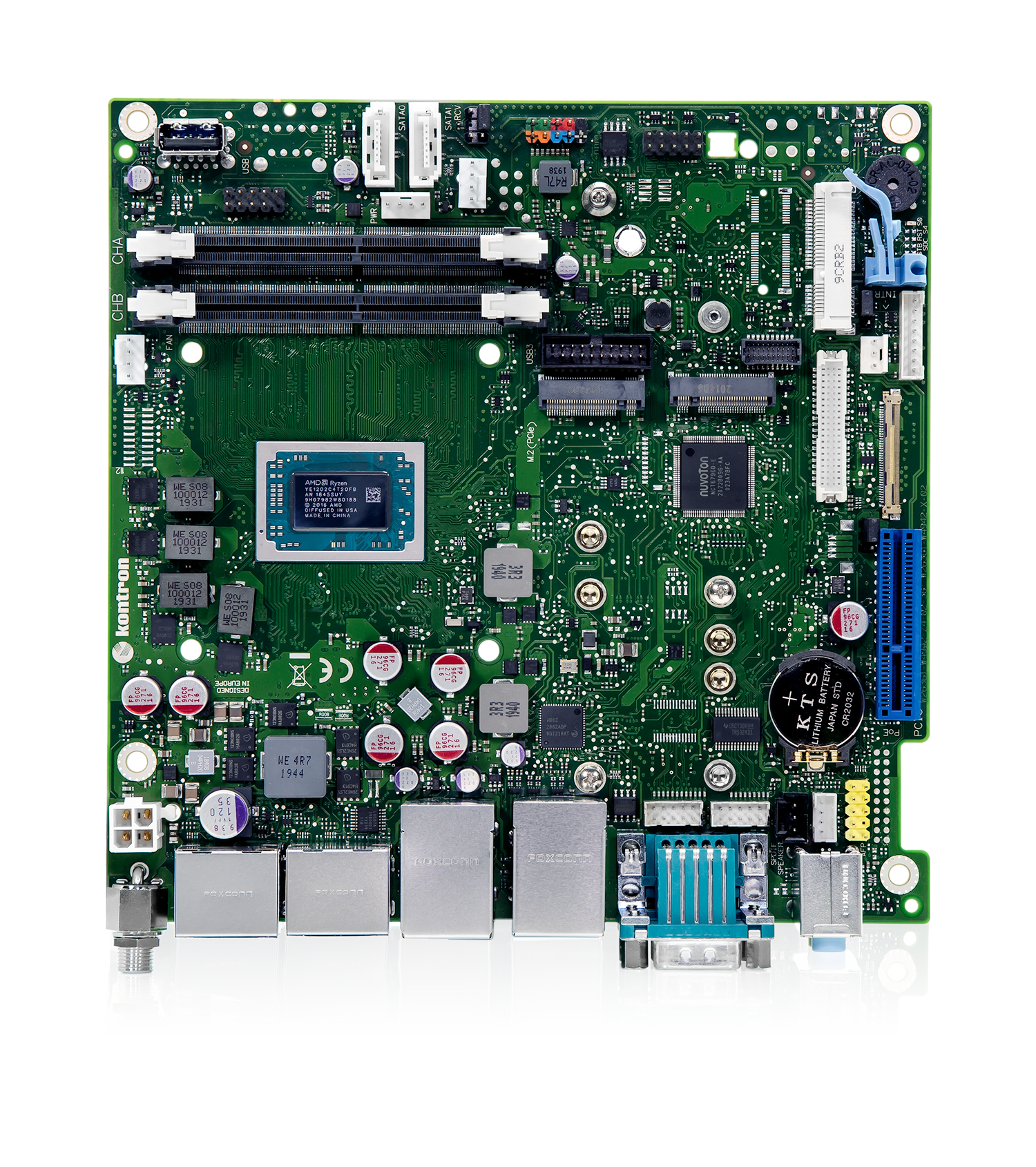

D3713-R1 mITX Kontron

Catalog number: S26361-F5120-V170

D3713-R1

mini-ITX, Ryzen R1102G
DDR4 2400,RadeonVega
2xDP, 4xCOM
WideTemp -10-60C

Datasheet
on request
Inquiry

Product parameters

Manufacturer KONTRON
Video output DisplayPort, LVDS, eDP
SATA 1x, 2x
Software support Linux, Windows
Audio Audio output
Memory type M.2 SSD PCIe, Key-M, M.2 PCIe, Key-B, Mini PCIe
Power Input DC 8-34V
Operating temperature -10~60°C
Size (L x W x H) 170 x 170mm
Market Industrial mainboard
Form Factor Mini ITX
Power Input DC Power Supply 8-34V
Processor AMD R1102G Dual-Core 1.2/2.6 GHz (6W TDP)
PCIe/mPCIe/PCI 1x Mini-PCIe (halfsize/fullsize), 1x PCIe x4 Gen3

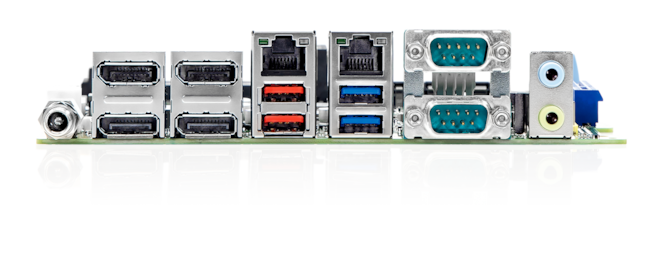

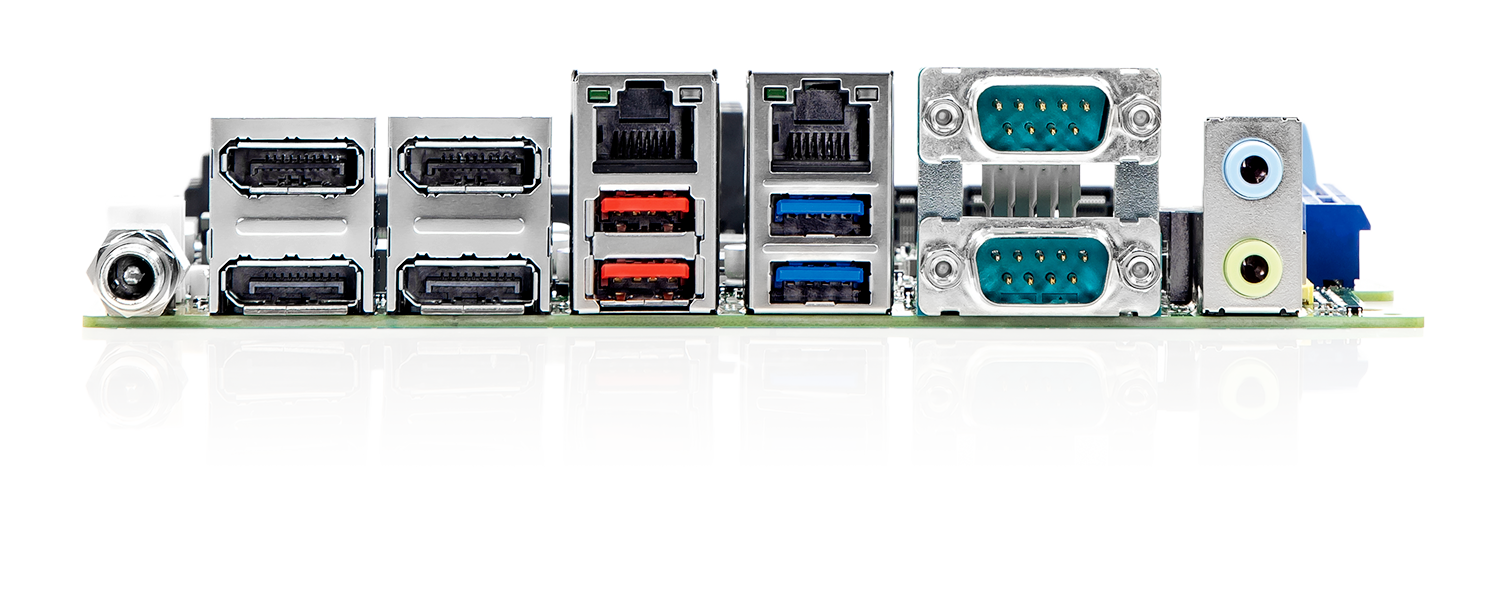

LAN/USB/COM 2x RJ45, 4x USB 3.1 Gen1 (2x optional), 2x USB 3.1 Gen2, 2x USB 2.0 (opt.), 4x COM (2x opt.)
Interface 2x SATA III 6Gb/s, 1x M.2 SSD Key-M (2280/2242/2230), 1x M.2 Key-B (2280/2260/2252/2242)
Size 170 x 170mm
Operating temperature -10-60 °C
Memory type DDR4-2400
DDR SO-DIMM

Processor:

  • AMD Ryzen™ Embedded R1102G Dual-Core 1.2GHz (base) / 2.6GHz (boost), 6W TDP

Graphics:

  • AMD Radeon™ Vega Graphics @1.0GHz, 3x Compute units
  • up to 2 displays
  • 2x DP V.1.4
  • 1x embedded DP (eDP V1.4; supporting 4K resolutions)
  • 1x Dual-Channel 24bit LVDS

Memory:

  • DDR4 2400 SDRAM
  • 2x SO-DIMM socket, max 2x 16GB

Product Features:

  • Following max. display combinations are supported: 1x LVDS + 1x eDP // 1x DPP + 1x LVDS or eDP // 2x DPP
  • HD Audio onboard (Realtek ALC256)
  • Dual GbE LAN onboard
  • 1x RS232/422/485; 3x RS232 (2x by header)
  • GPIO (by header)
  • AMD integrated TPM V2.0 onboard & socket for optional TPM Module
  • Designed for fanless operation
  • HW Watchdog onboard
  • WideRange internal/external DC Input (8 V - 34 V)

Usage:

  •  Casino Gaming, Medical Displays, Thin clients, Industrial PCs
