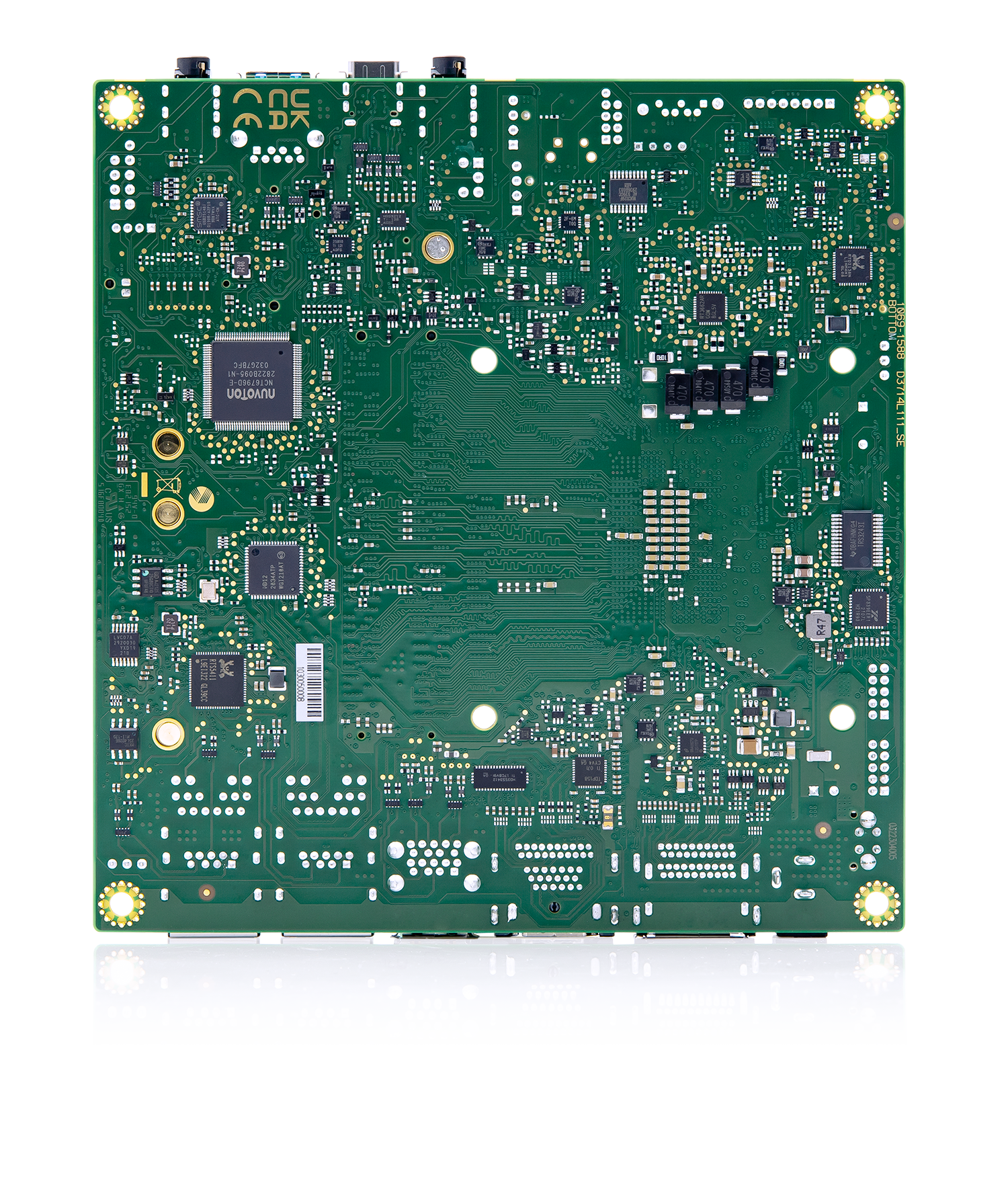

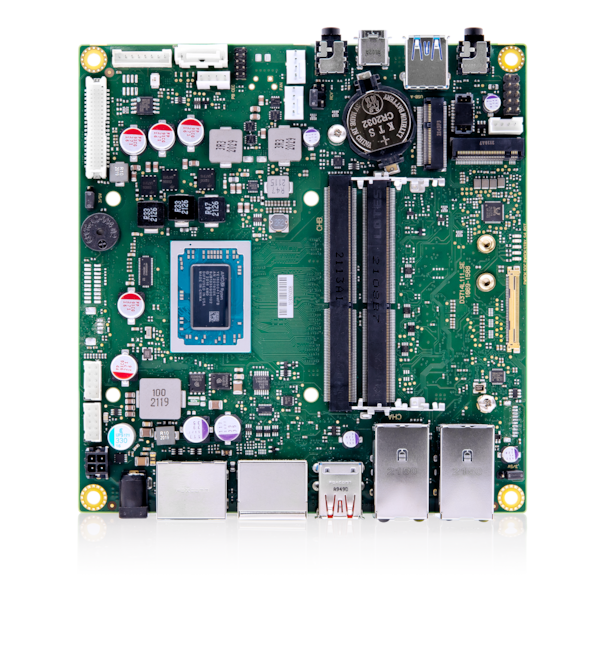

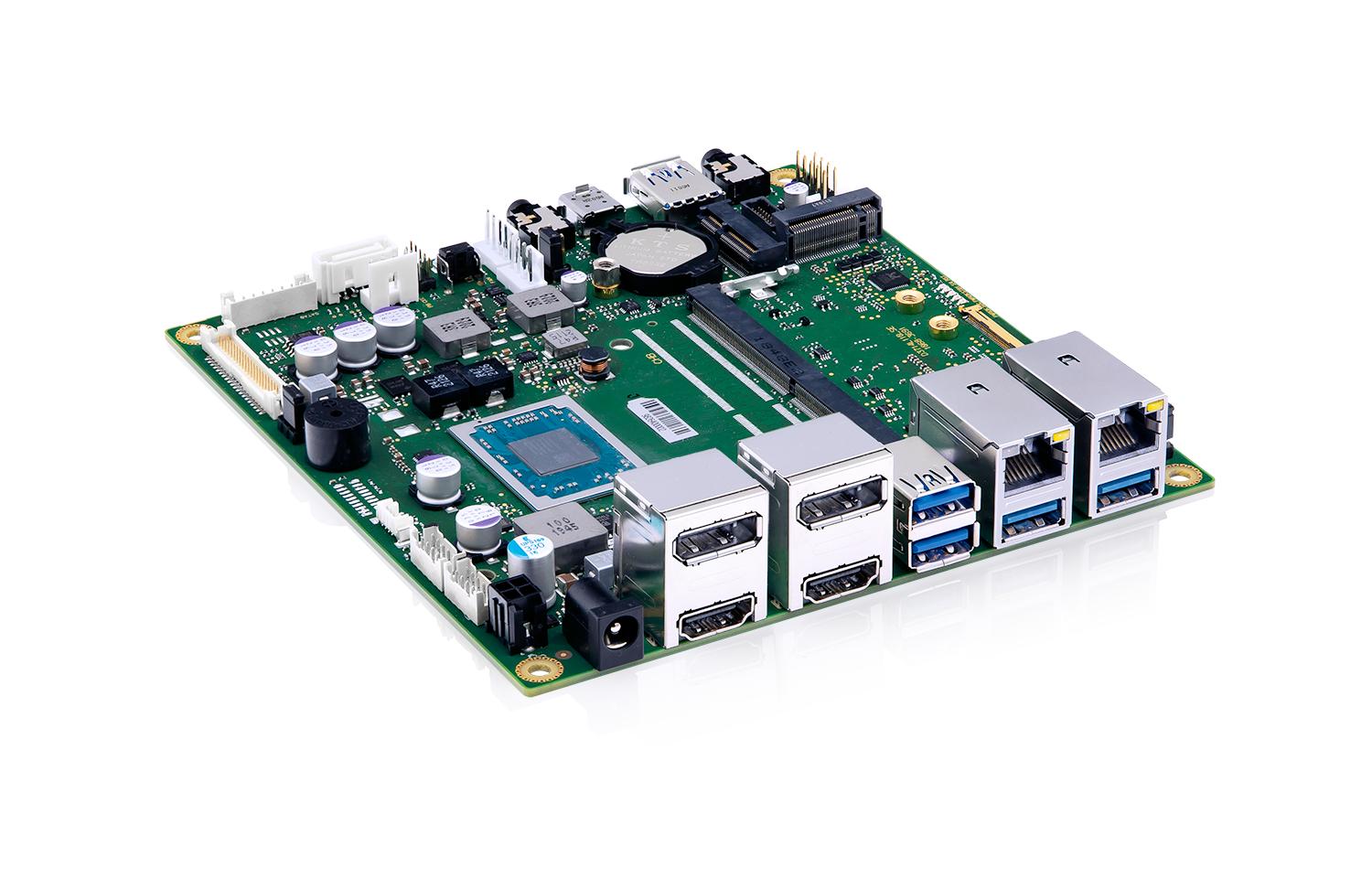

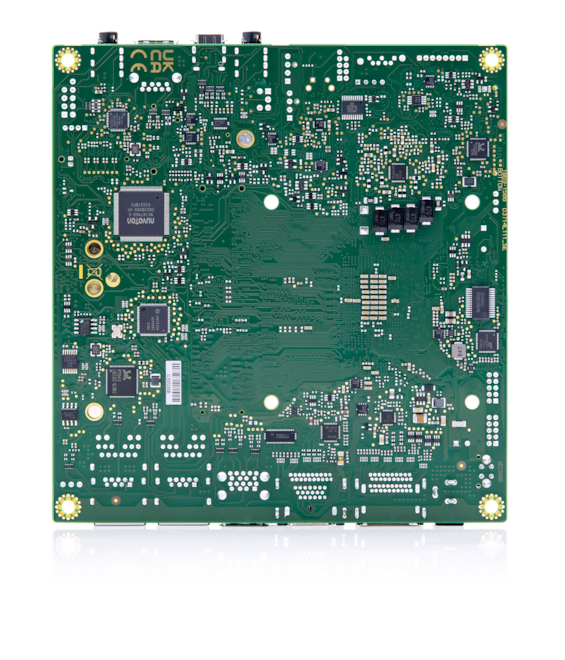

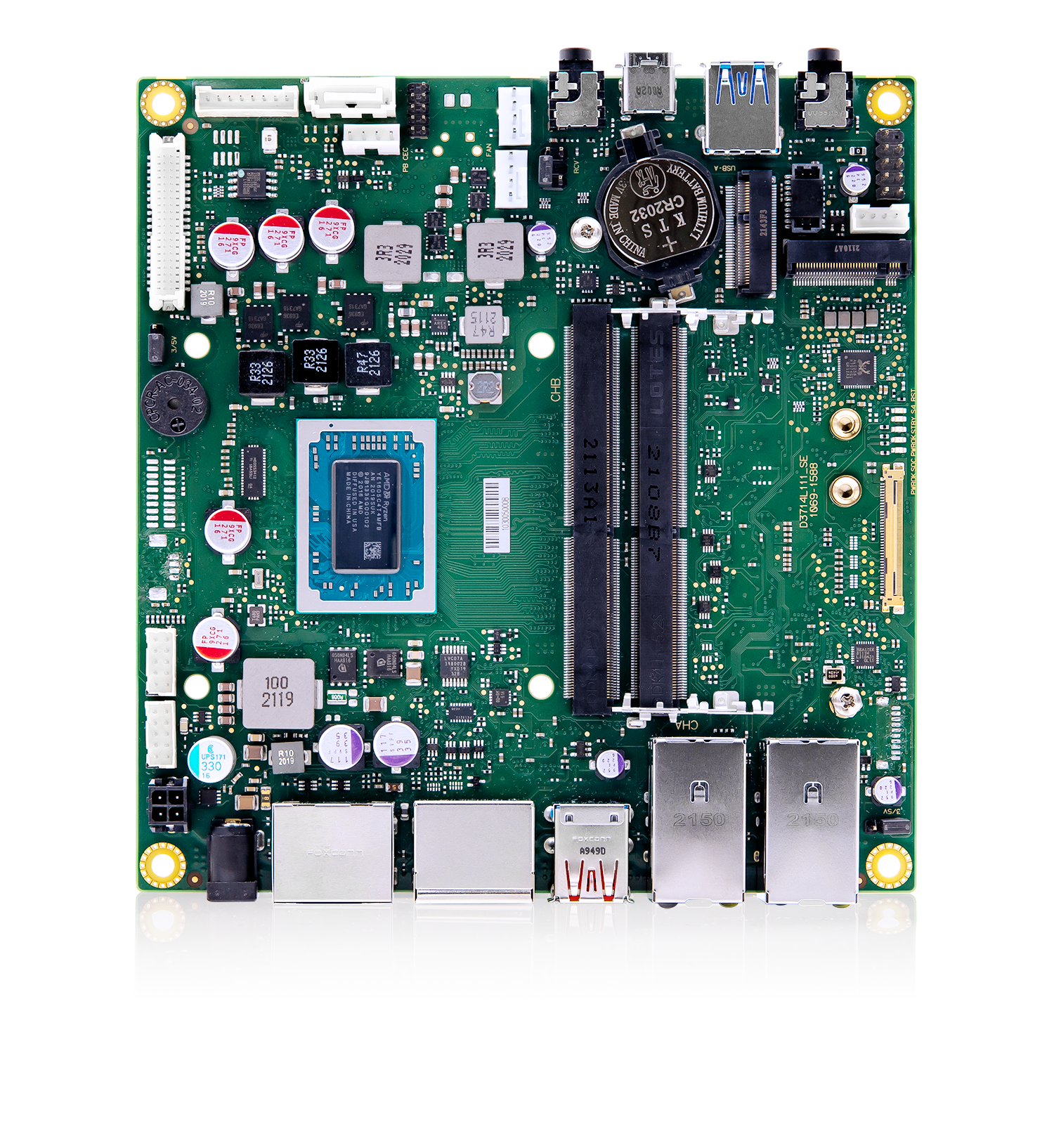

D3724-R3 mSTX Kontron

Catalog number: F5120-V205

D3724-R3 is industrial motherboard produced in Germany from Kontron. This mSTX motherboard with AMD R2514 CPU is used in casino gaming, medical displays.

mini-STX, Ryzen R2514
DDR4 2400/2666, ECC option
AMD Radeon Vega Graphics (within SoC)

Datasheet
on request
Inquiry

Product parameters

Manufacturer KONTRON

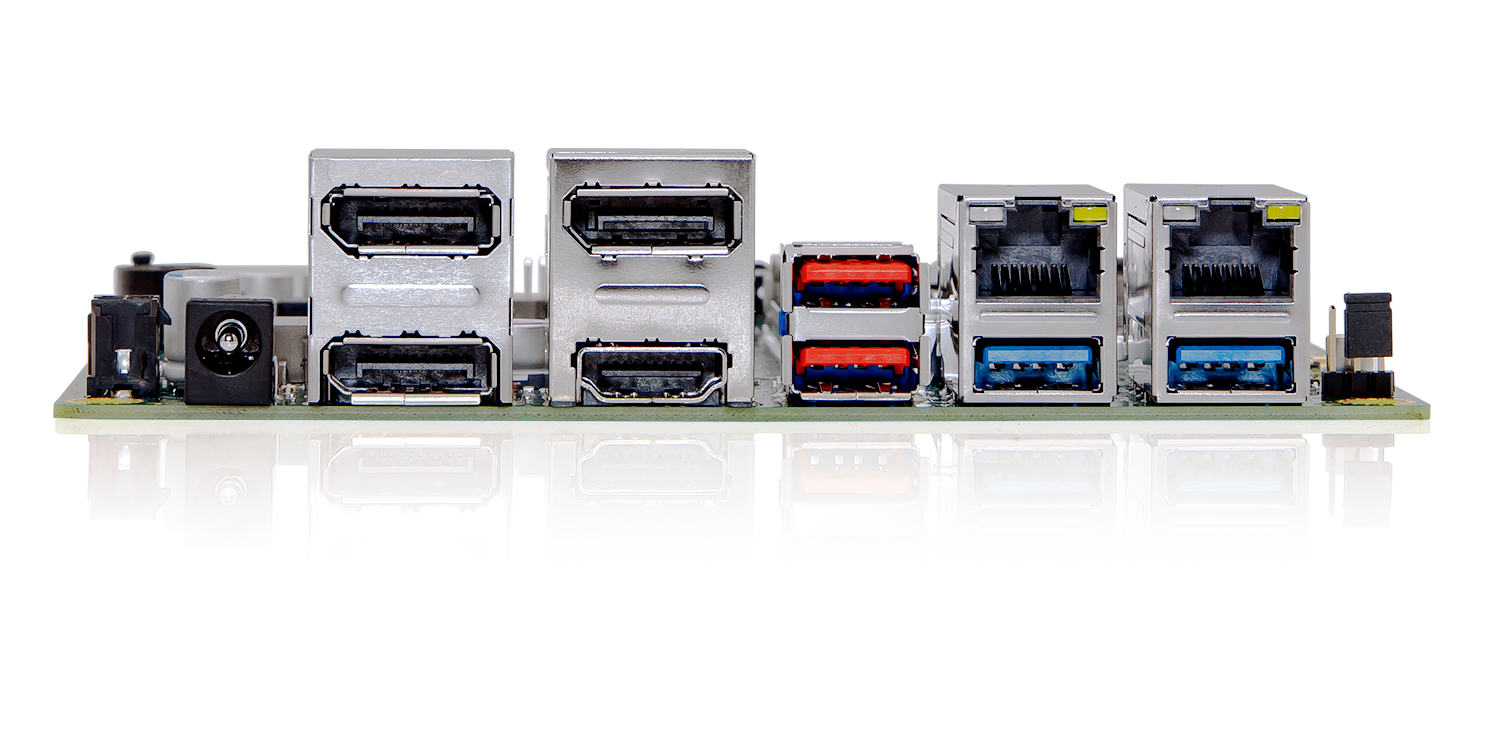

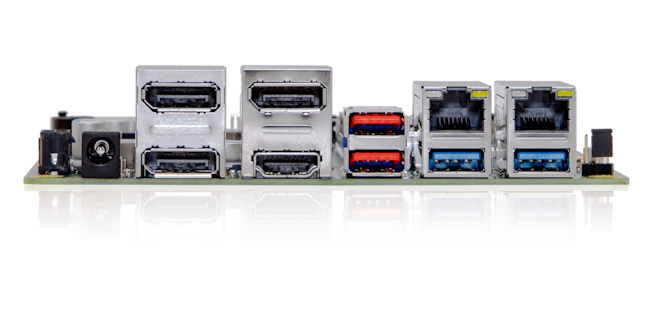

Video output HDMI, DisplayPort, LVDS, eDP
SATA 1x
Software support Windows
Audio Microfone input, Audio output
Memory type M.2 SSD PCIe, Key-M, M.2 PCIe, Key-E
Power Input DC 8-32V
Operating temperature -10~60°C
Size (L x W x H) 140 x 148mm
Market Industrial mainboard
Form Factor Mini STX
Power Input Auto dual range internal/external DC input (12V or 19-28V)
Processor R3: R2514 Quad-Core 2.1/3.7GHz (max TDP: 12W / 15W / 25W / 35W)
PCIe/mPCIe/PCI 1x M.2 SSD (Key-M: 2230/2242/2280), 1x M.2 WLAN/Bluetooth (Key-E: 2230)
LAN/USB/COM 8Bit GPIO and HD Audio onboard, USB2.0 and USB 3.2 (Gen1/Gen2) onboard
Interface 1x SATA III onboard
Size 140 x 148mm
Operating temperature -10-60 °C
Memory type 2x DDR4-2400/2666, up to 32GB
DDR SO-DIMM

Processor:

  • R3: R2514 Quad-Core 2.1/3.7GHz (max TDP: 12W / 15W / 25W / 35W)
  • CPU TDP Limited option is possible

Graphics:

  • AMD Radeon™ Vega Graphics (within SoC)
  • Up to 3x DP V1.4 / HDMI V2.0b / 1x eDP V1.4 / 1x LVDS

Memory:

  • 2x DDR4 2400/2666, with ECC option
  • Max capacity: 32GB

Product Features:

  • Dual Channel LVDS (24Bit) and eDP V1.3 (4k)
  • 8Bit GPIO and HD Audio onboard
  • USB2.0 and USB 3.2 (Gen1/Gen2) onboard
  • 1x SATA III onboard
  • 1x M.2 SSD (Key-M: 2230/2242/2280)
  • 1x M.2 WLAN/Bluetooth (Key-E: 2230)
  • Dual GbE LAN onboard incl. Teaming Support
  • AMD integrated TPM V2.0 onboard
  • Auto Dual Range internal/external DC input (12 V or 19-28 V)
  • HW Watchdog onboard
  • RS-232/485/422 support

Usage:

  • Casino Gaming, Small Industrial pc, Medical Displays

Recommended accessories:

• Active cooler

• Passive cooler

• Low profile active cooler
