EM-160-LPFL_K3921

Catalog number: EM-160-LPFL_K3921

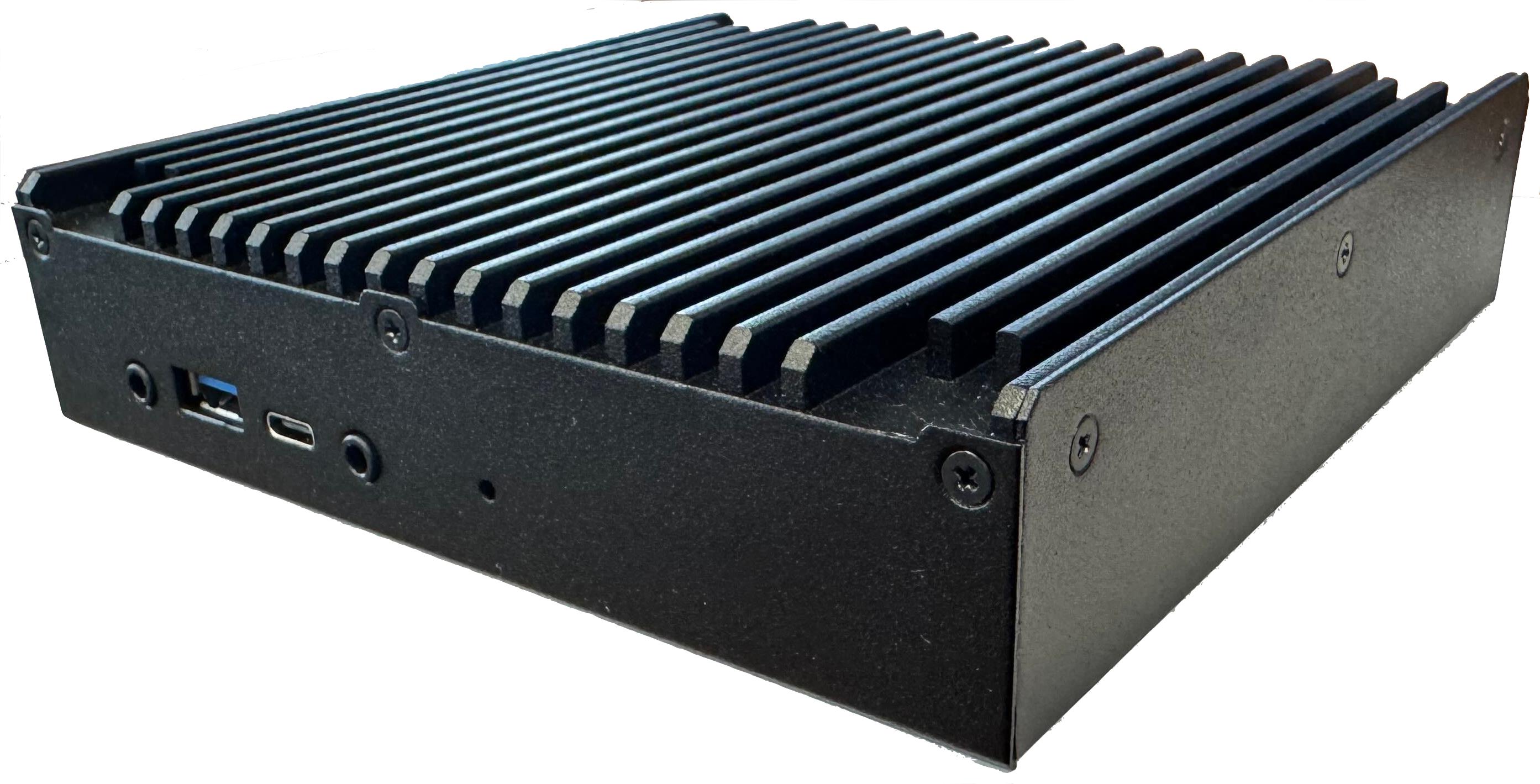

EM-160-LPFL_K3921 is a small fanless PC manufactured in Czechia. This small PC is based on Kontron K3921-Nx with SoC CPUs from N50 to i3-N355.

mini-STX, Alder Lake-N / Twin Lake
2x DP + 1 přes USB Type-C, 2x LAN
Fanless

Datasheet Datasheet
on request
Inquiry

Product parameters

Manufacturer EMKO
Video output DisplayPort
Software support Linux, Windows
Memory type M.2 SSD PCIe, Key-M, M.2 PCIe, Key-E
Power Input DC 12V, DC 19-28V, DC-in via USB-C 20V
Size (L x W x H) 154 x 151,9 x 36mm
Market Industrial
Form Factor Mini-STX
Power Input DC-in 12V / 19-28V or USB-C 20V PD sink
Processor N50 / N97 / N100 / N150 / N200 / i3-N305 / i3-N355
LAN/USB/COM 1x GbE + 1x 2,5 GbE LAN, 3x USB 3.2 Gen1, 2x USB 3.2 Gen2, 1x USB 3.2 Gen1 Type-C
Interface 1x M.2 PCIe Key-M NVMe SSD, 1x M.2 PCIe Key-E WLAN
Size 154 × 151,9 × 36mm
Memory type DDR5 4800, non-ECC
DDR SO-DIMM

Mainboard:

  • Kontron K3921-Nx, mini-STX, 24/7 industrial series (Designed by Kontron)

Processor:

  • N1: Intel® Processor N50 (2C/6W) SoC
  • N2: Intel® Processor N97 (4C/12W) SoC
  • H1: Intel® Processor N100 (4C/6W) SoC
  • N3: Intel® Processor N150 (4C/6W) SoC
  • N4: Intel® Processor N200 (4C/6W) SoC
  • N6: Intel® Core™ i3 N305 (8C/15W) SoC
  • N7: Intel® Core™ i3 N355 (8C/15W) SoC

Memory:

  • DDR5 4800MHz

  • 1x SO-DIMM socket, max. 32GB, non-ECC

Product features:

  • 2 to 3 DisplayPorts V1.4a (1x přes USB Type-C alt mode DPoC) - Combinations: 2x DPP + 1x DPoC / 2x DPP + LVDS or eDP / 1x DPP + 1x DPoC + eDP or LVDS
  • 1x GbE + 1x 2,5GbE LAN
  • 1x M.2 PCIe Key-M NVMe SSD, 1x M.2 PCIe Key-E WLAN
  • Zinc steel / aluminium chassis with custom logo option (laser), color black (MOQ 20pcs for optional colour) size 154 × 151,9 × 36mm
  • Approved for 24/7 usage
  • Wall mount / DIN mounting options
