EM-IND-I13V

Catalog number: EM-IND-I13V

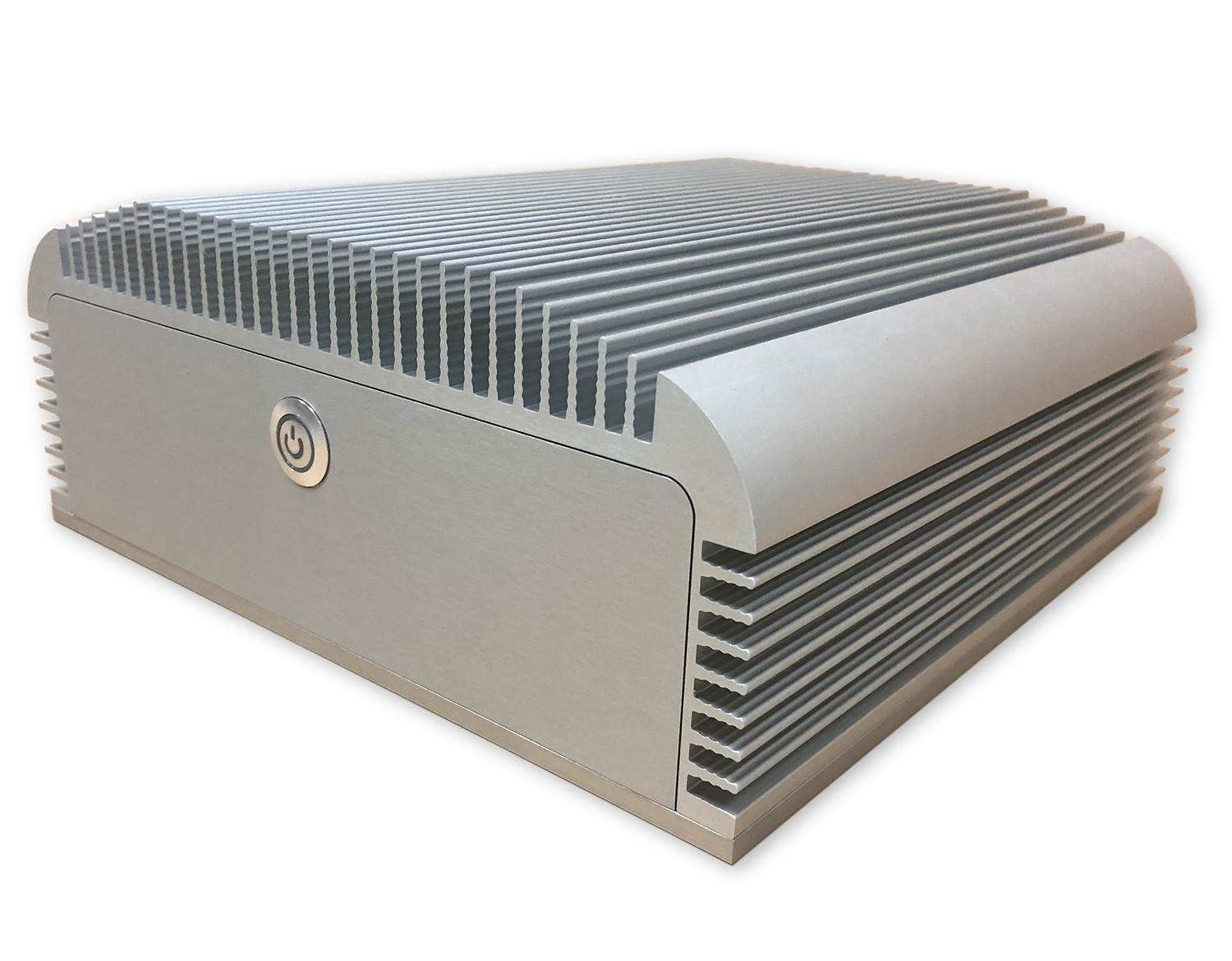

EM-IND-I13V is a small fanless PC made in Czech republic. The core of this PC is a motherboard with an AMD processor, made in Germany by KONTRON.

Ryzen, mini-ITX
AMD V1000 SoC
4xVideo out, IP50
WideTemp -10~50°C

Datasheet Datasheet
on request
Inquiry

Product parameters

Manufacturer EMKO
Video output DisplayPort
SATA 1x, 2x
Software support Linux, Windows
Audio Microfone input, Audio output
Memory type M.2 SSD PCIe, Key-M, M.2 PCIe, Key-B, Mini PCIe
Power Input DC 8-32V
Operating temperature -10~50°C
Size (L x W x H) 219 x 230 x 90mm
Market Industrial
Form Factor Mini-ITX
Power Input DC 8-32V (+5 / -5%)
Processor AMD Embedded V1000 Series SoC
LAN/USB/COM 2x RJ45 GLAN, 4x USB 3.1 Gen1 (2x opt.), 2x USB 3.1 Gen2, 2x USB 2.0 (opt.), 1x RS232/422/485, 3x RS232 (2x opt.)
Interface 2x SATA III 6Gb/s, 1x M.2 2280/2242/2230 (PCIe x4), 1x M.2 2280/2260/2252/2242 (PCIe x2), 1x Mini PCIe
Size 219 x 230 x 90mm
Operating temperature -10 ~ +50°C
Memory type 2x DDR4-2400/3200
DDR SO-DIMM

Mainboard:

  • Kontron D3713-V, mini-ITX, 24/7 Industrial series (Designed by Fujitsu)

Processor:

  • AMD Embedded V1000 Series SoC
  • V4 - V1807B Quad-Core 3.35/3.8GHz (Base/Boost), 35W TDP
  • V2 - V1605B Quad-Core 2.0/3.6GHz (Base/Boost), 12-25W TDP
  • V1 - V1202B Dual-Core 2.3/3.2GHz (Base/Boost), 12-25W TDP
  • Graphics AMD RADEON™ VEGA 1.0 / 1.1 / 1.3GHz (V1/V2/V4)

Memory:

  • DDR4 2400MHz (V1/V2) / 3200MHz (V4)
  • 2x slot SO-DIMM, max. 32GB

Product features:

  • 4 monitors support - 4x DisplayPort V1.4
  • 2x 2.5" bays + 2x m.2 2280
  • Anodized aluminium chassis with custom logo option (silk print or laser), color black or silver, size 219 x 230 x 90mm
  • Wide temperature range endurance -10~50°C, approved for 24/7 operation
  • IP50 protection (with 0.7m/s ambient airflow)
  • Vesa / Wall / DIN mounting options
  • System Guard / cTDP
  • HW Watchdog / AMD TPM V2.0 onboard
