EM-IP-K4021-U

Name: EM-IP-K4021-U
SKU: EM-IP-K4021-U
Availability: InStock

Catalog number: EM-IP-K4021-U

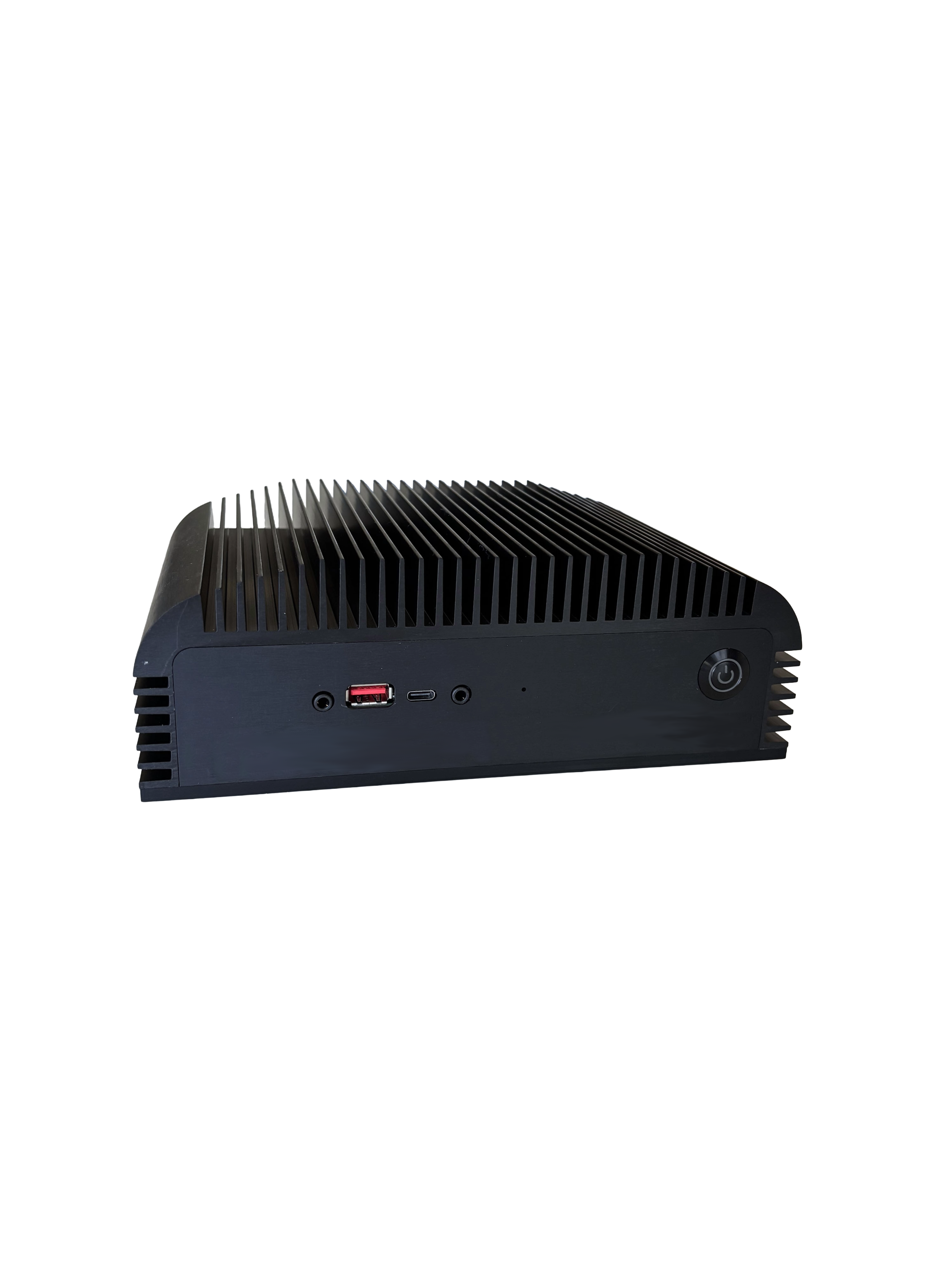

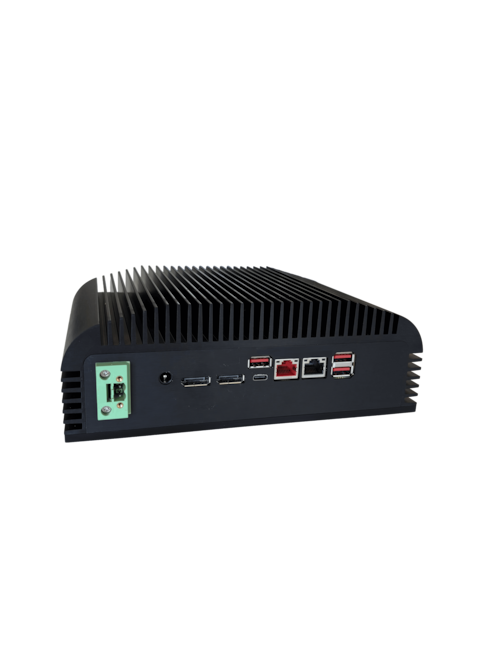

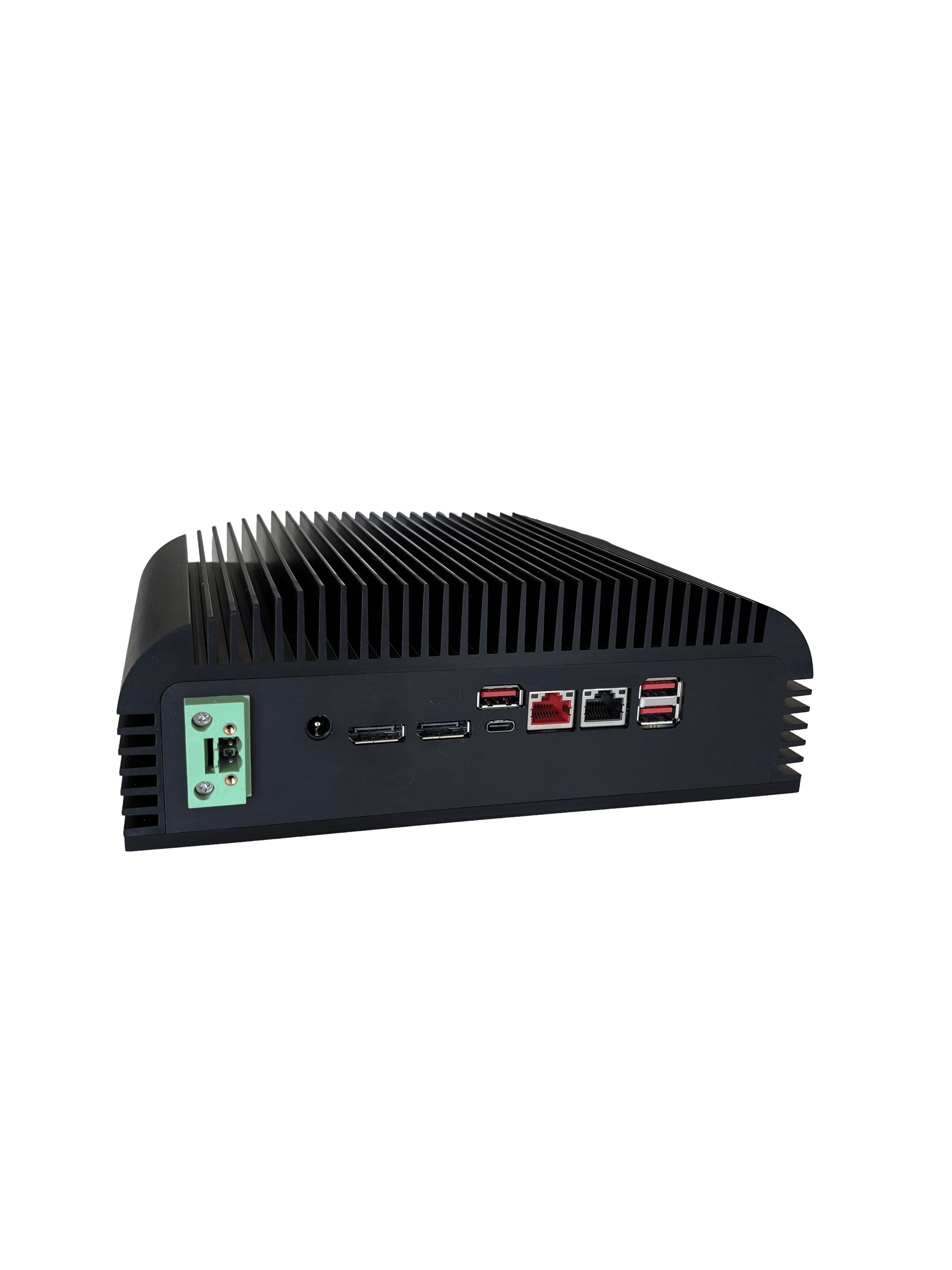

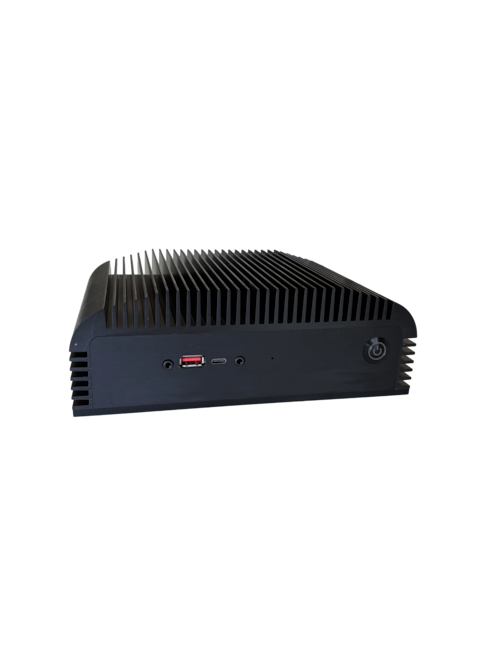

EM-IP-K4021-U is a small fanless PC manufactured in the CZ. The core of this PC is a motherboard with an INTEL Ultra processor from the German manufacturer KONTRON. Usage is in Kiosks, Digital signage, HMI, AI

Intel Core Ultra, Meteor Lake U
2x DP, 4x USB, 2x LAN
Fanless, IP50

Datasheet

on request

Inquiry

Product parameters

Manufacturer	EMKO
Video output	DisplayPort
SATA	1x, 2x
Software support	Linux, Windows
Memory type	M.2 SSD PCIe, Key-M, M.2 PCIe, Key-B, M.2 PCIe, Key-E
Power Input	DC 9-24V
Operating temperature	-30~50°C
Size (L x W x H)	159 x 153 x 67mm
Market	Industrial
Form Factor	Mini-STX
Power Input	DC 9-24V / USB-C Power delivery
Processor	Intel Core Ultra 5 125U / Intel Core Ultra 7 155U
LAN/USB/COM	2x DP, 4x USB, 2x LAN
Interface	2x SATA III 6Gb/s, 1x M.2 2242 / 2260 / 2280 (SATA / PCIe), 1x M.2 2230
Size	220 × 150 × 75mm
Operating temperature	-30 ~ +50°C
Memory type	DDR5 5600MHz
DDR	SO-DIMM

Mainboard:

Kontron K4021-U5, mini-STX, 24/7 industrial series

Processor:

Intel Core Ultra 5 125U / Intel Core Ultra 7 155U
integrated Intel® NPU (up to 11 TOPS), Intel GNA 3.5
TDP 15W

Memory:

DDR5 5600MHz
2x SO-DIMM socket, max. 96GB, non-ECC

Product features:

2x COM (RS-232/422/485) optional
Supports 2 display configuration by 2x DisplayPort
Anodized aluminium chassis with custom logo option (silk print or laser), color black / silver / customizable,
Size 220 × 150 × 75mm
Wide temperature range endurance -30~50°C
Approved for 24/7 usage
IP50 protection
Vesa / Wall / DIN mounting options
