EMKO EM-ENT-I

Catalog number: EM-ENT-I

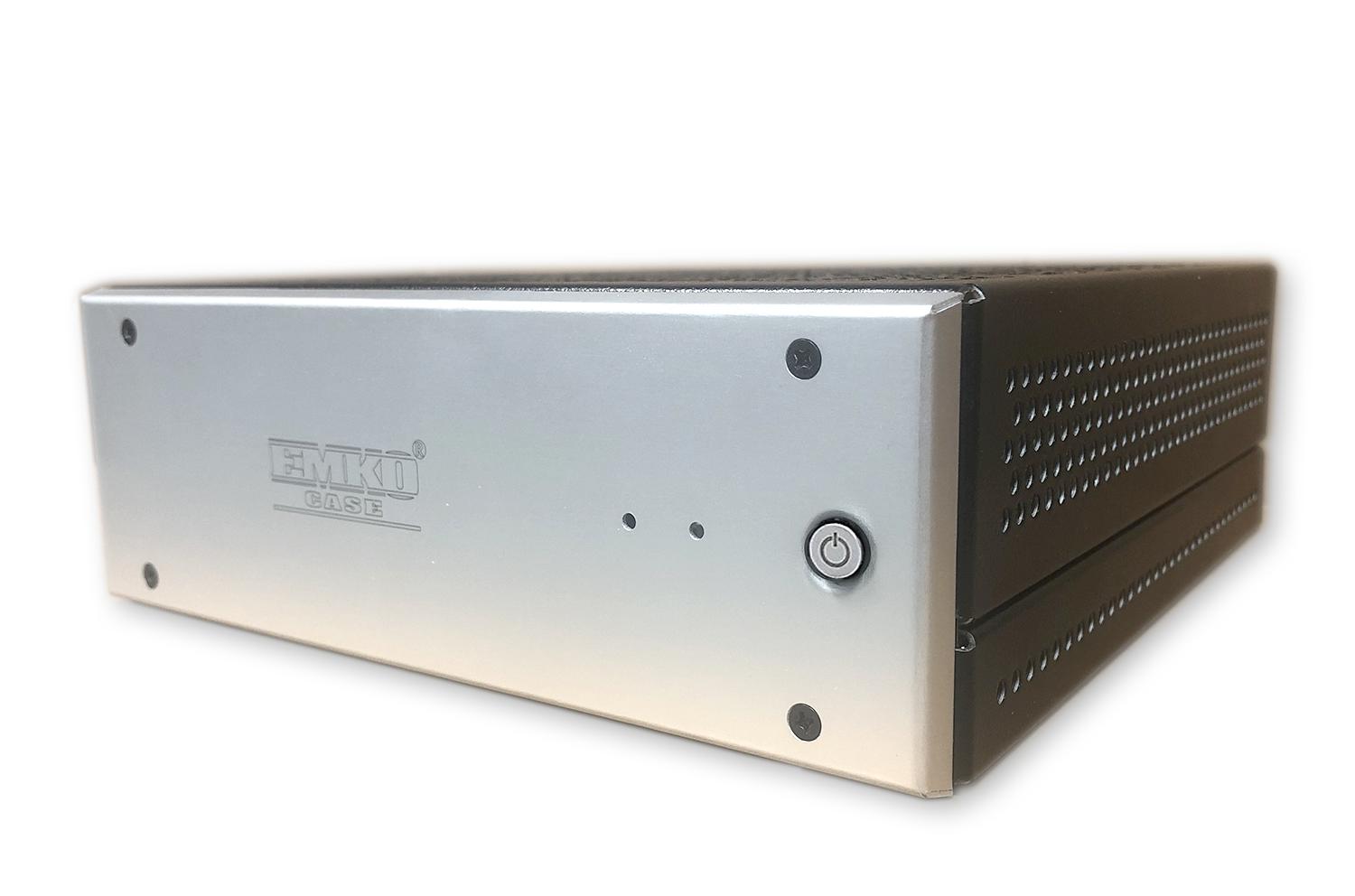

EM-ENT-I is a small industrial PC. It is a customized PC, made in Czech Republic.

Intel Gemini Lake SoC
2xDP, 2xLAN, 2xCOM
Wide temp 0~60°C

Datasheet Datasheet
on request
Inquiry

Product parameters

Manufacturer EMKO
Video output DisplayPort
SATA 1x, 2x
Software support Linux, Windows
Memory type M.2 PCIe, Key-B, M.2 PCIe, Key-E
Power Input DC 8-36V
Operating temperature 0~60°C
Size (L x W x H) 192 x 203 x 68mm
Market Industrial PC
Form Factor Mini-ITX
Power Input DC 8-36V
Processor Intel® Celeron J4005 (DC @2.7GHz) / Celeron J4105 (QC @2.5GHz) / Pentium J5005 (QC @2.8GHz)

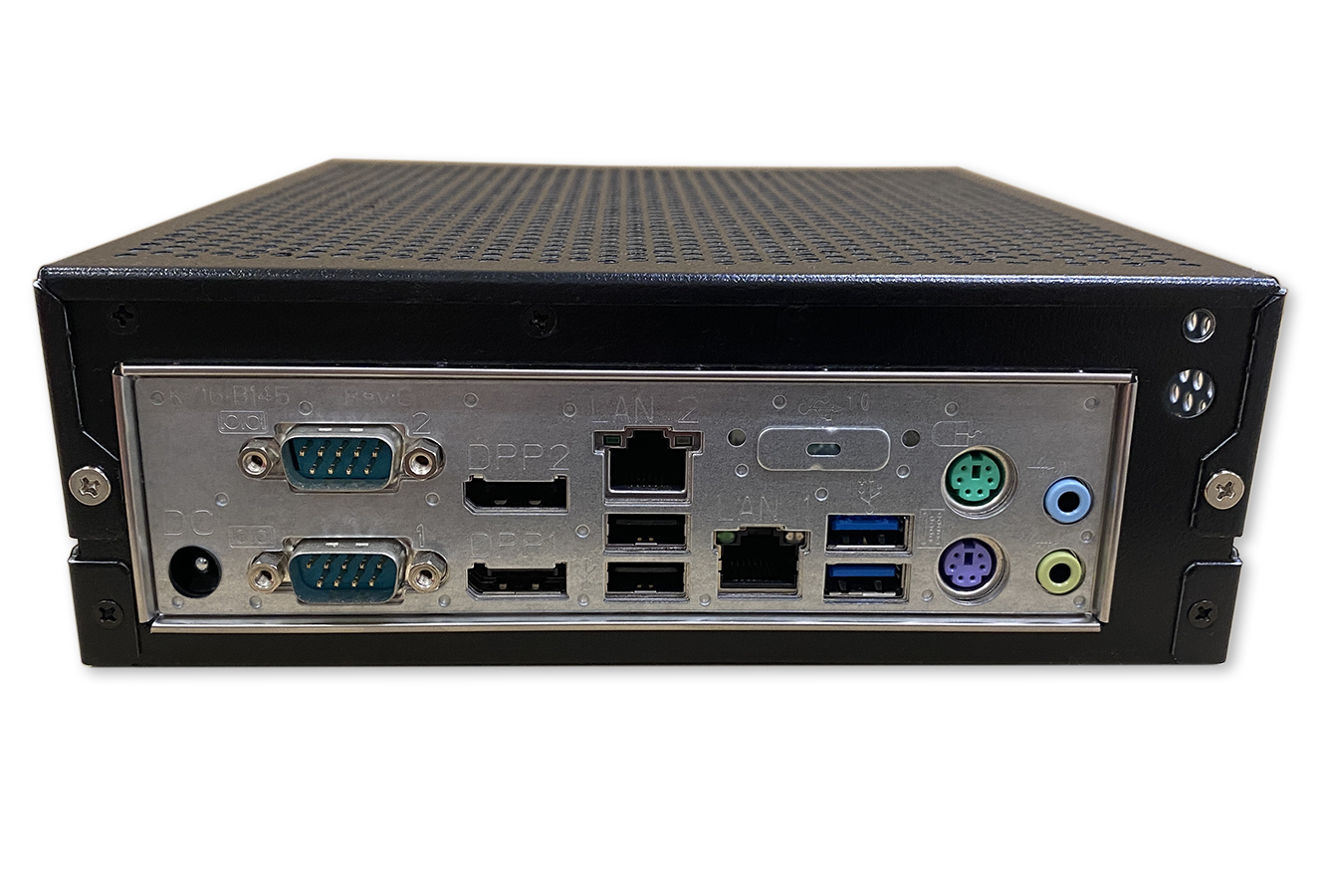

LAN/USB/COM 2x RJ45, 4x USB 3.1 Gen1 (2x opt), 6x USB 2.0 (4x opt), 4x COM (2x optional), 2x PS/2
Interface 2x SATA III 6Gb/s, 1x M.2 2242 / 2260 / 2280 (SATA / PCIe), 1x M.2 2230
Size 192 x 203 x 68mm
Operating temperature 0 ~ +60°C
Memory type DDR4-2400
DDR SO-DIMM

Mainboard:

  • Kontron D3543-Sx, mini-ITX, 24/7 industrial series (Designed by Fujitsu)

Processor:

  • Intel® Celeron J4005 (DC @2.7GHz) / Celeron J4105 (QC @2.5GHz) / Pentium J5005 (QC @2.8GHz)
  • integrated Intel® UHD Graphics 600 / 605
  • TDP 10W

Memory:

  • DDR4 2400MHz

  • 2x SO-DIMM socket up to 24GB

Product features:

  • Supports 2 display configuration by 2x DisplayPort V1.2
  • 2x COM (RS 232/422/485), optional COM3 (RS 232/422/485) a COM4 (RS 232)
  • 1x 2.5" SATA internal HDD (option)
  • Galvanized pre-coated metal sheet chassis, colour black / white / silver, ALU front panel (bended or milled) with custom logo (silk print or laser), size 192 x 203 x 68mm
  • Wide temperature range endurance 0~50°C fanless / 0~60°C with active fan
  • Vesa / Wall mounting options
