EMKO EM-ENT-S thin

Catalog number: EM-ENT-S_thin

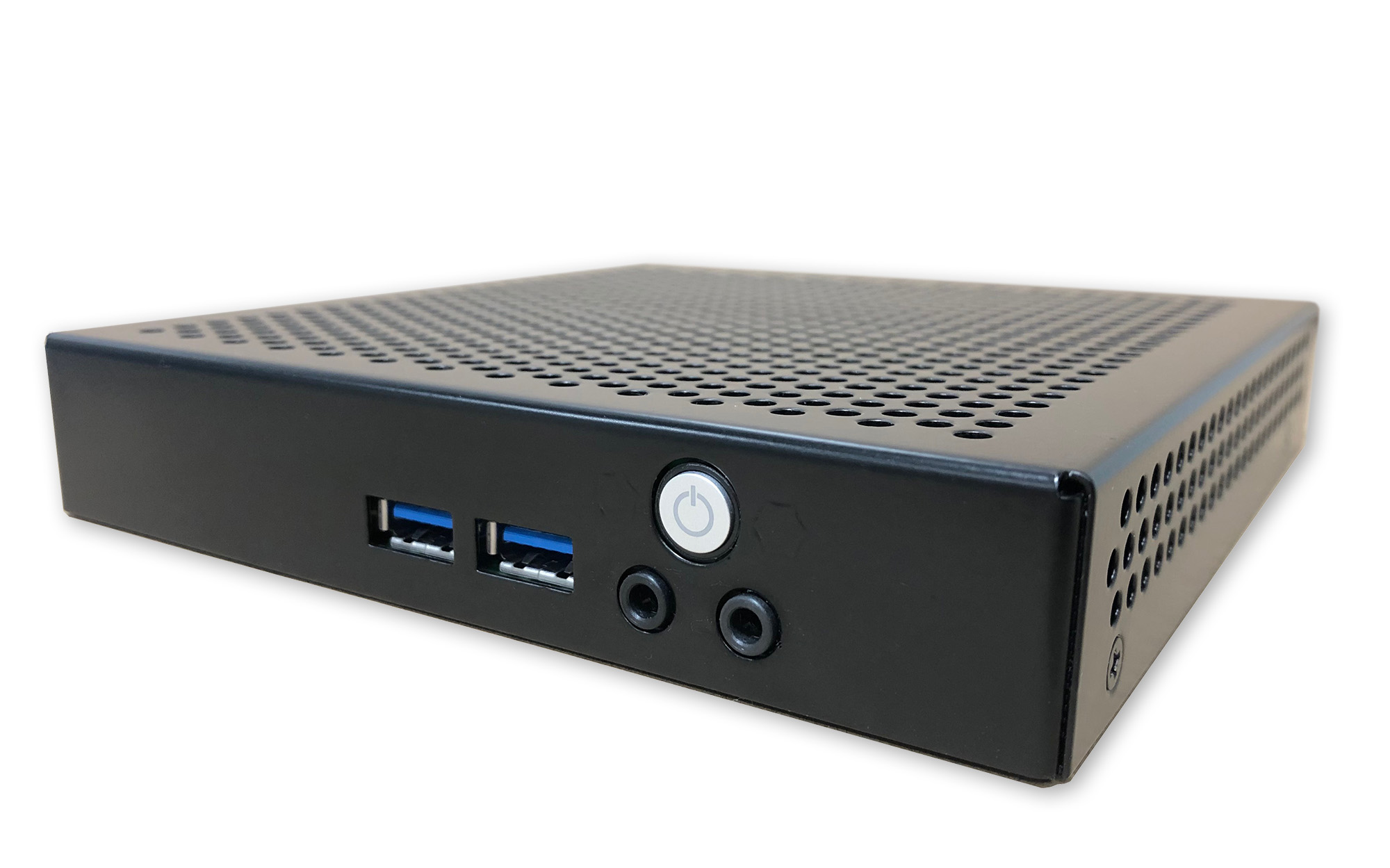

EM-ENT-S thin is a small industrial PC. It is a customized mini PC, made in Czech Republic. This PC is used in digital signage and other industrial solutions.

Intel Gemini Lake SoC
2x DP, 2x LAN
Fanless, 0.68liters
Wide temp -30~40°C

Datasheet Datasheet
on request
Inquiry

Product parameters

Manufacturer EMKO
Video output DisplayPort
SATA 1x, 2x
Software support Linux, Windows
Audio Audio output
Memory type M.2 PCIe, Key-B, M.2 PCIe, Key-E
Power Input DC 8-24V
Operating temperature -30~40°C
Size (L x W x H) 152 x 160 x 28mm
Market Digital Signage
Form Factor Mini-STX
Power Input DC 8-24V
Processor Intel® Celeron J4005 (DC @2.7GHz) / Celeron J4105 (QC @2.5GHz) / Pentium J5005 (QC @2.8GHz)

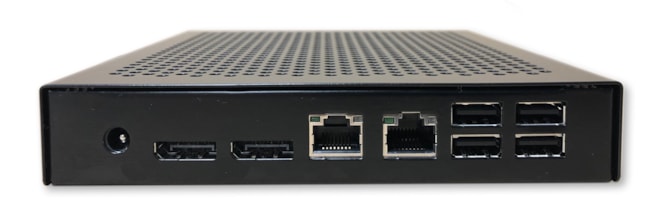

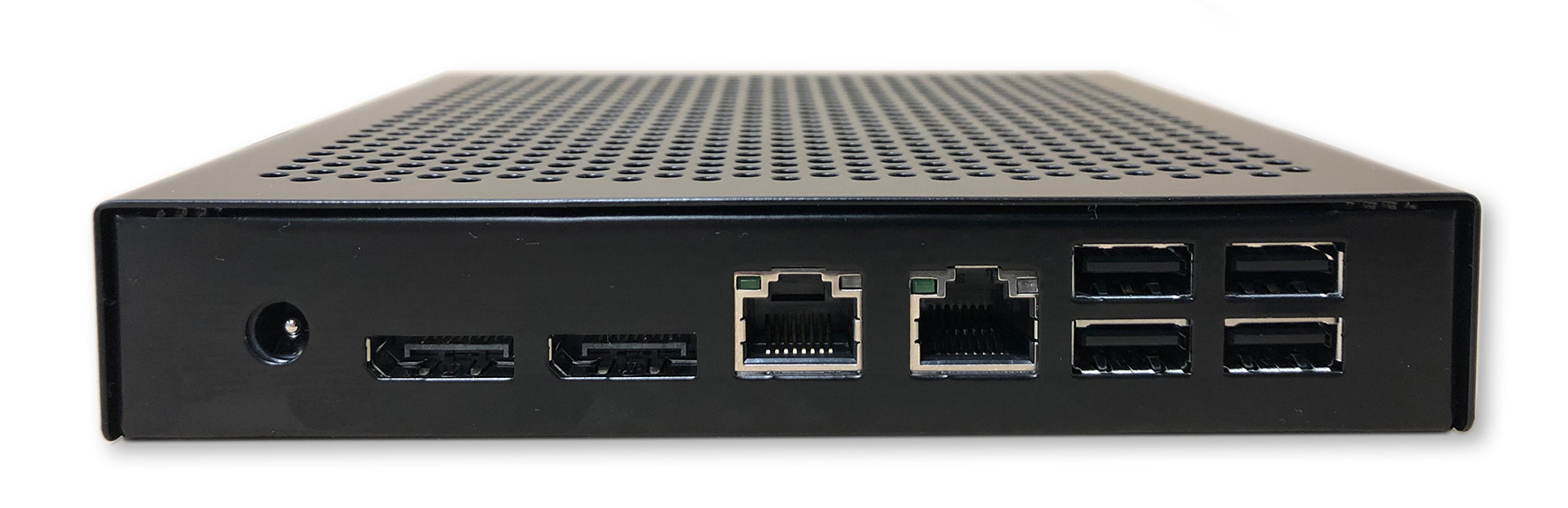

LAN/USB/COM 2x RJ45, 2x USB 3.1 Gen1, 4x USB 2.0
Interface 2x SATA III 6Gb/s, 1x M.2 2242 / 2260 / 2280 (SATA / PCIe), 1x M.2 2230
Size 152 × 160 × 28mm
Operating temperature -30 ~ +40°C
Memory type DDR4-2400
DDR SO-DIMM

Mainboard:

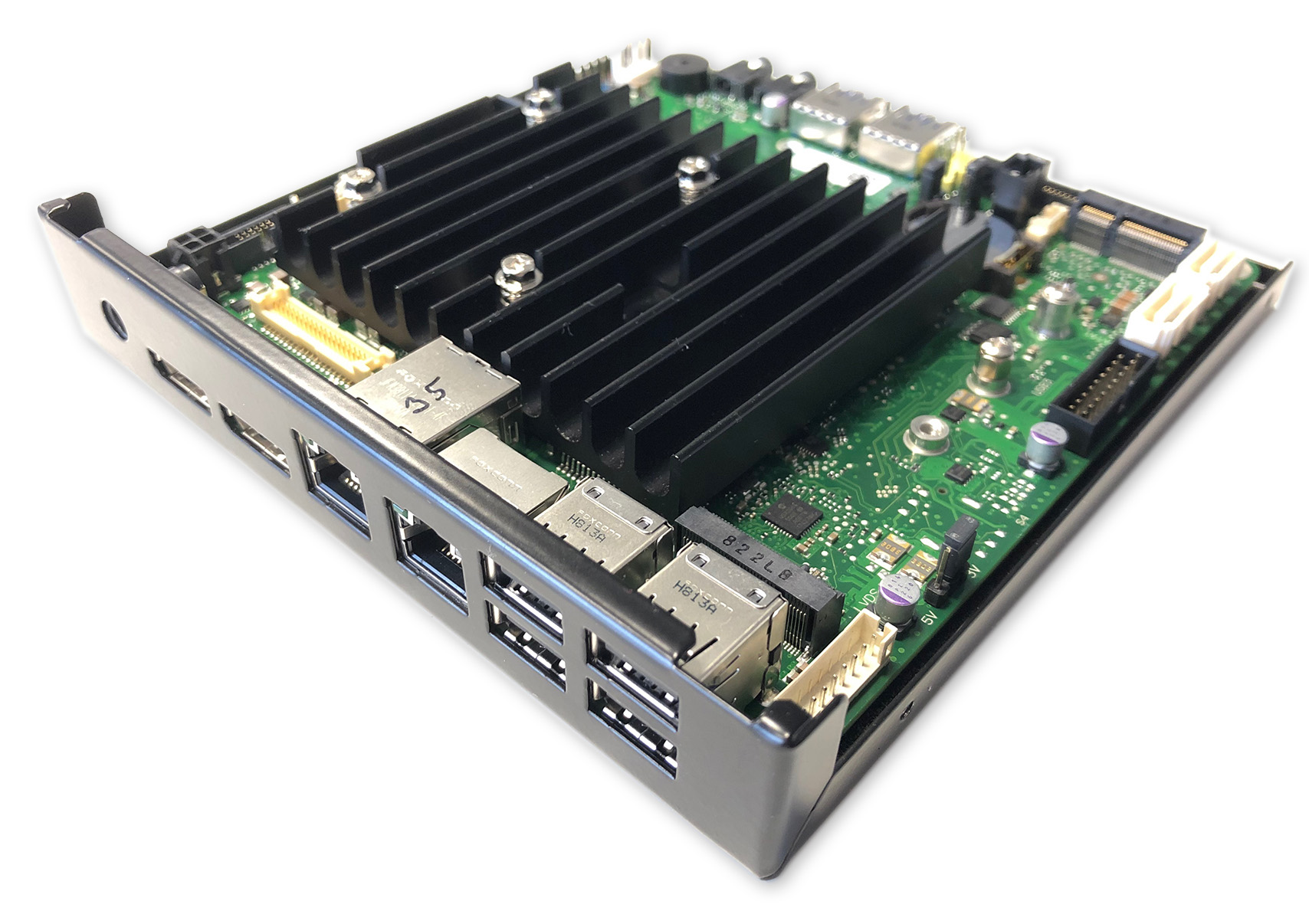

  • Kontron D3544-Sx, mini-STX, 24/7 industrial series (Designed by Fujitsu)

Processor:

  • Intel® Celeron J4005 (DC @2.7GHz) / Celeron J4105 (QC @2.5GHz) / Pentium J5005 (QC @2.8GHz)
  • integrated Intel® UHD Graphics 600 / 605
  • TDP 10W

Memory:

  • DDR4 2400MHz

  • 1x SO-DIMM socket

Product features:

  • Supports 2 display configuration by 2x DisplayPort

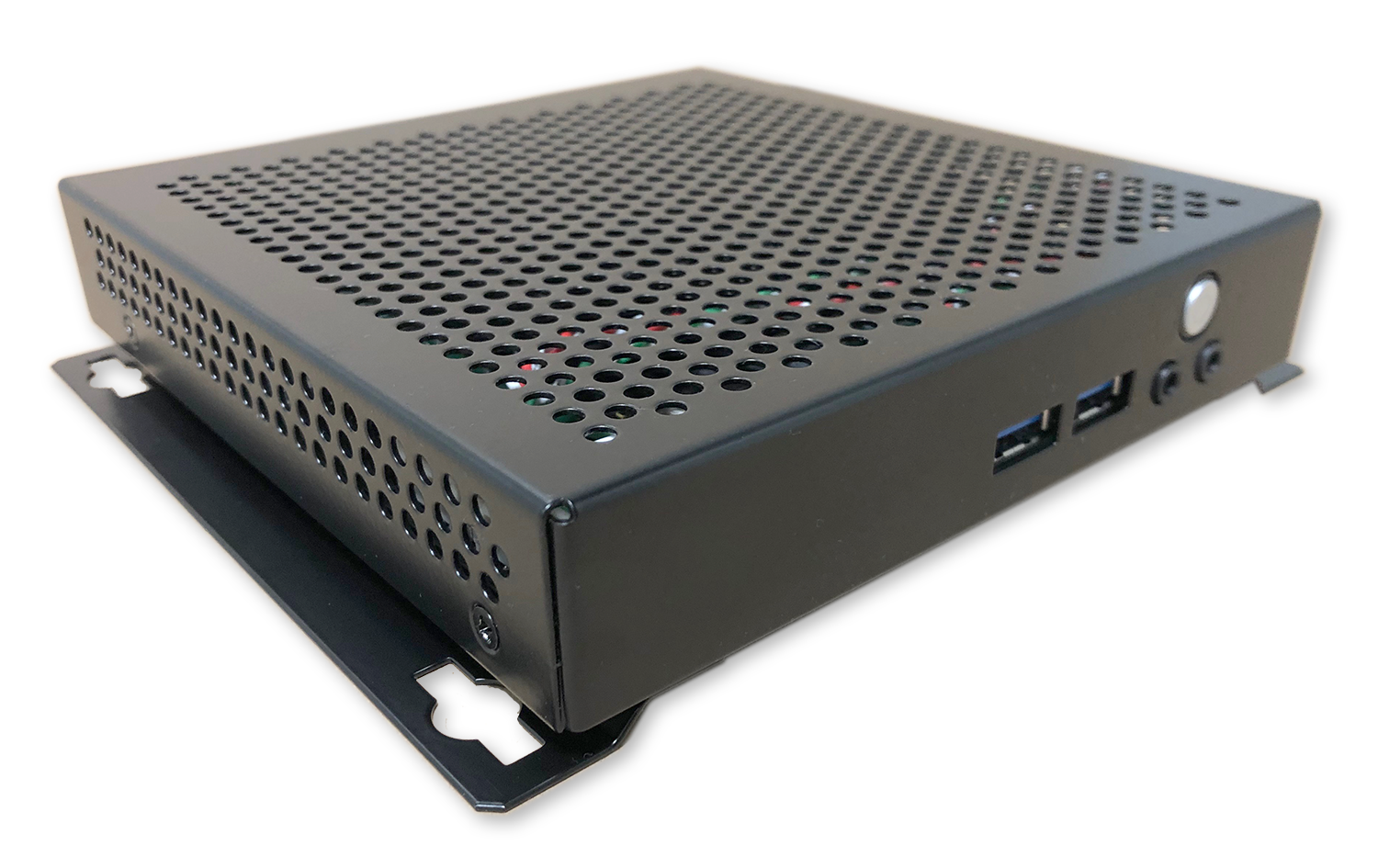

  • Galvanized pre-coated metal sheet chassis, colour black / silver, size 152 × 160 × 28mm
  • Wide temperature range endurance -30~40°C

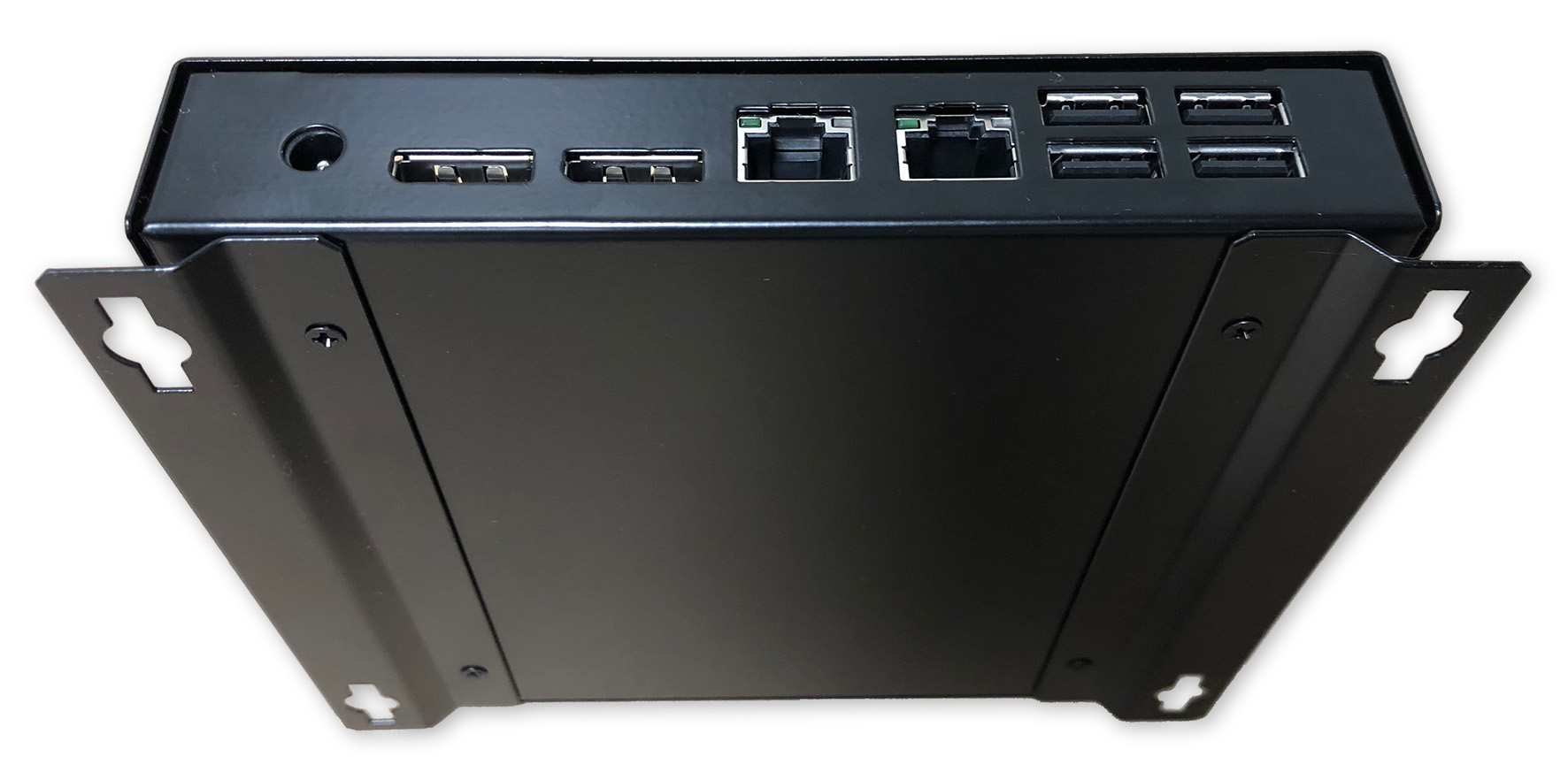

  • Vesa / Wall / DIN mounting options
