EMKO EM-IND-I33

Catalog number: EM-IND-I33

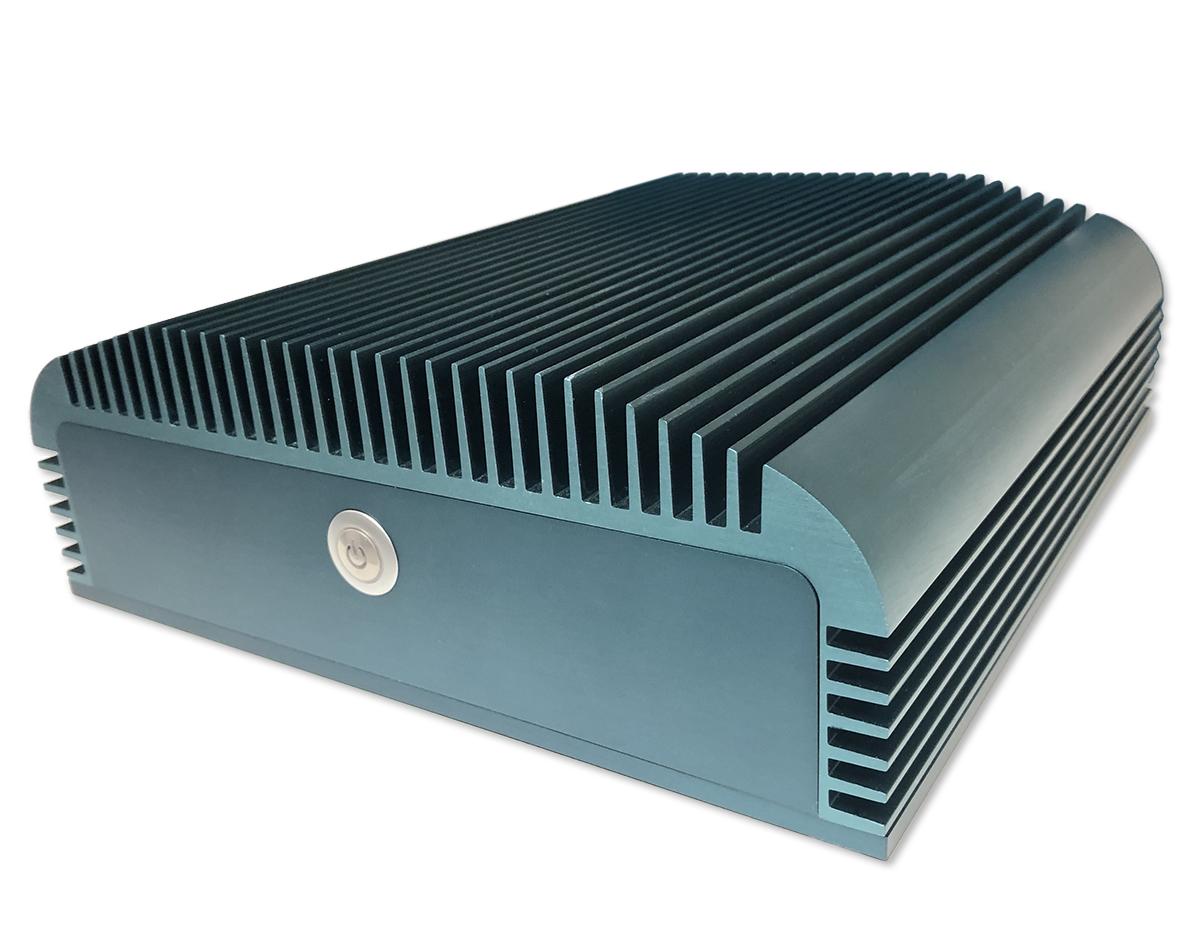

EMKO EM-IND-I33 is a small fanless PC manufactured in the CZ. The core of this PC is a motherboard with an INTEL processor from the German manufacturer KONTRON.

Q370, mini-ITX
Intel 8/9th gen. CPU
3xVideo out, IP50
WideTemp 0~50°C

Datasheet Datasheet
on request
Inquiry

Product parameters

Manufacturer EMKO
Video output DisplayPort, DVI-D
SATA 1x, 2x, 3x, 4x
Software support Linux, Windows
Audio Microfone input, Audio output
Memory type M.2 SSD PCIe, Key-M, Mini PCIe
Power Input DC 12V
Operating temperature 0~50℃
Size (L x W x H) 219 x 230 x 90mm
Market Industrial
Form Factor Mini-ITX
Power Input DC 12V (+5 / -5%)
Processor Intel® Core™ i9 / i7 / i5 / i3 – (8/9th gen.) / Pentium® / Celeron® processor series
LAN/USB/COM 2x RJ45 GLAN, 4x USB 3.1 Gen1 (2x opt.), 2x USB 3.1 Gen2, 6x USB 2.0 (2x opt.), 2x RS232 (1x option with RS485/422 support)
Interface 4x SATA III 6Gb/s, 1x M.2 2280 (PCIe NVME), 1x Mini PCIe
Size 219 x 230 x 90mm
Operating temperature 0 ~ +50°C
Memory type 2x DDR4-2666
DDR SO-DIMM

Mainboard:

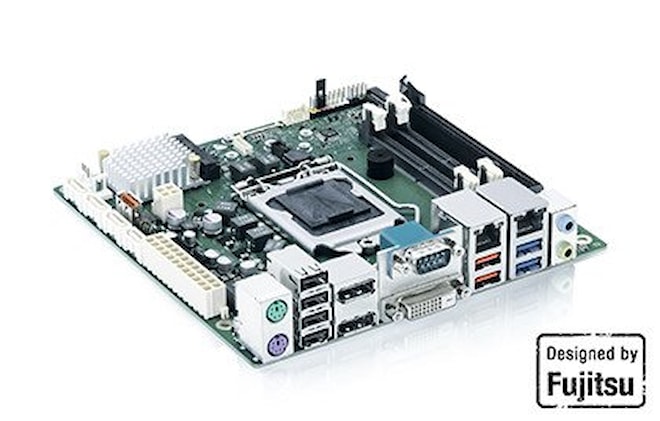

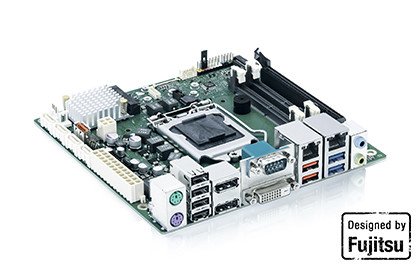

  • Kontron D3633-S, mini-ITX, 24/7 Industrial series (Designed by Fujitsu)

Processor:

  • Intel® 8th & 9th generation Core i3 / i5 / i7 / i9, Intel® Pentium / Celeron Processors
  • Socket LGA1151
  • TDP 35W

Memory:

  • DDR4 2666MHz

  • 2x SO-DIMM socket, max. 64GB

Product features:

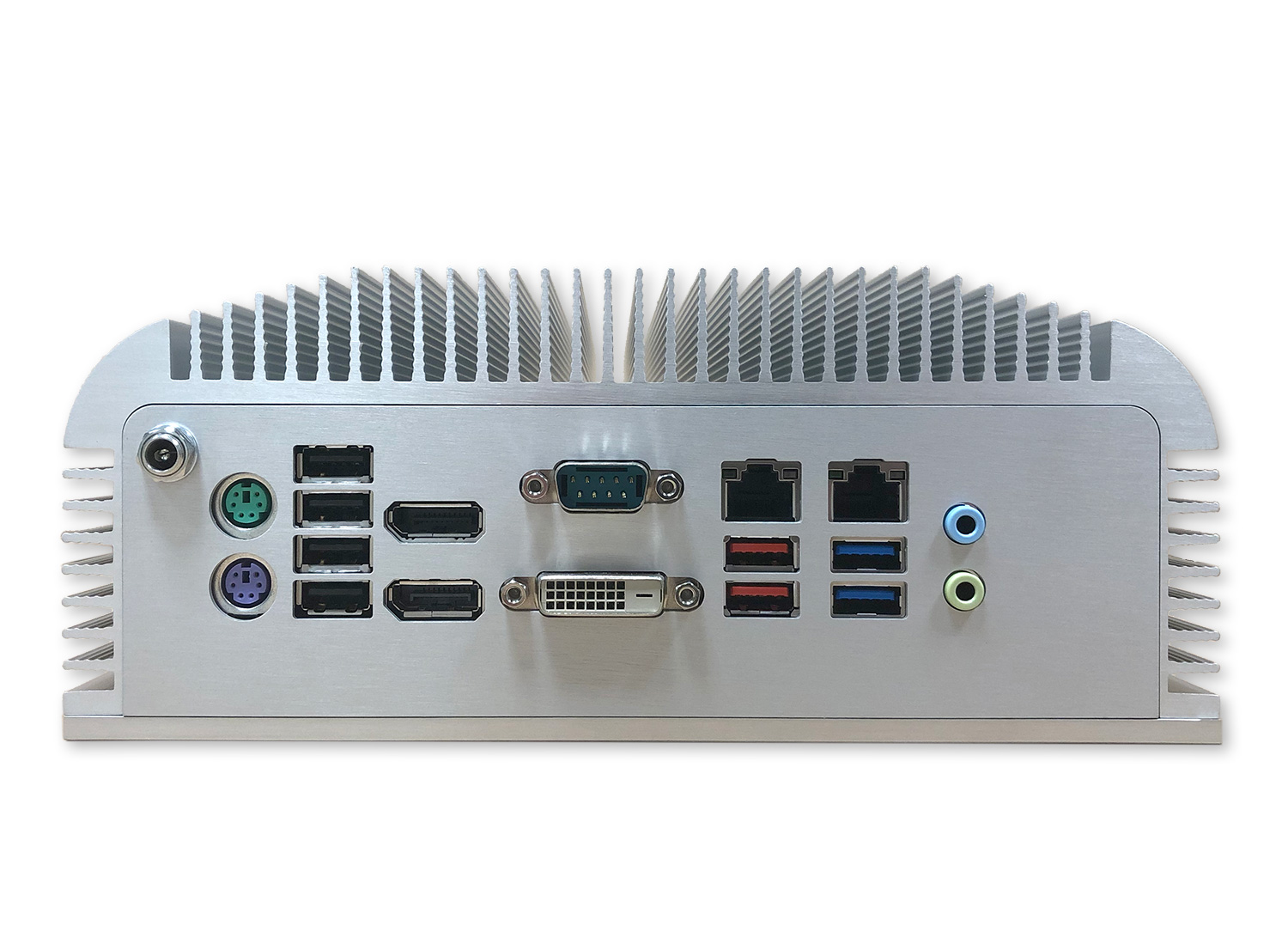

  • 3 monitors support - 2x DisplayPort, 1x DVI-D
  • 2x 2.5" HDD with HW RAID support + 1x m.2 2280

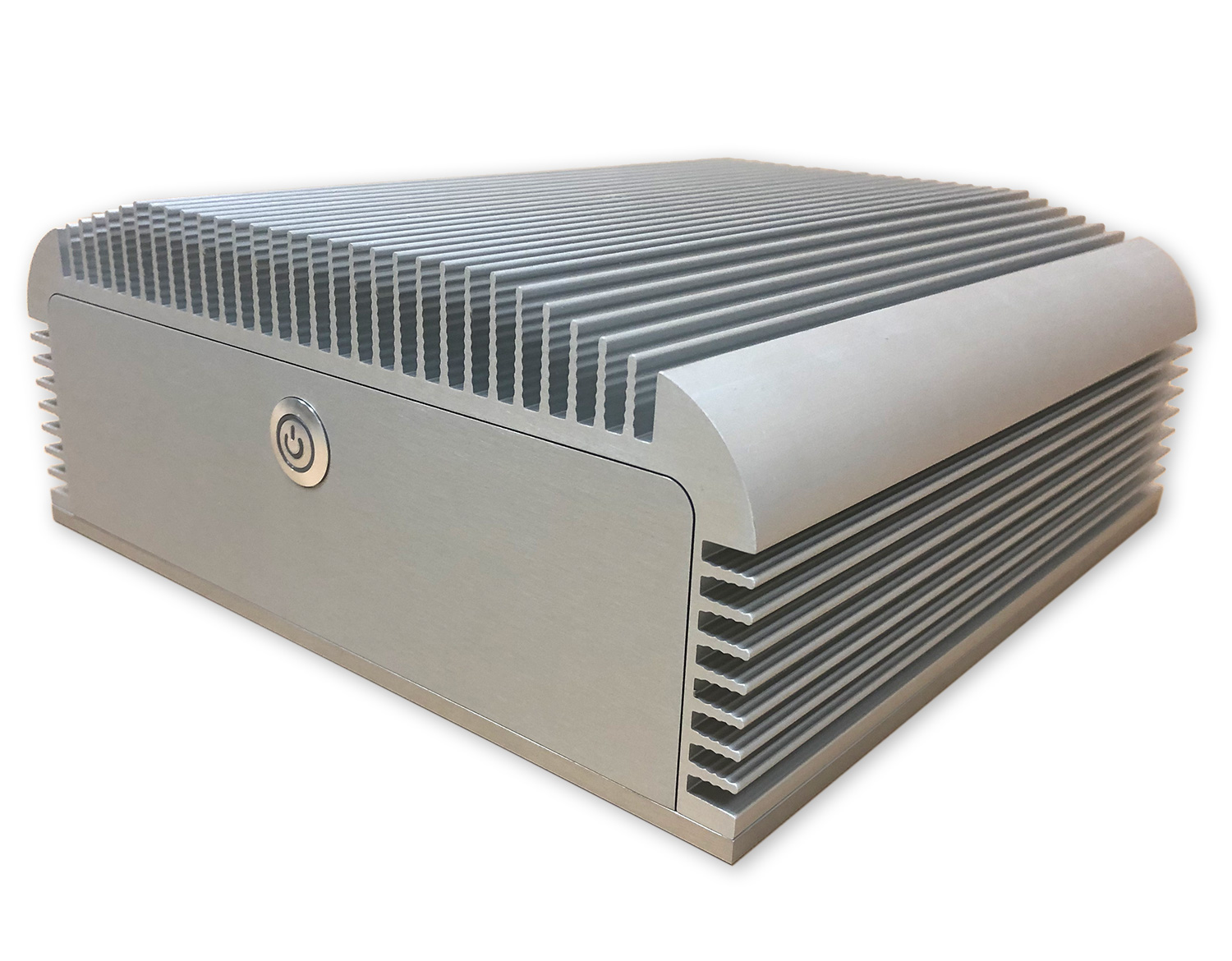

  • Anodized aluminium chassis with custom logo option (silk print or laser), color black or silver, size 219 x 230 x 90mm
  • Wide temperature range endurance 0~50°C, approved for 24/7 operation
  • IP50 protection (with 0.7m/s ambient airflow)
  • Vesa / Wall / DIN mounting options
  • iAMT 12.0, Intel vPro
  • HW Watchdog / Intel® TPM V2.0 onboard
