EMKO EM-IND-I43

Catalog number: EM-IND-I43

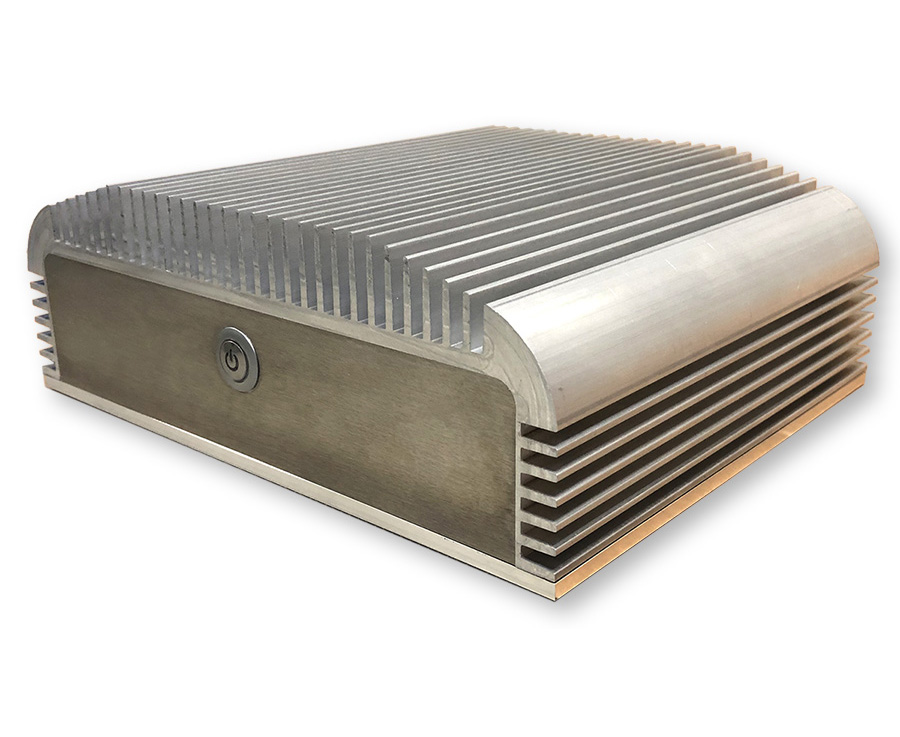

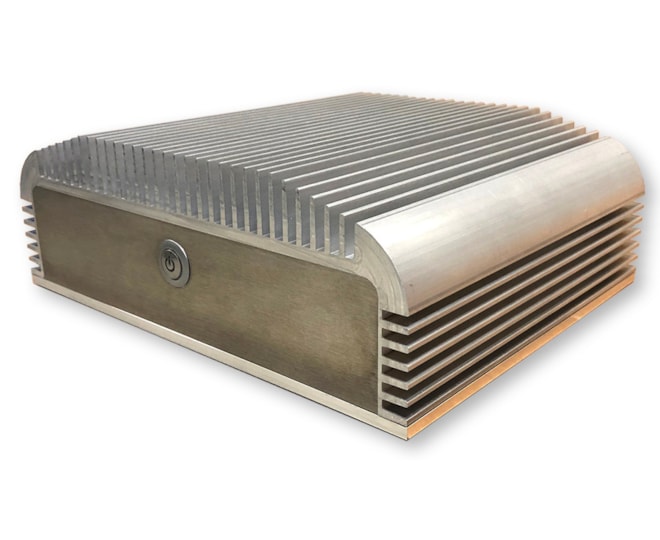

EMKO EM-IND-I43 is a small fanless PC manufactured in the CZ. The core of this PC is a motherboard with an INTEL processor from the German manufacturer KONTRON.

Intel Gemini Lake SoC
4x COM, 2x DP, 2x LAN
Fanless, IP50
WideTemp 0~50°C

Datasheet Datasheet
on request
Inquiry

Product parameters

Manufacturer EMKO
Video output DisplayPort
SATA 1x, 2x
Software support Linux, Windows
Audio Microfone input, Audio output
Memory type M.2 PCIe, Key-B, M.2 PCIe, Key-E, Mini PCIe
Power Input DC 8-36V
Operating temperature 0~50℃
Size (L x W x H) 219 x 180 x 76mm
Market Industrial
Form Factor Mini-ITX
Power Input DC 8-36V
Processor Intel® Celeron J4005 (DC @2.7GHz) / Celeron J4105 (QC @2.5GHz) / Pentium J5005 (QC @2.8GHz)
LAN/USB/COM 2x RJ45, 4x USB 3.1 Gen1 (2x opt), 6x USB 2.0 (4x opt), 4x COM (2x optional), 2x PS/2
Interface 2x SATA III 6Gb/s, 1x M.2 2242 / 2260 / 2280 (SATA / PCIe), 1x M.2 2230
Size 219 x 180 x 76mm
Operating temperature 0 ~ +50°C
Memory type 2x DDR4-2400
DDR SO-DIMM

Mainboard:

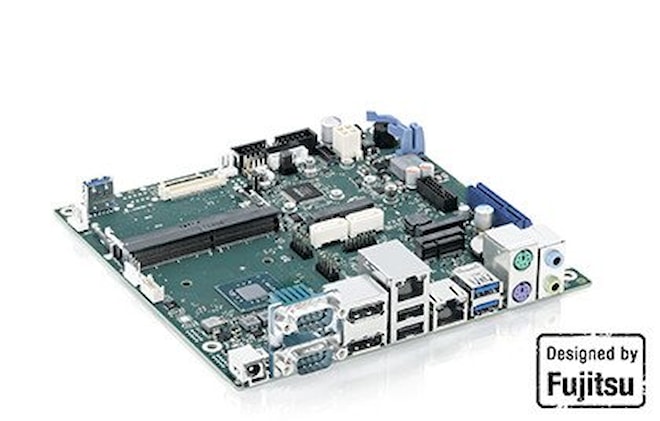

  • Kontron D3543-Sx, mini-ITX, 24/7 industrial series (Designed by Fujitsu)

Processor:

  • Intel® Celeron J4005 (DC @2.7GHz) / Celeron J4105 (QC @2.5GHz) / Pentium J5005 (QC @2.8GHz)
  • integrated Intel® UHD Graphics 600 / 605
  • TDP 10W

Memory:

  • DDR4 2400MHz

  • 2x SO-DIMM socket, max. 24GB

Product features:

  • 4x COM RS-232/422/485 (2x optional)
  • Supports 2 display configuration by 2x DisplayPort V1.2
  • Anodized aluminium chassis with custom logo option (silk print or laser), color black or silver, size 219 x 180 x 76mm
  • Wide temperature range endurance 0~50°C
  • Approved for 24/7 usage
  • IP50 protection
  • Vesa / Wall / DIN mounting options
