EMKO EM-IND-S54

Catalog number: EM-IND-S54

EMKO EM-IND-S54 is a small fanless PC manufactured in the CZ. The core of this PC is a motherboard with an INTEL processor from the German manufacturer KONTRON.

H310, mini-STX
Intel 8/9th gen. CPU
2xVideo out, IP30/50
WideTemp -40~40°C

Datasheet Datasheet
on request
Inquiry

Product parameters

Manufacturer EMKO
Video output HDMI, DisplayPort
SATA 1x
Software support Linux, Windows
Memory type M.2 SSD PCIe, Key-M, M.2 PCIe, Key-E
Power Input DC 19V
Operating temperature -40~40°C
Size (L x W x H) 159 x 153 x 67mm
Market Industrial
Form Factor Mini-STX
Power Input DC 19V (+10 / -15%)
Processor Intel® Core™ i9 / i7 / i5 / i3 – (8/9th gen.) / Pentium® / Celeron® processor series
LAN/USB/COM 1x RJ45 GLAN, 3x USB 3.1 Gen1, 4x USB 2.0 (2x opt.), 1x USB 3.1 Type-C
Interface 1x SATA III 6Gb/s, 1x M.2 2280 (PCIe NVME), 1x M.2 2230 for WiFi/BT module
Size 159 × 153 × 67mm
Operating temperature -40 ~ +40°C
Memory type 2x DDR4-2666
DDR SO-DIMM

Mainboard:

  • Kontron D3654-B, mini-STX, 24/7 Extended lifecycle series (Designed by Fujitsu)

Processor:

  • Intel® 8th & 9th generation Core i3 / i5 / i7 / i9, Intel® Pentium / Celeron Processors
  • Socket LGA1151
  • TDP 15W

Memory:

  • DDR4 2666MHz

  • 2x SO-DIMM socket, max. 32GB

Product features:

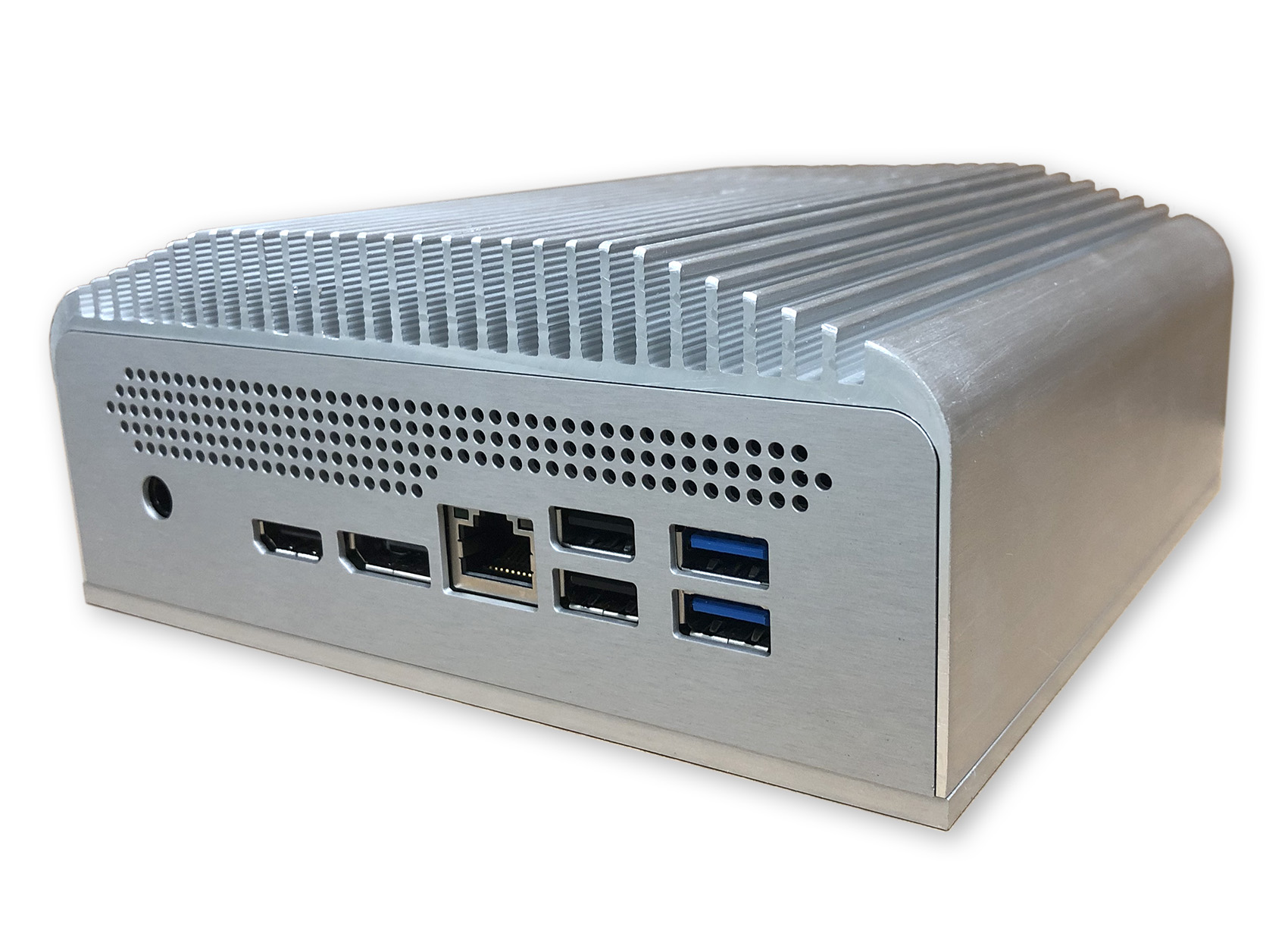

  • 2 monitors support - 1x DisplayPort, 1x HDMI

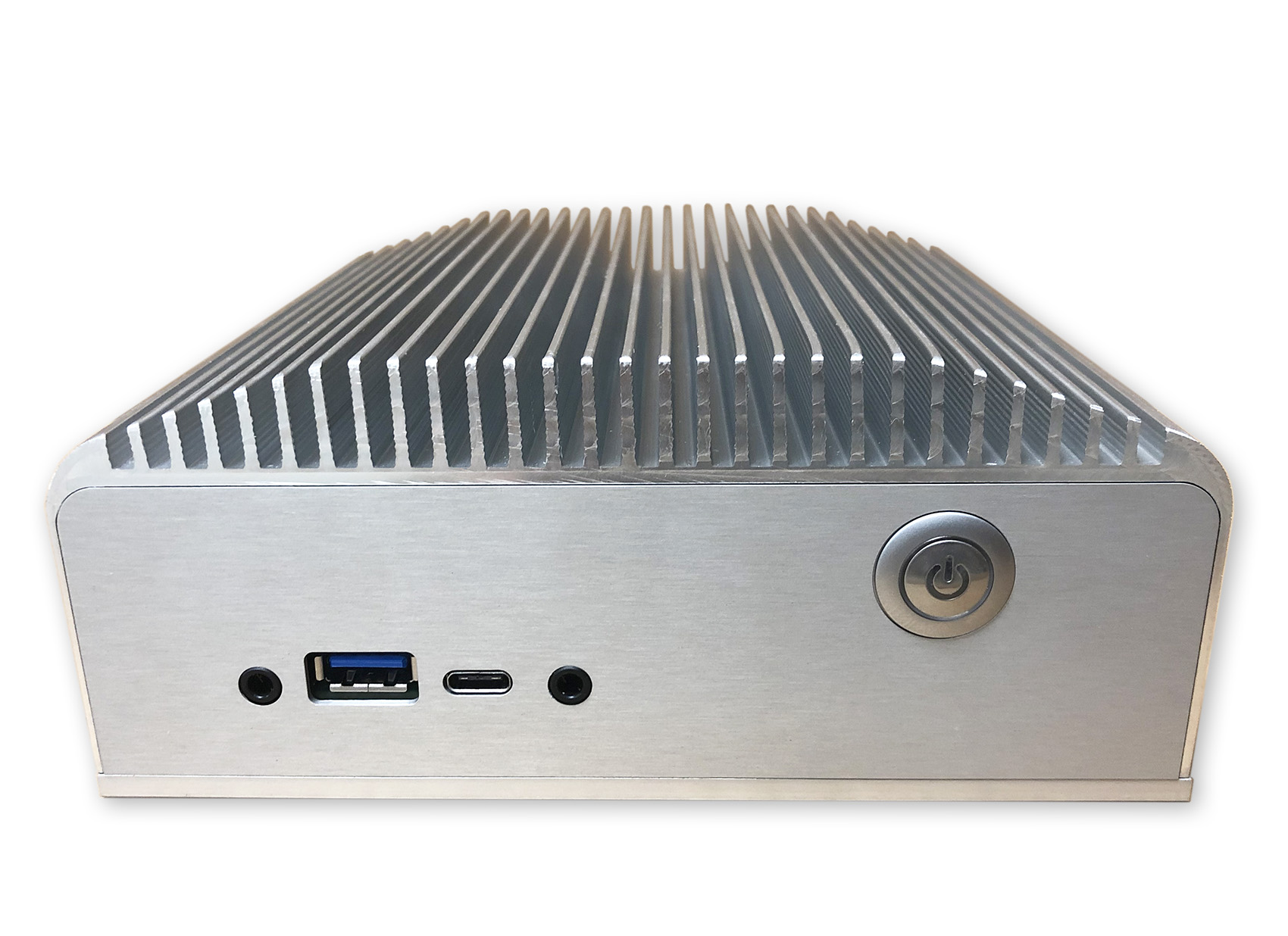

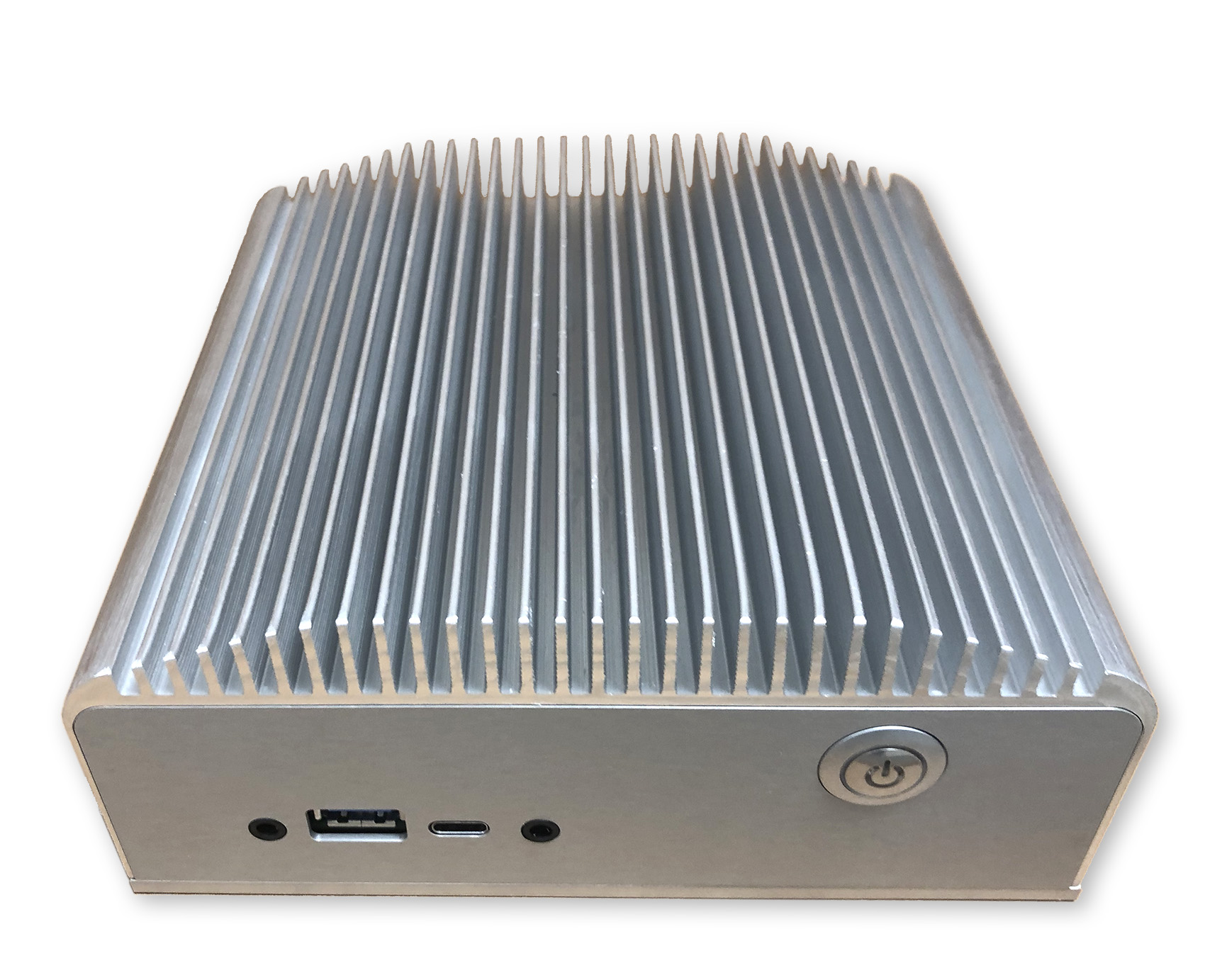

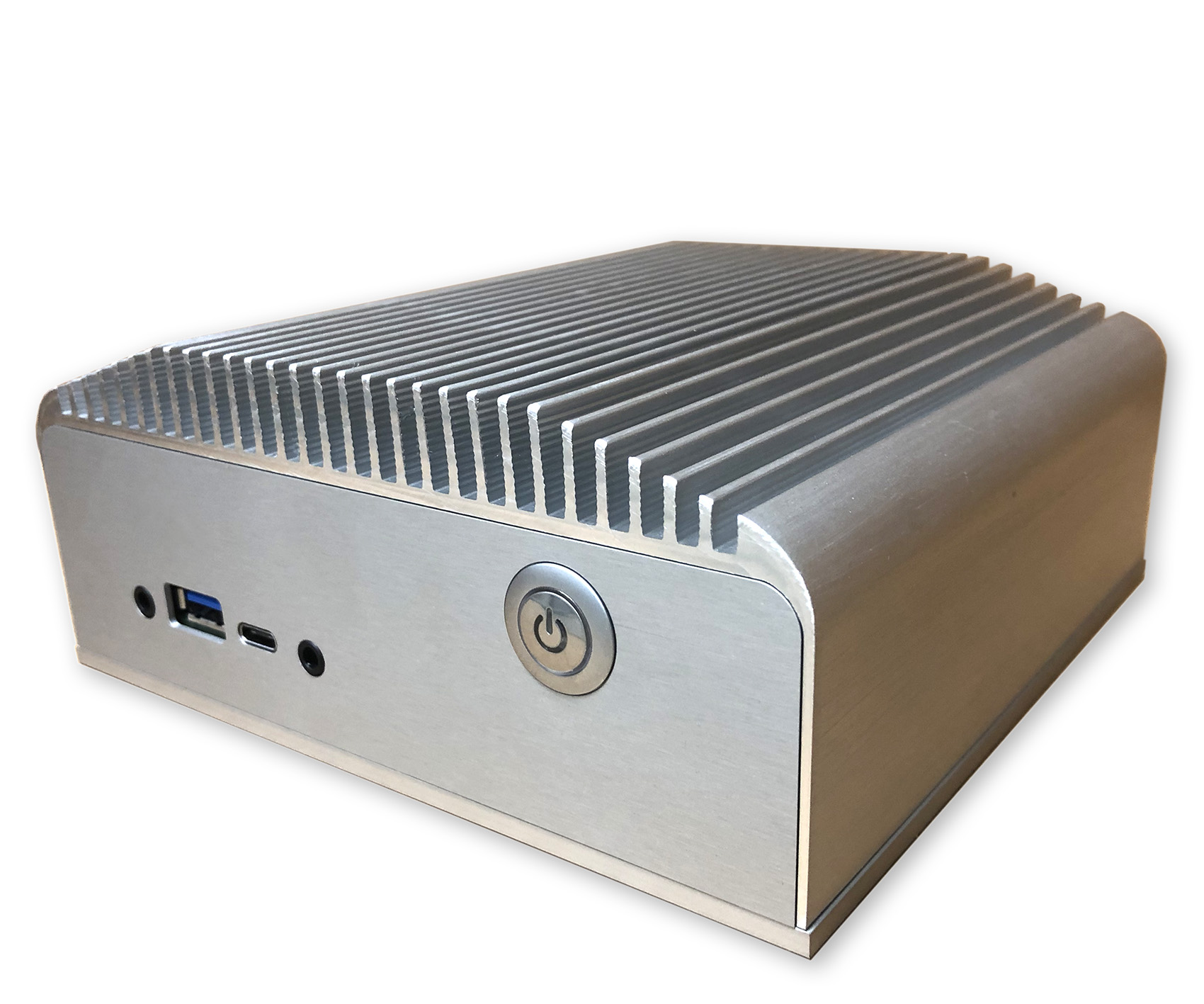

  • Anodized aluminium chassis with custom logo option (silk print or laser), color black or silver, size 159 × 153 × 67mm
  • Wide temperature range endurance -40~40°C, approved for 24/7 operation
  • IP50 protection (with 0.7m/s ambient airflow) / IP30 protection (with 0.3m/s ambient airflow)
  • Vesa / Wall / DIN mounting options
  • HW Watchdog / Intel® TPM V2.0 onboard
