EMKO EM-VAL-I thin

Catalog number: EM-VAL-I_thin

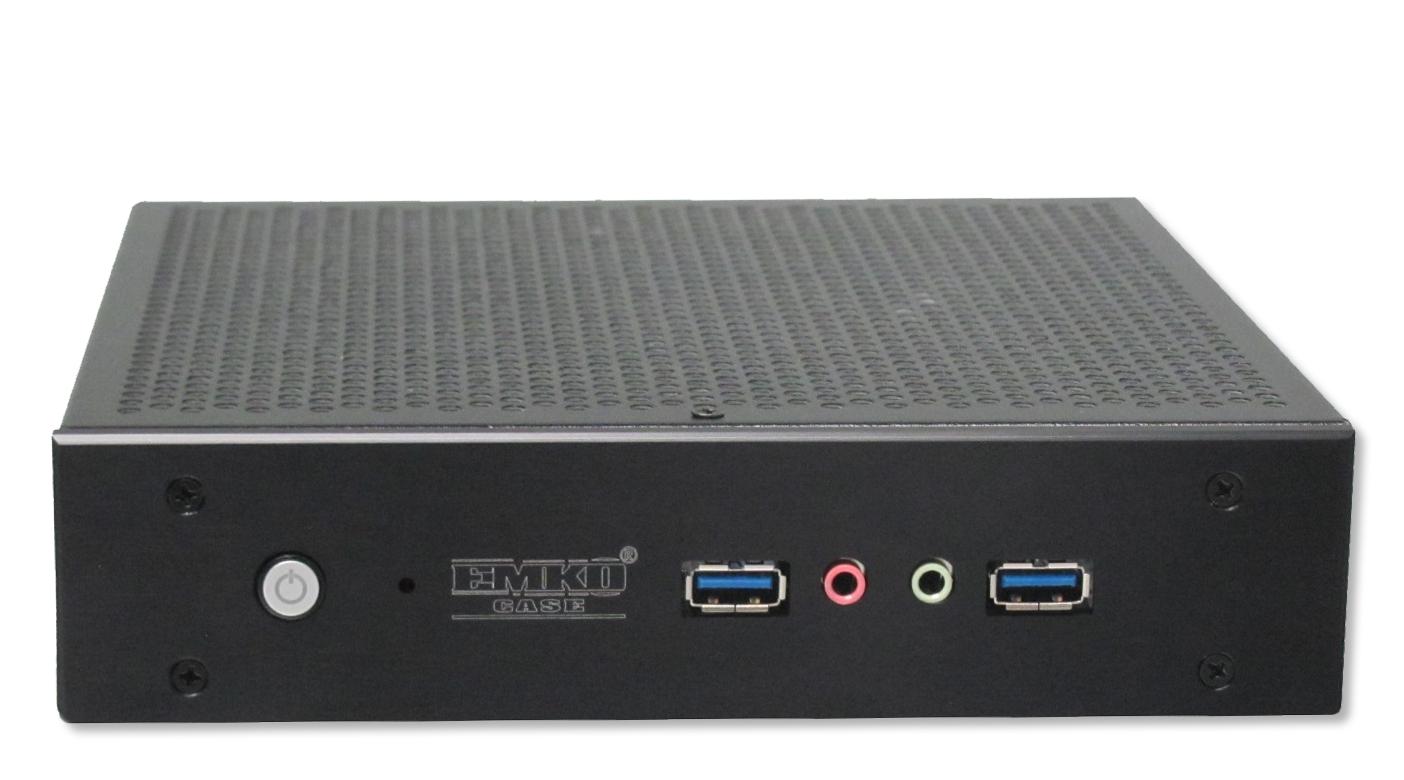

EM-VAL-I thin is a small industrial PC. It is a customized PC, made in Czech Republic.

Intel H310, mini-ITX
Intel 8/9th gen. CPU
DP,HDMI,COM,WiFi
Active 0~50°C

Datasheet Datasheet
on request
Inquiry

Product parameters

Manufacturer EMKO
Video output HDMI, DisplayPort
SATA 1x, 2x
Software support Linux, Windows
Audio Microfone input, Audio output
Memory type M.2 SSD PCIe, Key-M, M.2 PCIe, Key-E
Power Input DC 12V
Operating temperature 0~50℃
Size (L x W x H) 192 x 203 x 45mm
Market Industrial
Form Factor Mini-ITX
Power Input Dual DC 12V / 19-24V
Processor Intel® Core™ i9 / i7 / i5 / i3 – (8/9th gen.) / Pentium® / Celeron® processor series

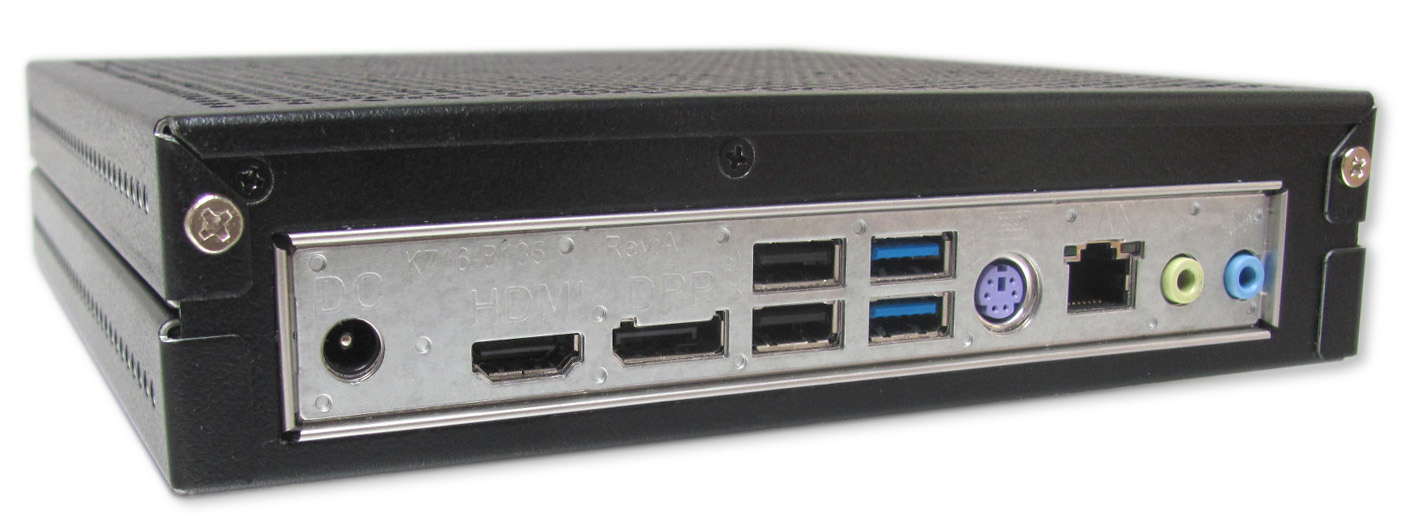

LAN/USB/COM 1x RJ45, 4x USB 3.1 Gen1 (2x optional), 4x USB 2.0 (2x optional), 1x COM optional, 1x PS/2
Interface 2x SATA III 6Gb/s, 1x M.2 2280 (PCIe NVME), 1x M.2 2230 for WiFi/BT module
Size 192 × 203 × 45mm
Operating temperature Active 0 ~ 50°C
Memory type DDR4-2666
DDR 2x SO-DIMM

Mainboard:

  • Fujitsu D3674-B, mini-ITX, 24/7 Extended lifecycle series

Processor:

  • Intel® 8th & 9th generation Core i3 / i5 / i7 / i9 Processors
  • Socket LGA1151
  • TDP 35W

Memory:

  • DDR4 2666MHz

  • 2x SO-DIMM socket, max. 32GB

Product features:

  • Supports 2 display configuration by 1x DisplayPort, 1x HDMI
  • 1x COM1 (RS 232) optional
  • Internal Wi-Fi M.2 module incl. 2x antenna (optional)

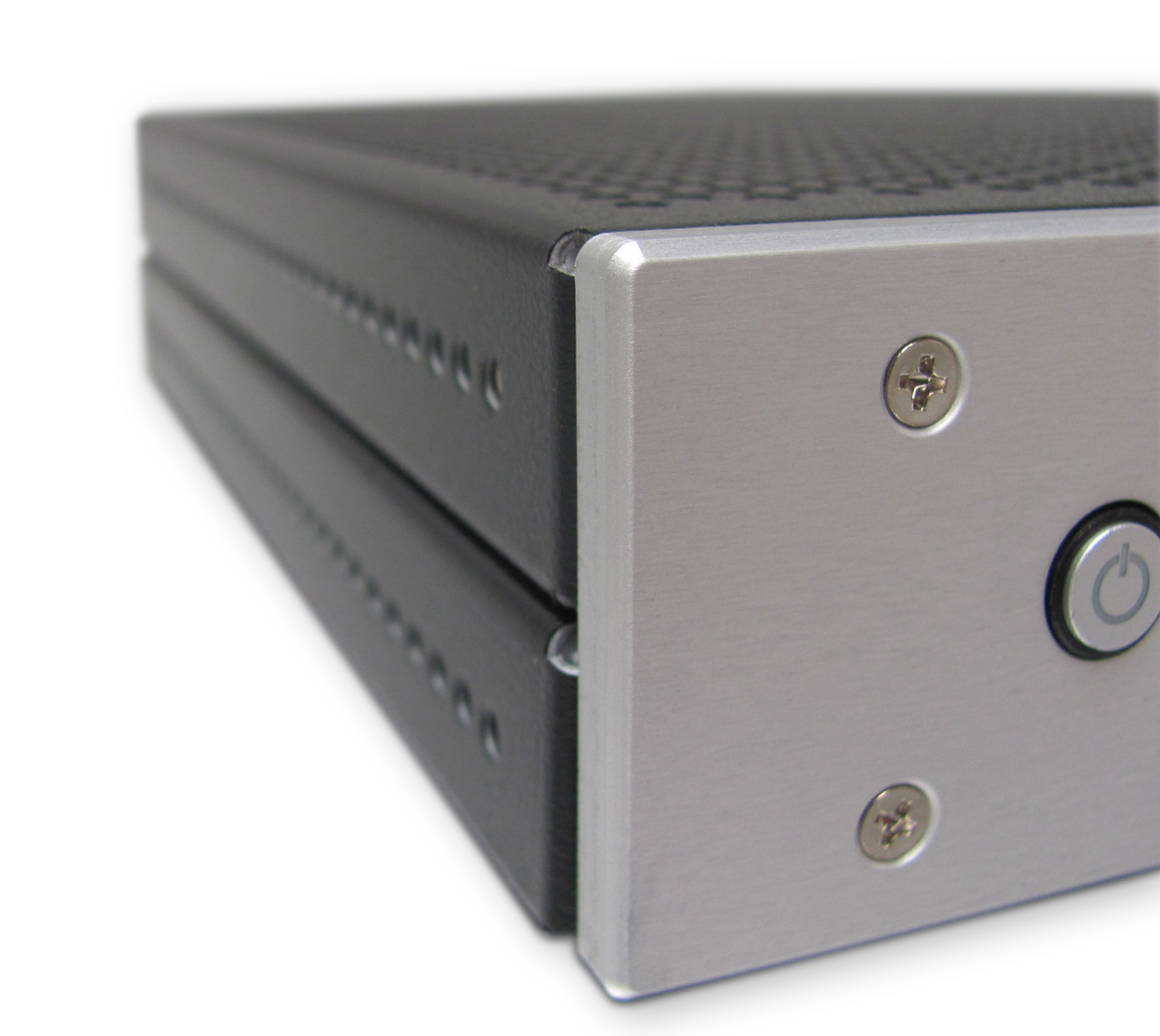

  • Galvanized metal sheet chassis, ALU front panel (bended or milled) with custom logo (silk print or laser), color black / white / silver, size 192 × 203 × 45mm
  • Operating temperature range endurance: 0~50°C with active fan
  • Vesa / Wall mounting options
